Disturbance report
Record no. N
Record no. N+1 Record no. N+100
General dist.
Information & Setting
infotrmation
Indications
Trip
values
Event
recordings
Disturbance
recording
Fault locator
Event list
IEC05000125-2-en.vsdx
IEC05000125 V2 EN-US

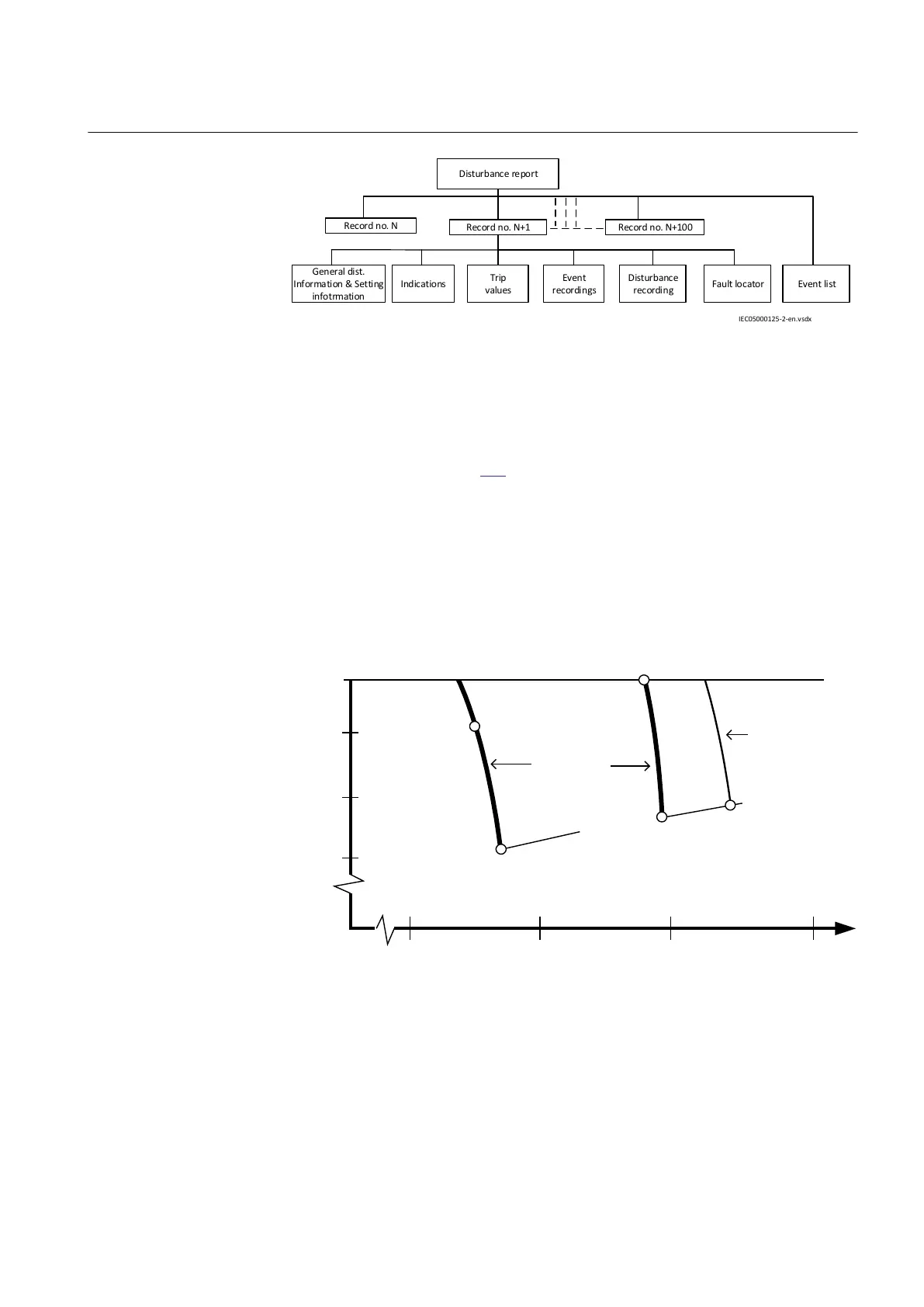

Figure 285: Disturbance report structure
Up to 100 disturbance reports can be stored. If a new disturbance is to be recorded
when the memory is full, the oldest disturbance report is overwritten by the new
one. The total recording capacity for the disturbance recorder is depending of
sampling frequency, number of analog and binary channels and recording time and
settings information. Figure
286 shows the number of recordings versus the total
recording time tested for a typical configuration, that is, in a 50 Hz system it is
possible to record 100 where the average recording time is 3.4 seconds. The
memory limit does not affect the rest of the disturbance report (Event list (EL),
Event recorder (ER), Indications (IND) and Trip value recorder (TVR)).
100
400 s
350300
40
60
80
40 analog
96 binary
20 analog
96 binary
3,4 s
6,3 s
6,3 s
60 Hz
50 Hz
6,3 s
3,4 s
250
Total recording time
Number of recordings
en05000488.vsd
IEC05000488 V1 EN-US
Figure 286: Example of number of recordings versus the total recording time
