170 Chapter 7
Setting Up the Display of Measurement Results
Manual Scale Setting (for measurements other than COMPLEX Z-Y)

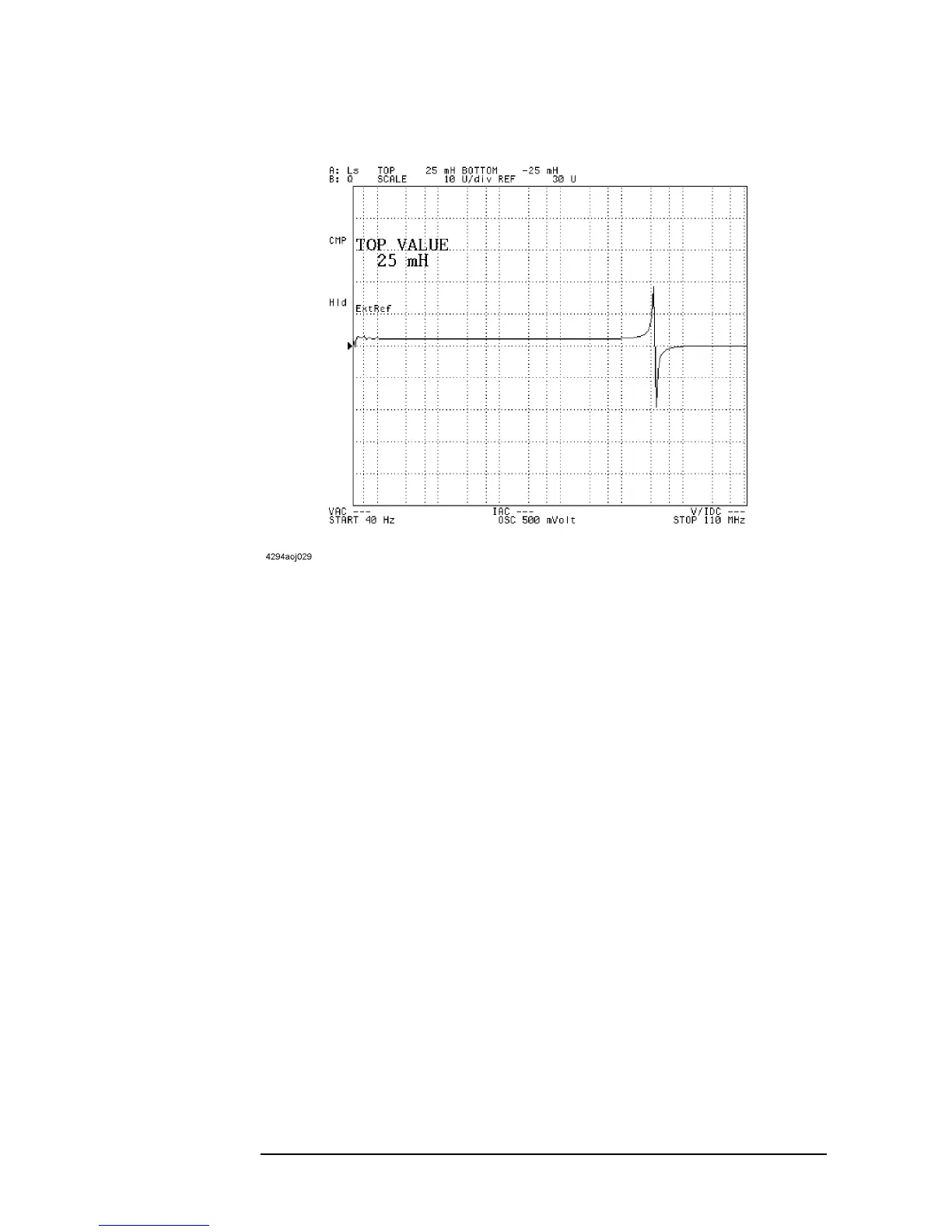

Figure 7-10 Setting the top value
Step 5. Press the
BOTTOM VALUE value. The Parameter Setting field in the upper left area of the
screen indicates the bottom value currently in effect, that is, the value that corresponds to
the line displayed at the bottom of the graph.
Step 6. Use the keys or rotary knob of the ENTRY block in one of the following ways to specify
the bottom value.
• Enter the desired value with the numeric keys (
[0] to [9] and [.]) and then press one of
the unit keys (
[G/n], [M/m], [k/m], or [´1]).
• Turn the rotary knob (
m
mm
m) until the desired value is set.
• Press the step keys ([][¯]) to set the desired value.
