40 Chapter 2
Learning Operation Basics
Carrying Out Measurement and Viewing Results

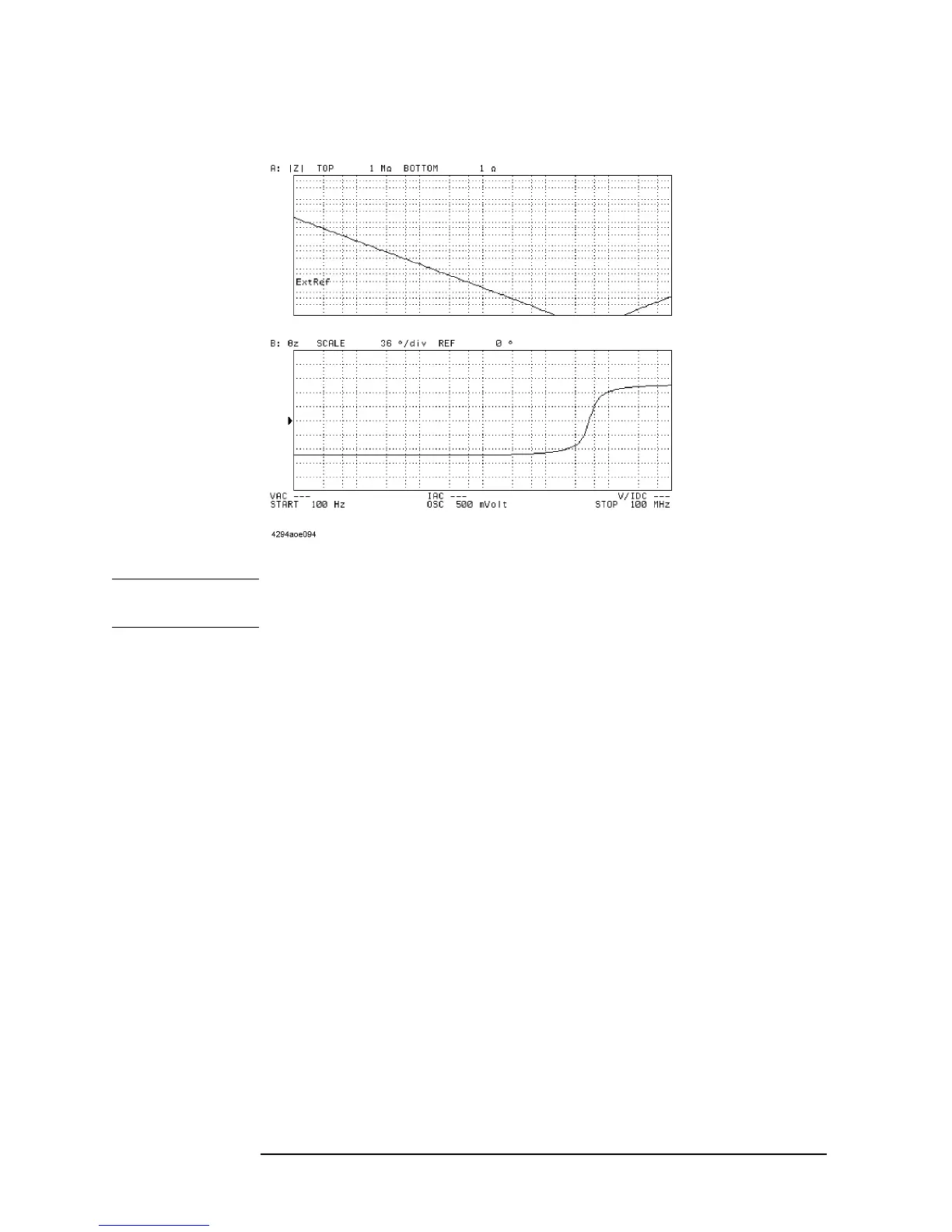

Figure 2-7 Displaying Traces A and B in Parallel
NOTE You do not need to check which trace is active when you split the screen because this
setting is applied to both Traces A and B.
Auto-scale the |Z| Trace
Step 1. Press the [A] key to activate Trace A.
Step 2. Press the [Scale Ref] key to display the Scale Reference menu.
Step 3. Press the
AUTO SCALE key to auto-scale the trace for |Z|.
Auto-scale the q Trace
Step 1. Press the [B] key to activate Trace B.
Step 2. Press the
AUTO SCALE key to auto-scale the trace for q.
