328 Chapter 10
Specifications and Supplemental Performance Characteristics
Basic Characteristics

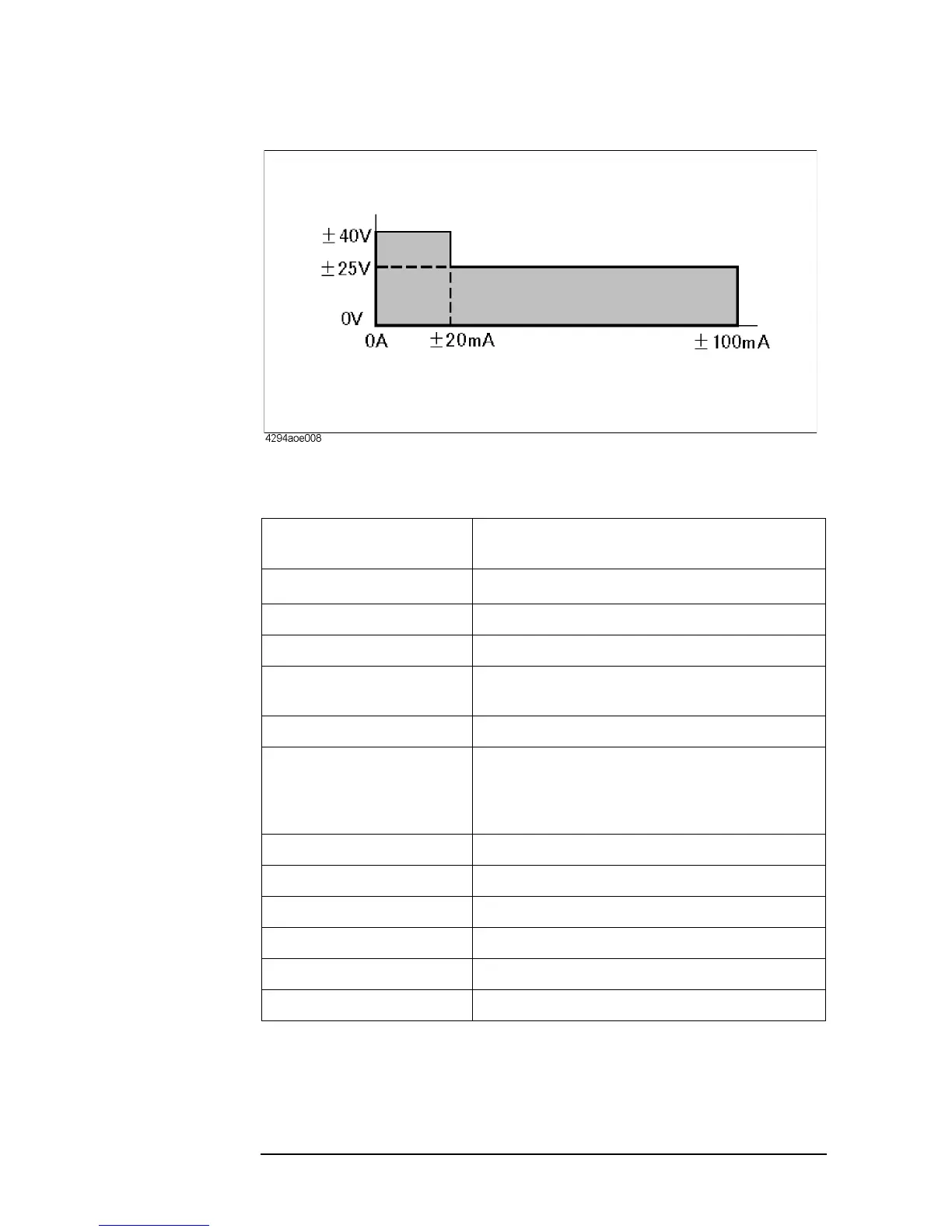

Figure 10-1 dc Bias Range (SPC)
Sweep Characteristics
Available sweep parameters Frequency, signal voltage, signal current, dc bias
voltage, dc bias current
Sweep types
Linear, log
1
, list
1
, zero-span, manual
Manual sweep Available for all sweep types
Sweep directions Up-sweep, down-sweep
Number of measurement
points
2 to 801
List Sweep
Available setup
parameters for each segment
Sweep frequency range, number of measurement
points, signal level (voltage or current), dc bias
(voltage or current), measurement bandwidth, point
averaging factor
Number of segments 1 to 18
Sweep span types Segment span, single span
Delay time
Types Point delay, sweep delay
Range 0 to 30 sec
Resolution 1 msec
1. Frequency sweep only.
