Chapter 2 31
Learning Operation Basics
Preparing for a Measurement
2. Learning Operation Basics
Preparing for a Measurement
Prepare the Agilent 4294A for measurement by taking the following steps. This procedure
assumes that the Agilent 4294A has been correctly installed and set up as described in
Chapter 1 , “Installation,” on page 17.
Connect the Agilent 16047E Test Fixture
Connect the Agilent 4294A to the Agilent 16047E Test Fixture for Lead Components.
Step 1. Attach the 16047E test fixture to the test connectors on the front panel of the Agilent
4294A by gradually coupling the four BNC connectors and fastening screws of the fixture
with the test connectors and accessory mounting holes of the instrument until they are in
complete contact.
Step 2. Fasten two of the four BNC connectors to the corresponding test connectors by gradually
turning the BNC connectors' rotation levers until each pair of connectors is securely
connected. Be sure to align the grooves on both sides.
Step 3. Simultaneously turn the fixture's two fastening screws clockwise so that the fixture is
secured to the instrument.
Step 4. Finally, secure the remaining two BNC connectors of the fixture by turning their rotation
levers clockwise.

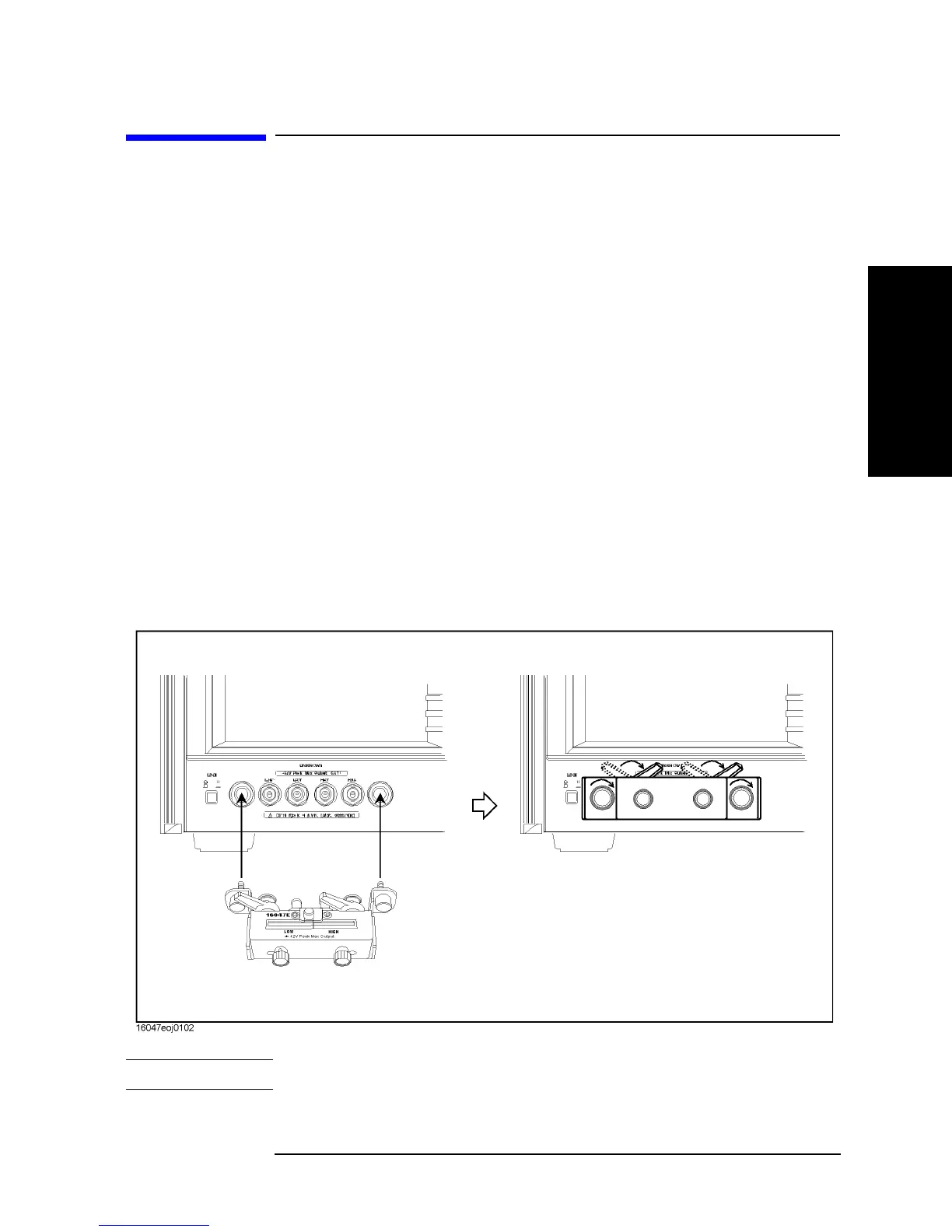

Figure 2-2 Connecting the Agilent 16047E Test Fixture
NOTE Reverse the above procedure when removing the Agilent 16047E Test Fixture.
