Setting Up the Display of Measurement Results
Splitting the Graph
Splitting the Graph
You can split the display into upper and lower halves so that Traces A and B are each
displayed on a separate graph. To split the display, follow these steps:
Step 1. Press the
[Display] key to display the first page of the Display menu.
Step 2. Press the
SPLIT on OFF (or SPLIT ON off) key to turn on or off the split display feature
(pressing the key toggles your selection).

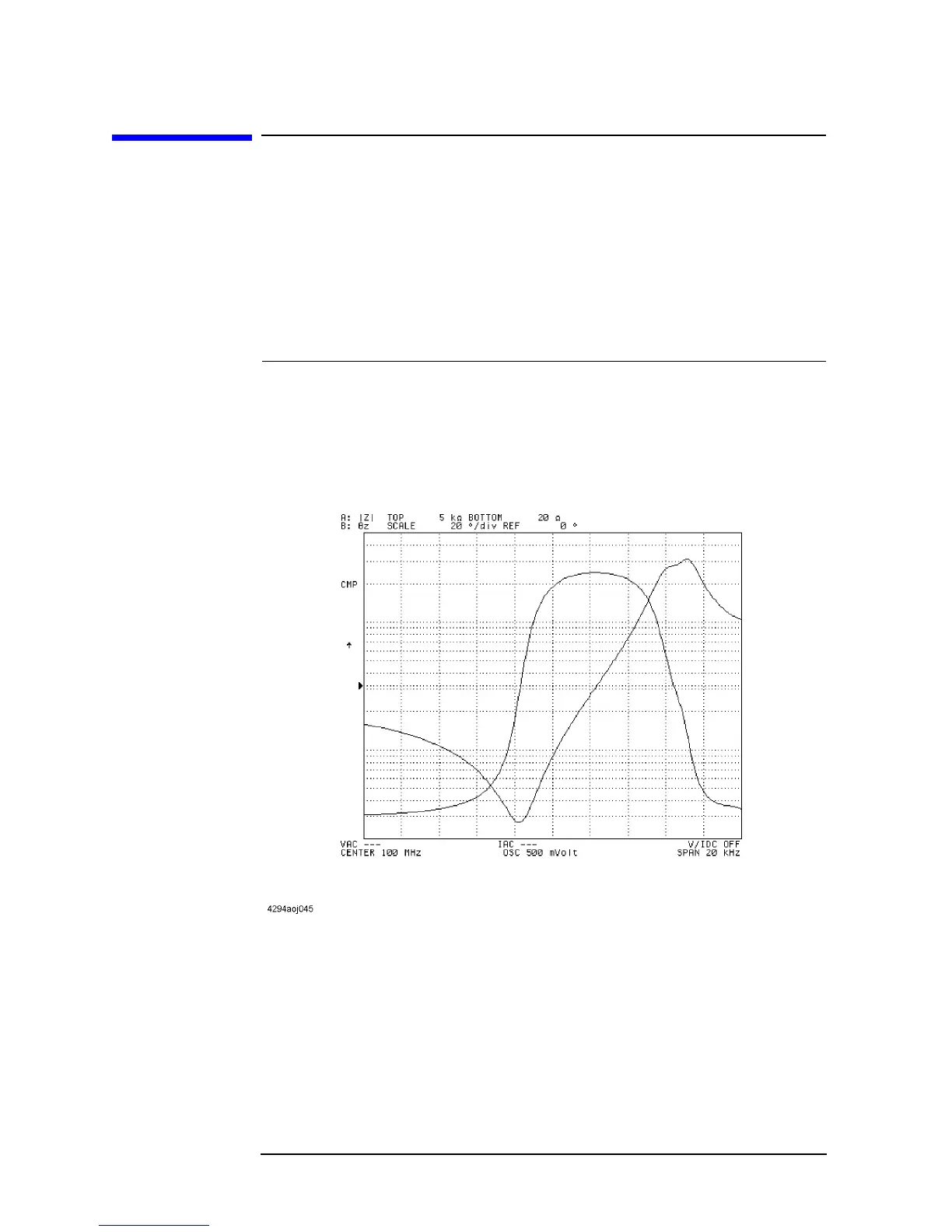

Figure 7-29 Traces A and B with split display disabled
Softkey Labels Description
SPLIT ON off Indicates that the split display feature is
enabled.
SPLIT on OFF Indicates that the split display feature is
disabled.
