38 Chapter 2
Learning Operation Basics
Carrying Out Measurement and Viewing Results

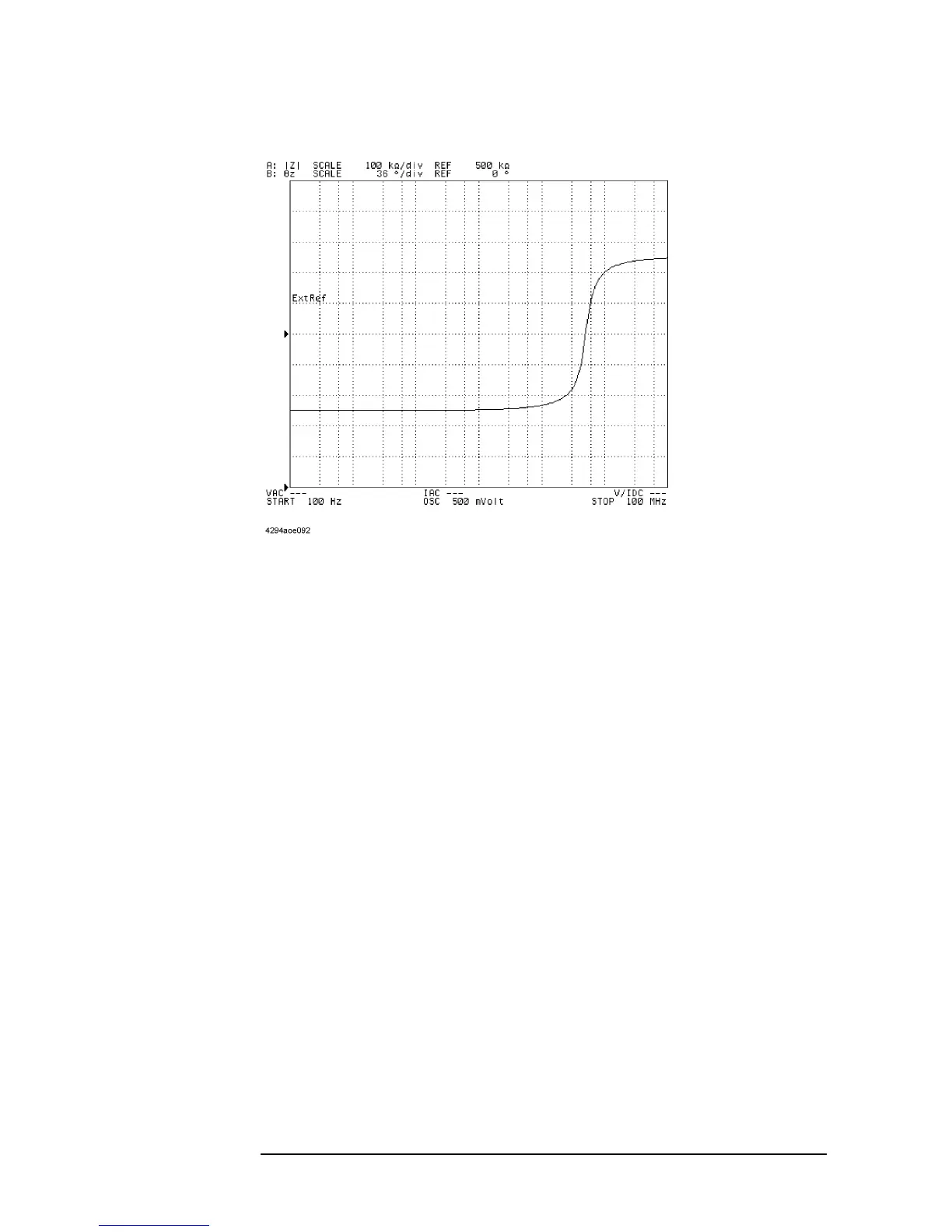

Figure 2-5 Measurement results displayed just after connecting the DUT
Apply the Logarithmic Format to the Vertical Axis for |Z|
Step 1. Make sure that Trace A is selected as the active trace (Trace A is active by default in the
preset state).
Step 2. Press the
[Format] key to display the Display Format menu.
Step 3. Press the
LOG key to make the graph's vertical axis logarithmic.
Apply the Linear Format to the Vertical Axis for q
Step 1. Press the [B] key to activate Trace B.
Step 2. Make sure that the graph's vertical axis is in the linear format with the
LIN key selected
(this setting is selected by default in the preset state).
