Front/Rear Panel and LCD Display
Items Displayed on the LCD
3. Front/Rear Panel and
LCD Display
Items Displayed on the LCD

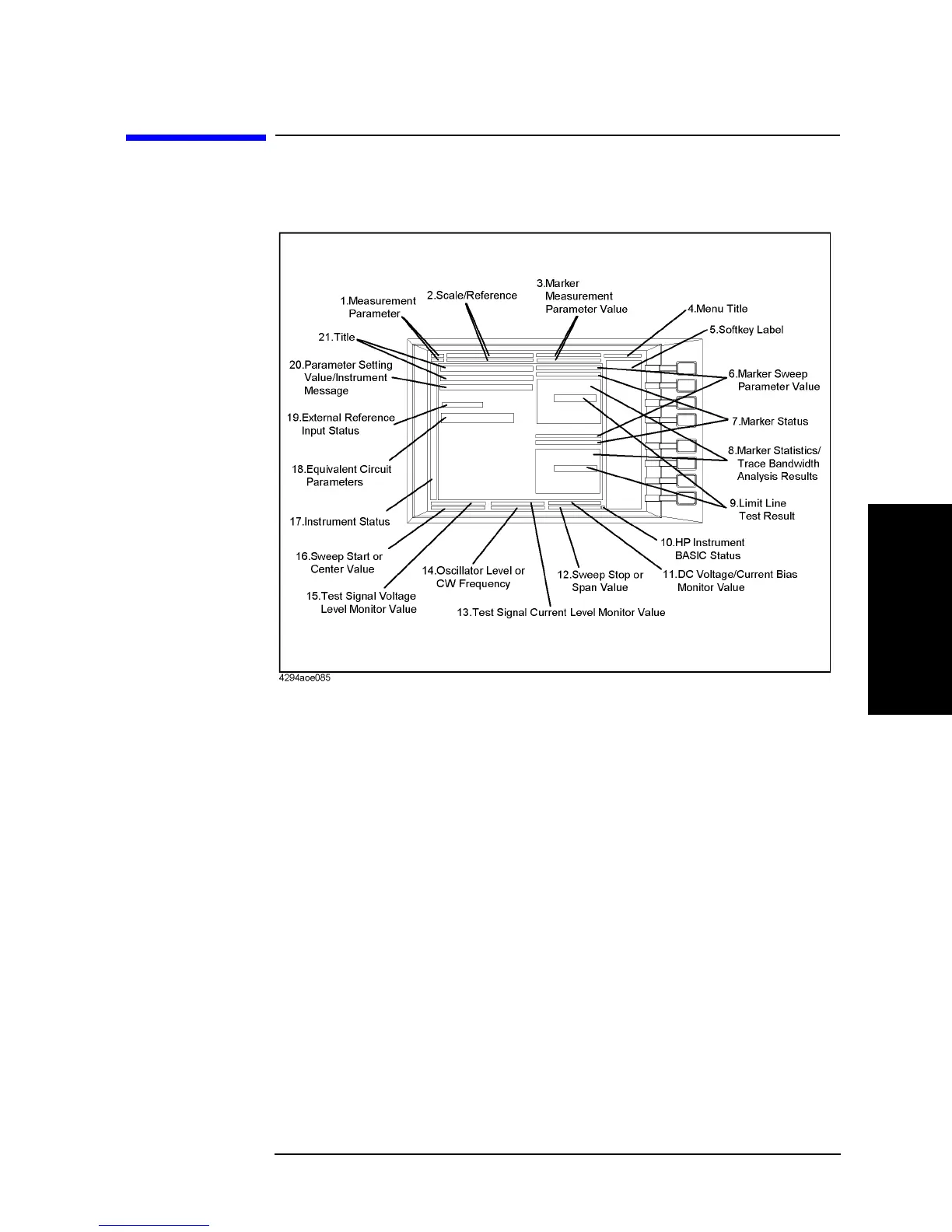

Figure 3-3 Items displayed on the LCD (with split display mode off and full-screen mode on)
1. Measurement Parameter Fields
Each of these fields show the currently selected measurement parameters for either Trace
A or B.
2. Scale/Reference Fields
These fields show the current scale settings for Traces A and B.
3. Marker Measurement Parameter Value Fields
These fields show the measurement parameter values that correspond to the current marker
position for Traces A and B.
4. Menu Title Field
This field shows the name of the current softkey menu, which consists of up to 8 softkey
labels.
