350 Chapter 10
Specifications and Supplemental Performance Characteristics
General Characteristics

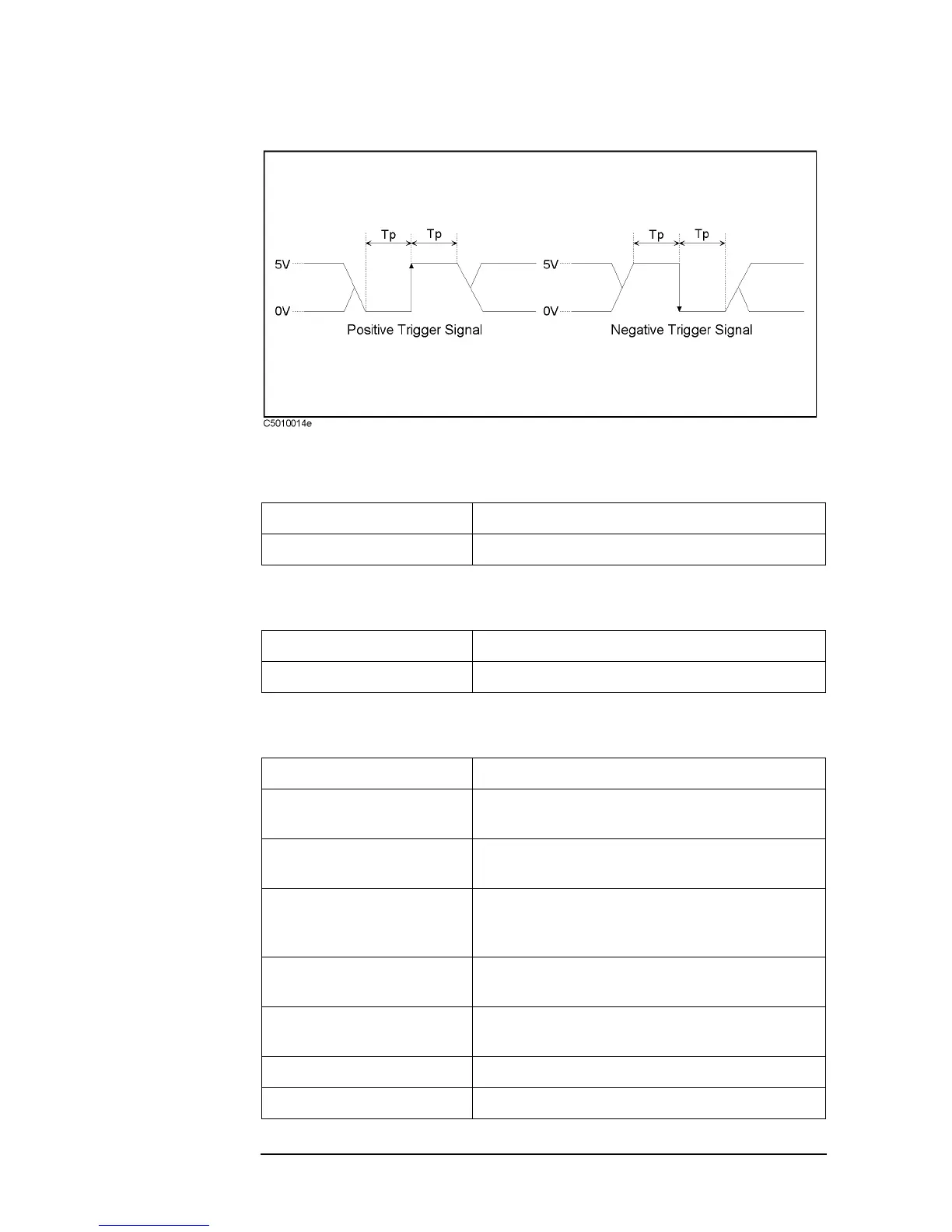

Figure 10-9 Required Pulse Width (Tp) for External Trigger Input
External Program RUN/CONT Input
External Monitor Output
Operating Conditions
Level TTL
Connector type BNC (female)
Connector type D-SUB, 15-pin HD
Display resolution (pixels) 640 ´ 480 (VGA)
Temperature
Disk drive
non-operating condition
0°C to 40°C
Disk drive
operating condition
10°C to 40°C
Humidity (at wet bulb
temperature £ 29°C, without
condensation)
Disk drive
non-operating condition
15% to 95% RH
Disk drive
operating condition
15% to 80% RH
Altitude 0 m to 2,000 m
Warm up time 30 minutes
