Listing data at several points on the trace
8. Analysis and Processing
of Result

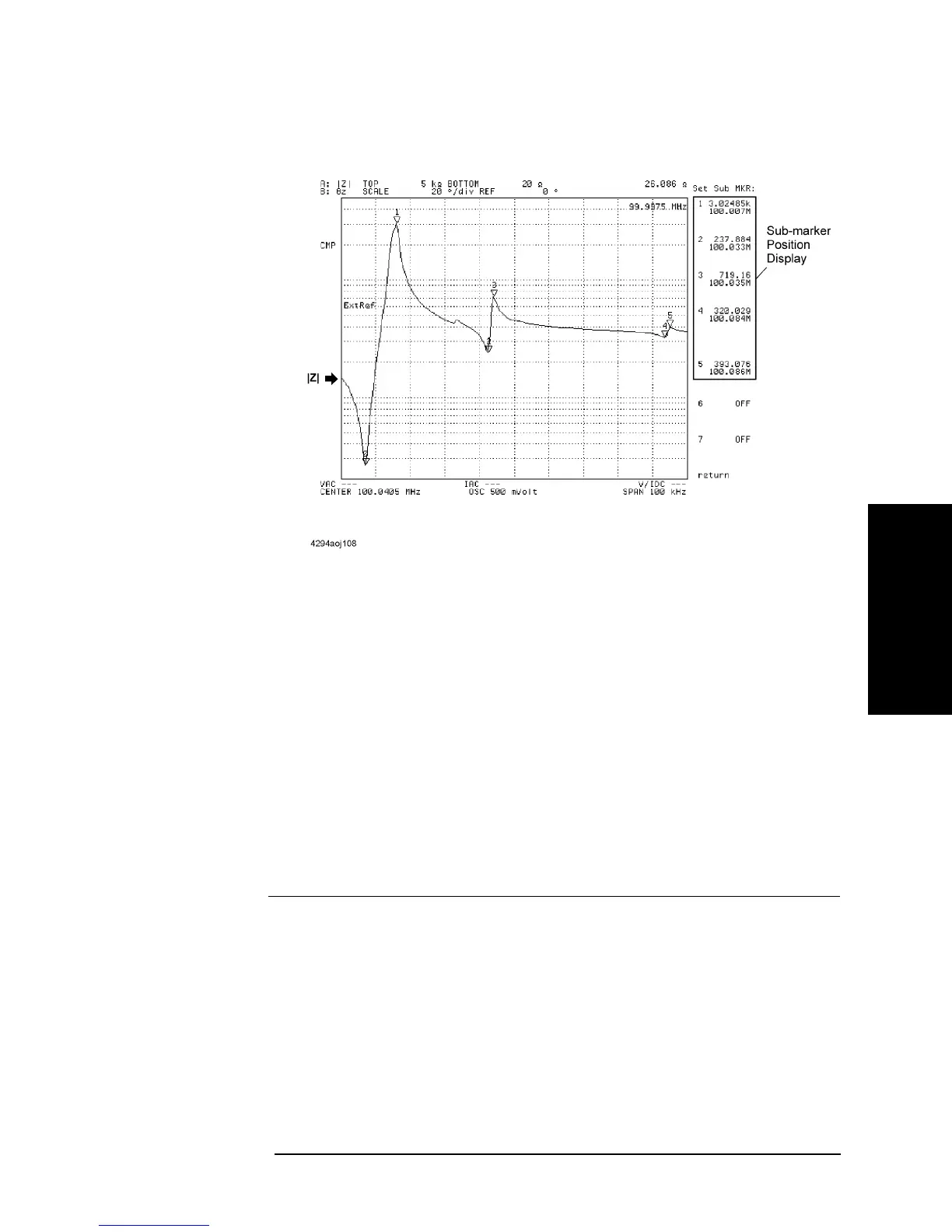

Figure 8-2 Displaying the marker positions using the softkey labels of the sub-markers
Listing the marker positions with the marker list function
The marker position display provided by the softkey labels in the Sub-Marker Setting
menu may not be usable if you want to show the display at all times because the softkey
display changes depending on the keys you operate. In this case, you can use the marker
list function.
After performing the steps in“Displaying several marker positions using softkey labels” on
page 214, follow these steps:
Step 1. Press the
[Utility] key to display the Utility menu.
Step 2. Press the MKR LIST on OFF key to turn on the marker list function. When the marker list
function is turned on, the measured graph is displayed in the upper half of the screen and
the positions of all the markers on the trace are listed in the lower half of the screen.
Softkey label State of marker list function
MKR LIST ON off On (the positions of the markers on the trace are listed
in the lower half of the screen)
MKR LIST on OFF Off
To Next Page
