216 Chapter 8
Analysis and Processing of Result
Listing data at several points on the trace

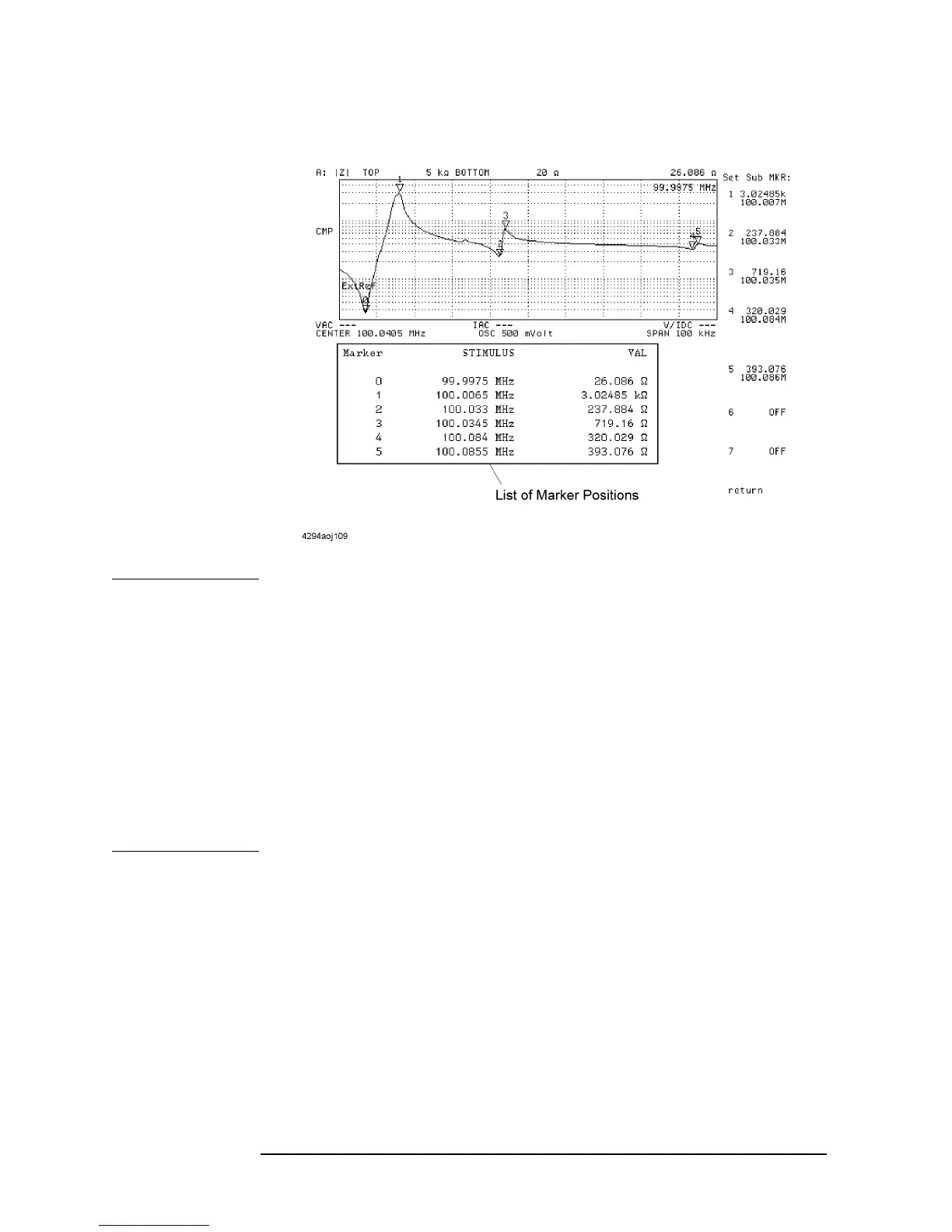

Figure 8-3 Listing marker positions with the marker list function
NOTE If “Use the upper and lower halves of the screen for analyzer functionality and HP
Instrument BASIC, respectively” has been selected as the setting of the assignment of the
HP Instrument BASIC screen, turning on the marker list function does not display the
measured graph but instead the marker list in the upper half of the screen and the HP
Instrument BASIC screen in the lower half of the screen. For how to set the assignment of
the HP Instrument BASIC screen, refer to “Configuring the Screen Assignments for HP
Instrument BASIC” on page 202.
When the marker list function is on, you cannot turn on/off the split display of the
measured graph. For more information on splitting the display of the measured graph, refer
to “Splitting the Graph” on page 200.
When the marker list function is on, if you turn off all markers by following the procedure
of “Turning off all (main/sub/delta) markers at one time” on page 248, the marker list
function is also turned off automatically.
