Chapter 6 135
Calibration
B. Calibration for Four-Terminal Pair, 1-m Extension
6. Calibration
B. Calibration for Four-Terminal Pair, 1-m Extension
This section describes the calibration procedures to follow when the four-terminal pair port
of the Agilent 4294A is extended with a 1-meter-long four-terminal pair configuration and
the device is connected to the cable’s end with a minimal connection.

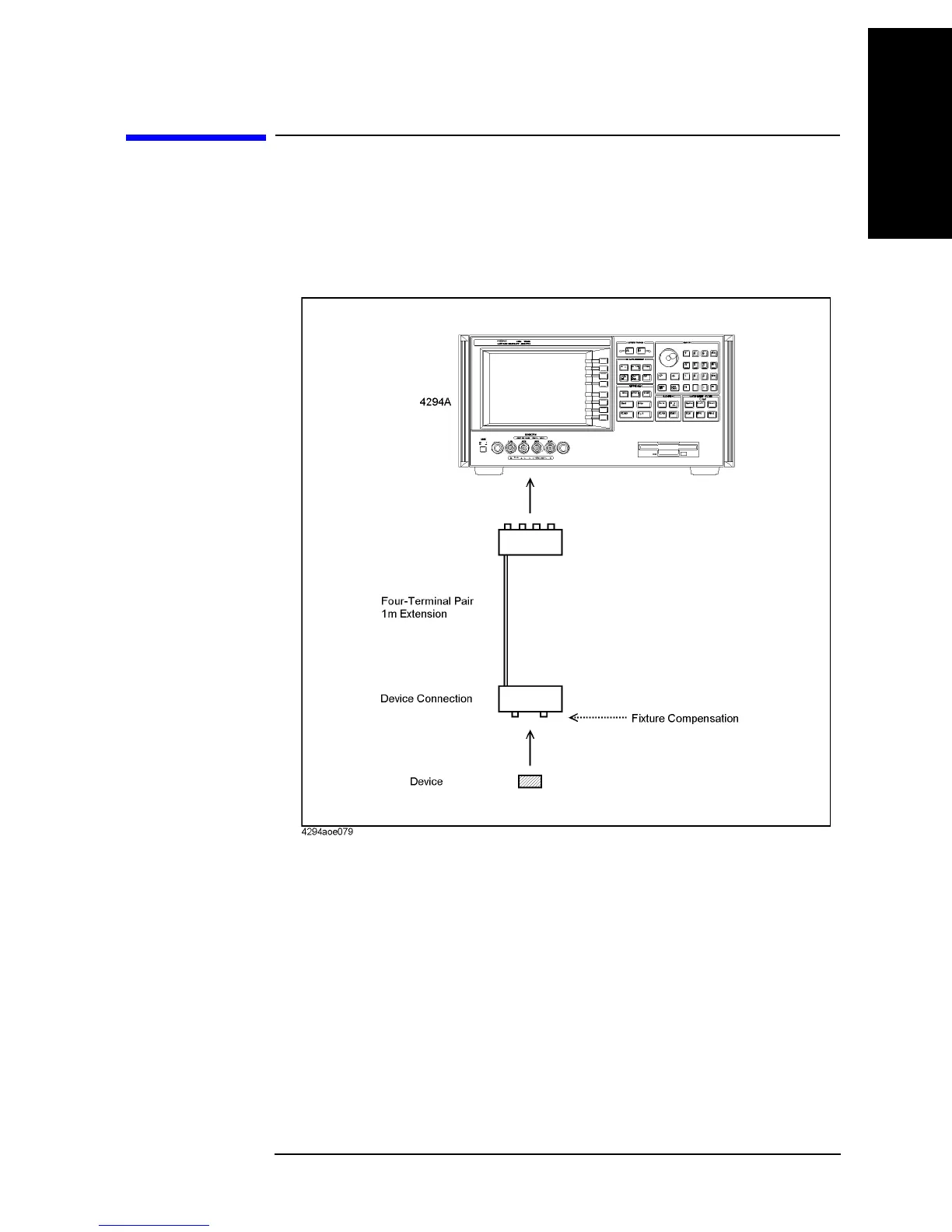

Figure 6-2 Calibration for Four-Terminal Pair, 1-m Extension
This calibration procedure is applied to the following connections:
• The 16048G (1-m Cable) is connected to the Agilent 4294A and the device is
connected to the cable’s end with a test fixture.
• The 16048G (1-m Cable) is connected to the Agilent 4294A and the 16452A (Liquid
Test Fixture) is connected to the end of the cable.
• The 16334A (Tweezer Type Test Fixture) is connected to the Agilent 4294A.
• The 16451B (Dielectric Test Fixture) is connected to the Agilent 4294A.
Step 1. Make sure that the adapter selection is set to “Four-terminal pair, 1-meter (
4TP 1M).”
See “Adapter Setting” on page 67 for adapter selection.
Step 2. Perform the fixture compensation in accordance with “Fixture Compensation” on page
To Next Page
