Chapter 7 175
Setting Up the Display of Measurement Results
Manually Scaling the Active Trace for a COMPLEX Z-Y Graph
7. Setting Up the Display of
Measurement Results

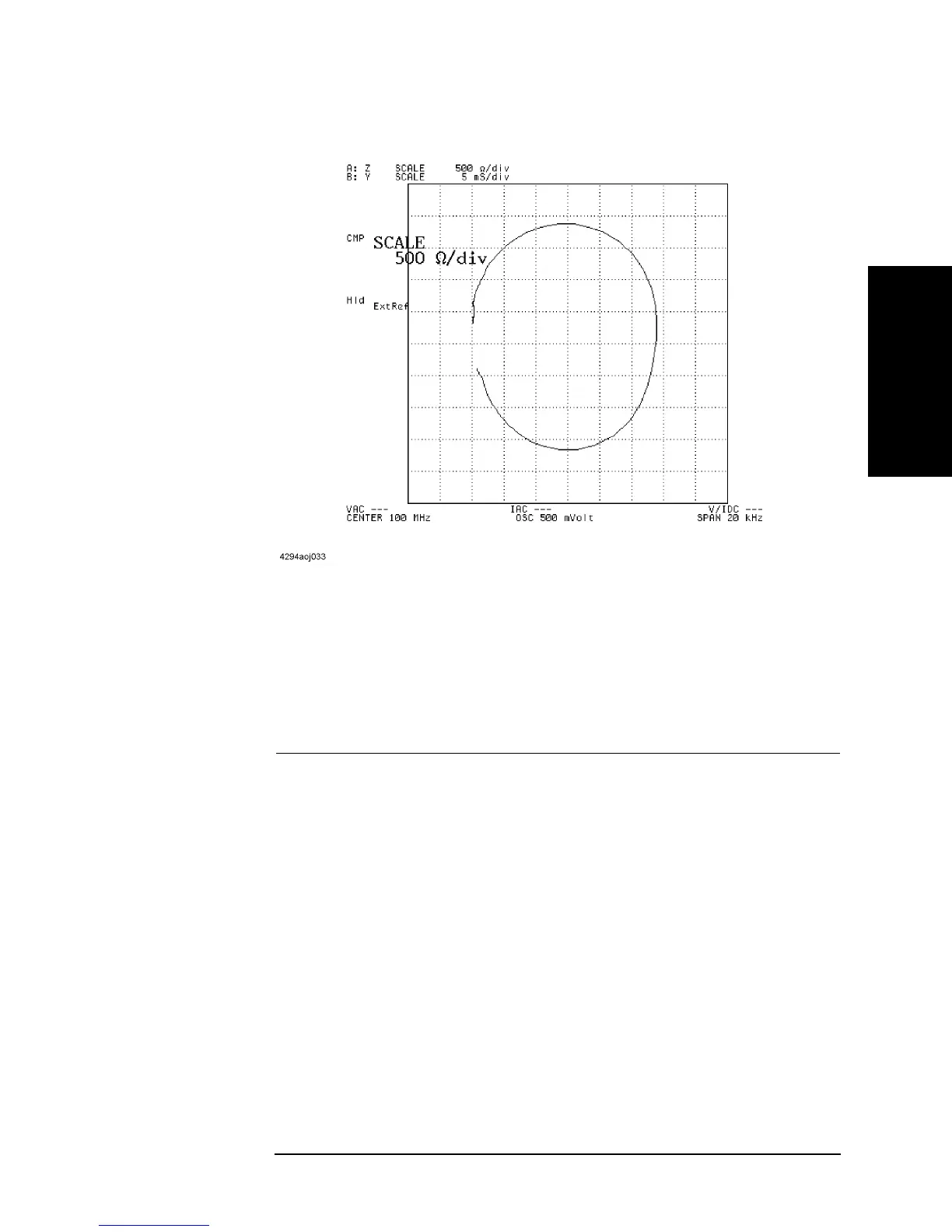

Figure 7-14 Setting the scale per division for a complex plane (for measuring complex impedance)
Scaling the Active Trace for a Polar Chart
When your graph is a polar chart, you can scale the active trace by specifying the full scale
value, that is, the distance from the origin to the outermost circle.
Step 1. Activate the trace you want to manually scale.
Step 2. Press the
[Scale Ref] key to display the Scale Reference menu.
Step 3. Press the FULL SCALE VALUE key. The Parameter Setting field in the upper left area of
the screen indicates the full scale value currently in effect.
Step 4. Use the keys or rotary knob of the ENTRY block in one of the following ways to specify
the full scale value.
• Enter the desired value with the numeric keys (
[0] to [9] and [.]) and then press one of
the unit keys (
[G/n], [M/m], [k/m], or [´1]).
• Turn the rotary knob (m
mm
m) until the desired value is set.
• Press the step keys ([][¯]) to set the desired value.
To activate: Press:
Trace A
[A]
Trace B [B]
