174 Chapter 7
Setting Up the Display of Measurement Results

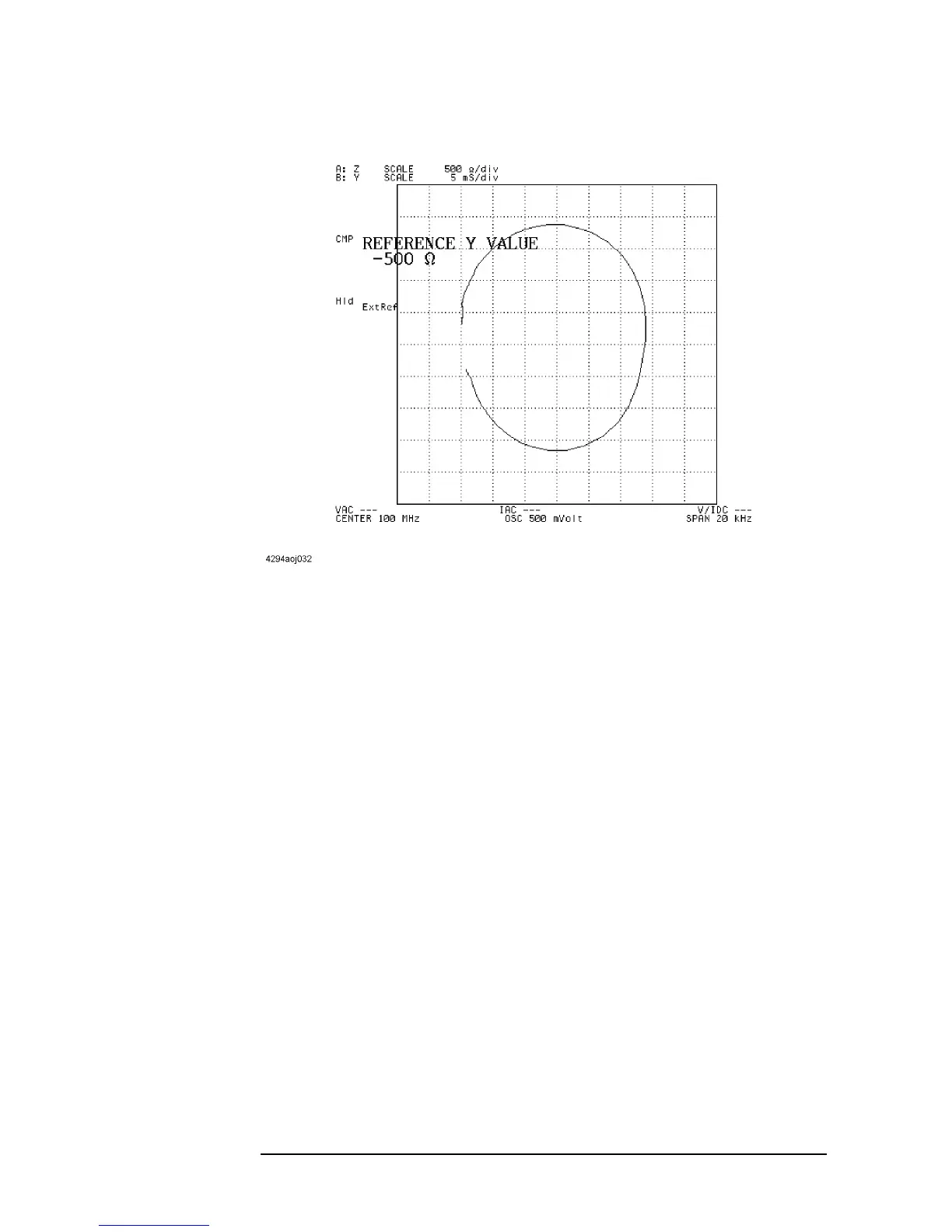

Manually Scaling the Active Trace for a COMPLEX Z-Y Graph
impedance)
Step 7. Press the
SCALE/DIV key. The Parameter Setting field in the upper left area of the screen
indicates the scale per division currently in effect. For a complex plane, both the vertical
and horizontal axes use the same scale per division.
Step 8. Use the keys or rotary knob of the ENTRY block in one of the following ways to specify
the scale per division.
• Enter the desired value with the numeric keys (
[0] to [9] and [.]) and then press one of
the unit keys (
[G/n], [M/m], [k/m], or [´1]).
• Turn the rotary knob (
m
mm
m) until the desired value is set.
• Press the step keys ([][¯]) to set the desired value.
