Setting Up the Display of Measurement Results
Manually Scaling the Active Trace for a COMPLEX Z-Y Graph
7. Setting Up the Display of
Measurement Results

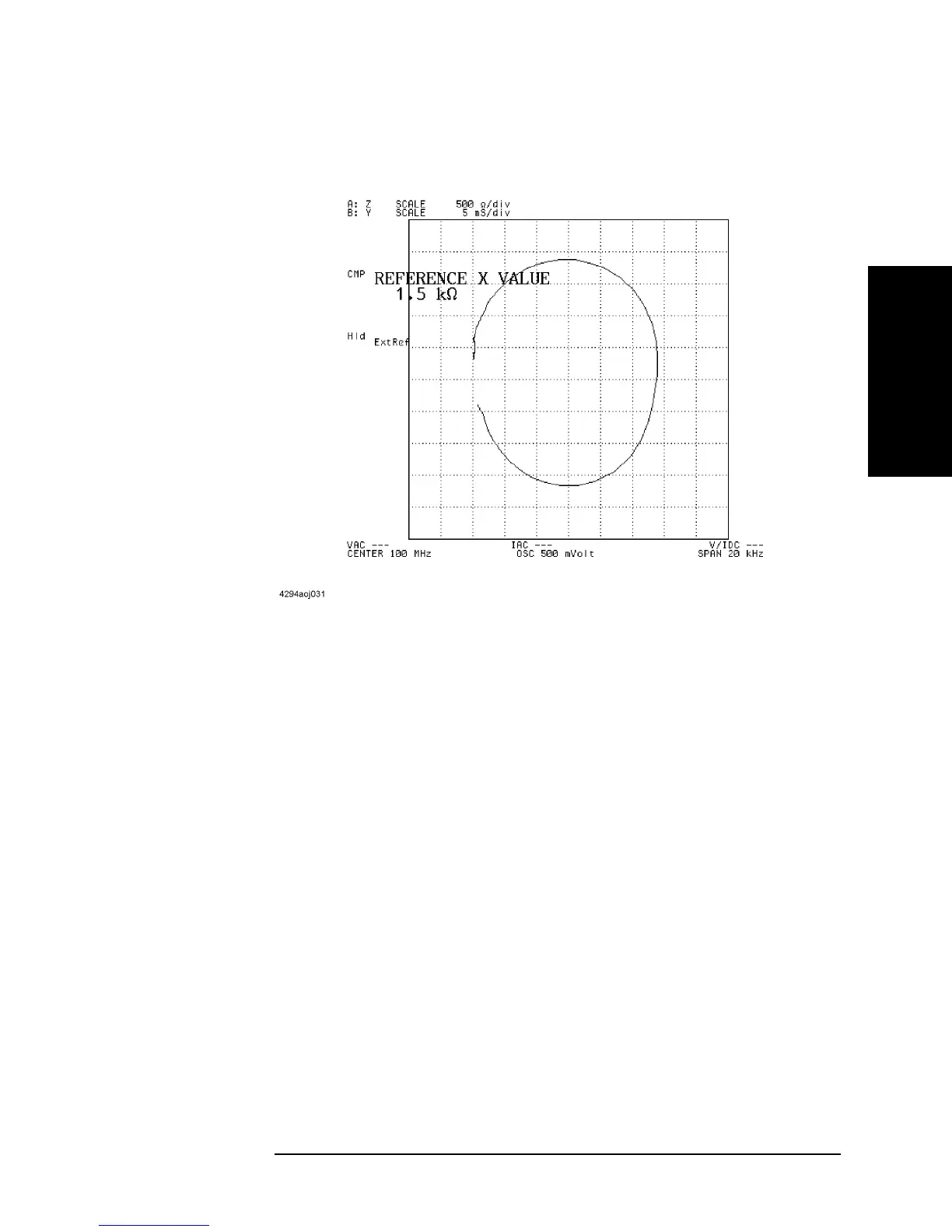

Figure 7-12 Setting the X-axis reference value for a complex plane (for measuring complex
impedance)
Step 5. Press the
REFERENCE Y VALUE key. The Parameter Setting field in the upper left area of
the screen indicates the reference value currently in effect for the vertical (Y) axis; this
value is a complex value. The reference line for the vertical axis in a complex plane is
stationary in the center of the axis.
Step 6. Use the keys or rotary knob of the ENTRY block in one of the following ways to specify
the reference value for the vertical (Y) axis.
• Enter the desired value with the numeric keys (
[0] to [9] and [.]) and then press one of
the unit keys (
[G/n], [M/m], [k/m], or [´1]).
• Turn the rotary knob (
m
mm
m) until the desired value is set.
• Press the step keys ([][¯]) to set the desired value.
Figure 7-13 Setting the Y-axis reference value for a complex plane (for measuring complex
