206 Chapter 7
Setting Up the Display of Measurement Results
Adding a Title to the Measurement Screen

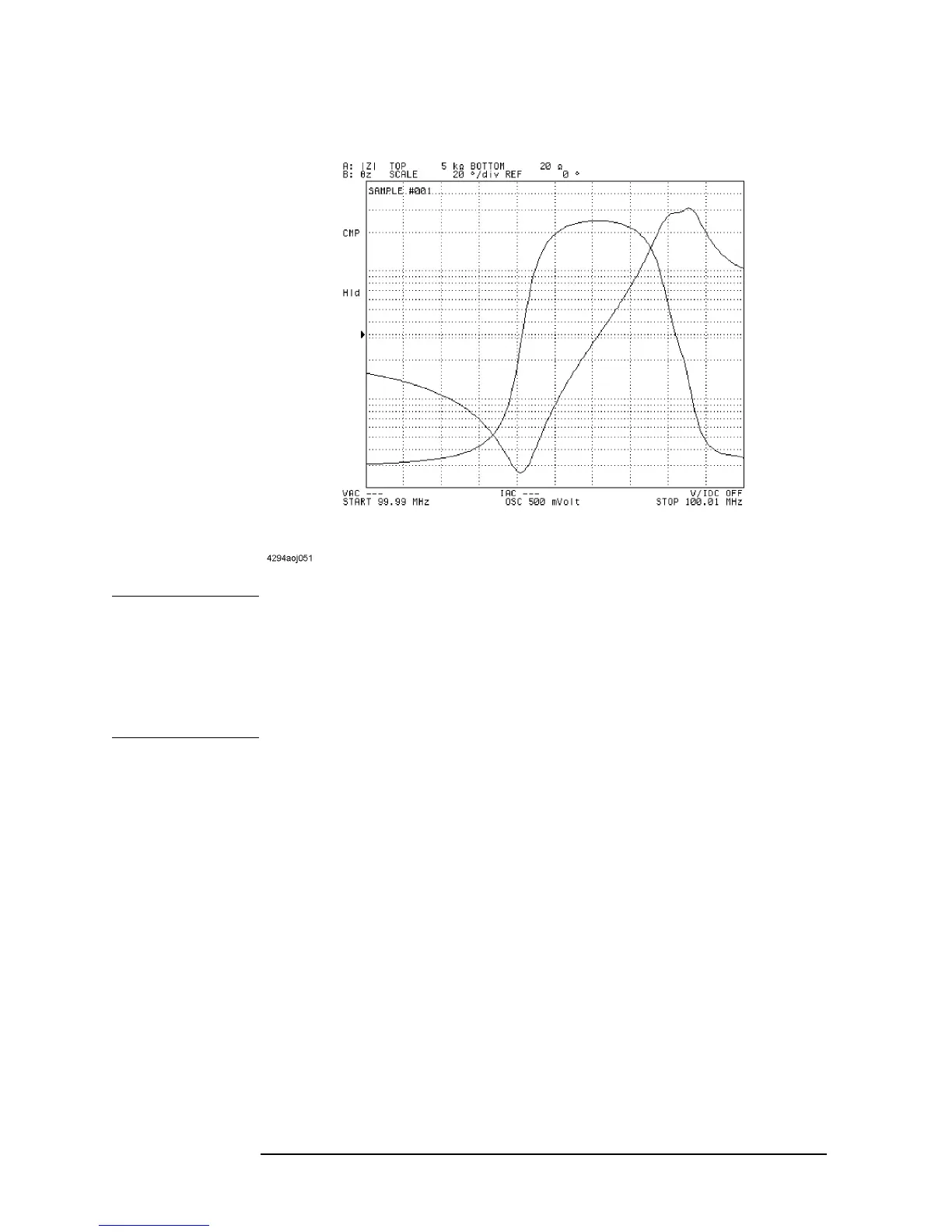

Figure 7-35 Adding a title to measurement screen
NOTE As a more convenient alternative, if your Agilent 4294A is equipped with an external
keyboard, you can enter a new title through the keyboard. When you finished entering a
new title, just press the
[Enter] key on the keyboard to save the title.
If you press the
cancel key to cancel your entry, any existing title remains in the title field.
To delete the existing title from the title field, activate the trace associated with the title and
then use the keystroke sequence: [Display] - more 1/2 - TITLE - CLEAR TITLE - done.
