Chapter 8 227
Analysis and Processing of Result
Search the point of target measurement
8. Analysis and Processing
of Result

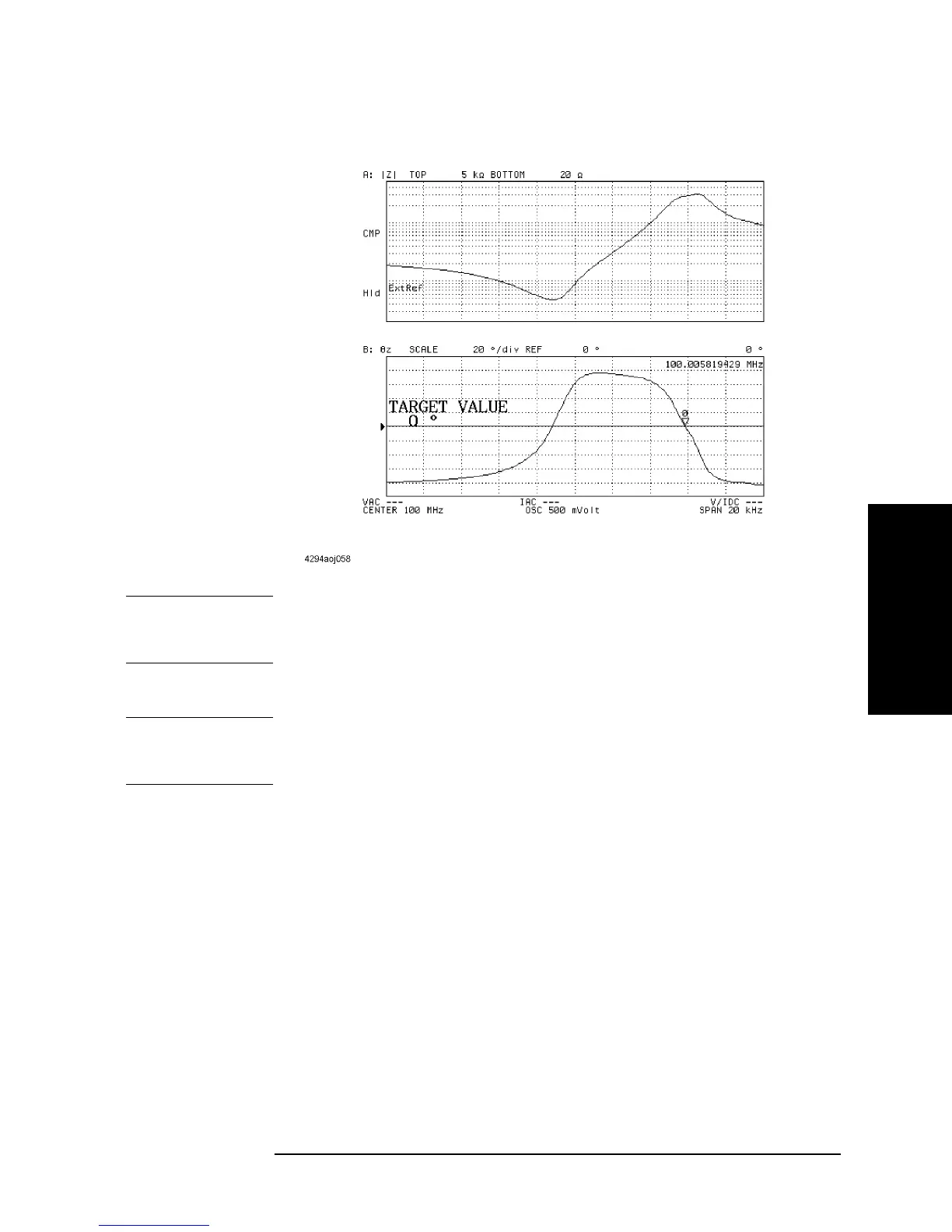

Figure 8-9 Right search after Figure 8-8
NOTE To place the sub-marker on the searched point, press the SUB MKR key located on the
same target menu to display the sub-marker setting menu. Then select the desired
sub-marker out of the seven sub-markers.
Step 6. Read the value displayed in the marker sweep parameter value field on the screen.
NOTE When the MAX, MIN, TARGET, or PEAK key is used for searching, one search is carried
out for the trace when the key is pressed. If the search tracking function is on, search is
executed every time a sweep is completed.
