Chapter 8 241
Analysis and Processing of Result
Analyze trace bandwidth
8. Analysis and Processing
of Result
Bandwidth Analysis Result area on the right of the screen.

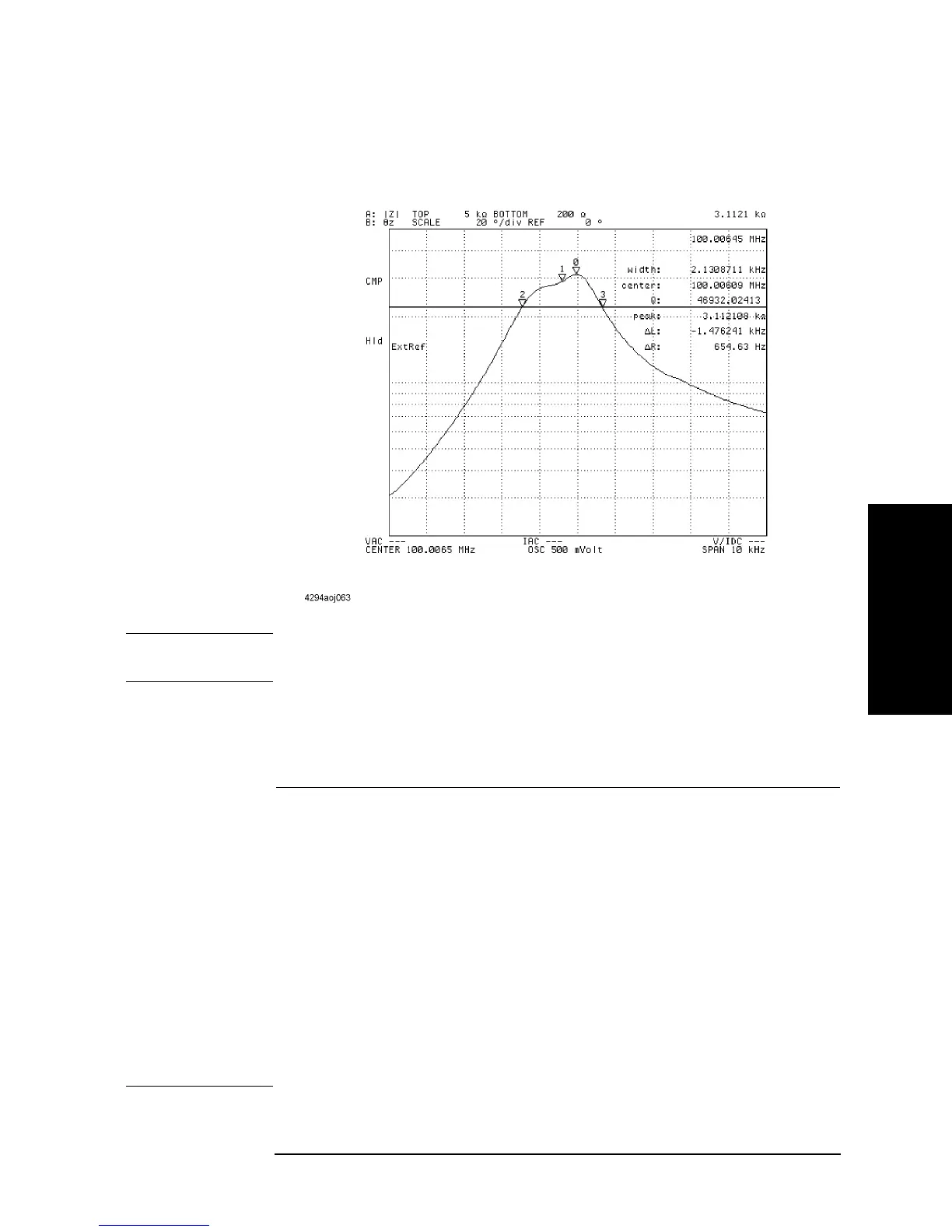

Figure 8-16 Trace bandwidth analysis result
NOTE If the trace bandwidth analysis function is turned on, the straight line showing the cutoff
line is displayed parallel to the sweep parameter axis.
Step 5. When the cutoff point searched is not the target, press the
WIDTH DEF MENU key to
display the trace bandwidth analysis definition menu, and use the following functions:
Press these softkeys several times if necessary to find the trace bandwidth analysis
parameter at the target cutoff point.
NOTE Cutoff point re-search does not cause the main marker to move, so it does not affect the
Cutoff point re-search function Key operation
Inner search (two different cutoff points are
searched for with respect to the two currently
displayed cutoff points toward the inside on
the sweep parameter axis, and each parameter
of trace bandwidth analysis is displayed for the
cutoff point detected first)
SEARCH IN
Outer search (two different cutoff points are
searched for with respect to the two currently
displayed cutoff points toward the outside on
the sweep parameter axis, and each parameter
of trace bandwidth analysis is displayed for the
cutoff point detected first)
SEARCH OUT
To Next Page
