Chapter 8 253
Analysis and Processing of Result
Calculate the equivalent circuit parameter and simulate the frequency
characteristics
8. Analysis and Processing
of Result
value field in the upper left area of the screen.
Step 10. Use the keys or rotary knob of the ENTRY block in one of the following ways to specify
the parameter value.
• Enter the desired value with the numeric keys (
[0] to [9], [-]and [.]) and then press one
of the unit keys (
[G/n], [M/m], [k/m], or [´1]).
• Turn the rotary knob (m
mm
m) until the desired value is set.
• Press the step keys ([][¯]) to set the desired value.
Step 11. Repeat Steps 9 and 10 to set all required equivalent circuit parameters.
Step 12. Press the
SIMULATE F-CHRST key to simulate frequency characteristics.
Step 13. Regardless of the on/off state of the equivalent circuit diagram display function, the
measurement trace is displayed on the screen. The frequency characteristics of the
equivalent circuit having the set equivalent circuit parameter are simulated and displayed
on the screen.

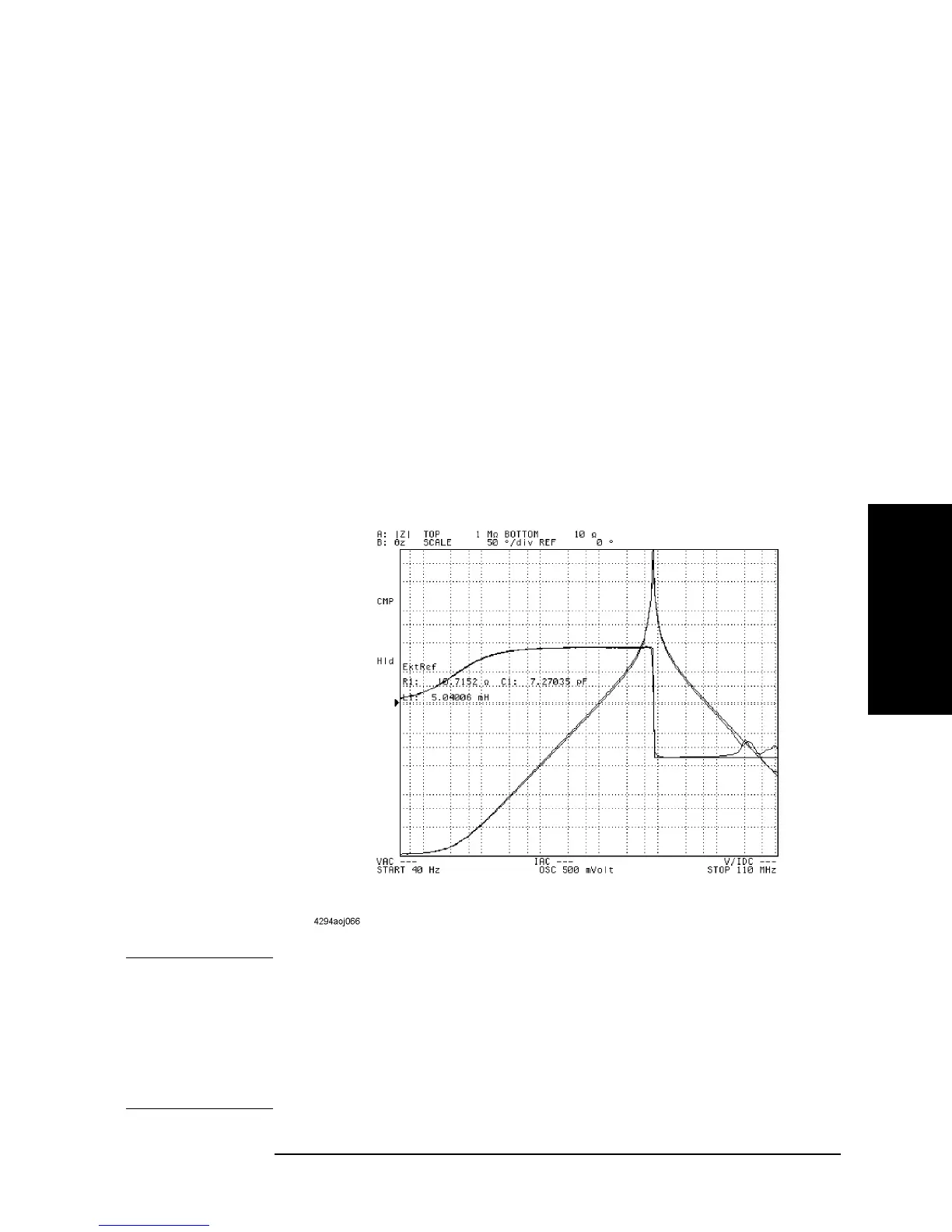

Figure 8-21 Simulation of equivalent circuit frequency characteristics (performed after the
calculation in Figure 8-20)
NOTE The result of simulating frequency characteristics is automatically stored in the memory
trace. At the same time, the
DATA and MEMORY keys in the Trace Definition menu
(display of both measurement data and memory storage) are selected. For the Trace
Definition menu, see the description of “Trace-based Comparison and Calculation” on
page 179.
Display of the equivalent circuit parameter on the measurement trace screen can be turned
on or off by the PARAMETERS ON off key (PARAMETERS on OFF key).
