298 Chapter 8
Analysis and Processing of Result
Print the measurement results and internal data with a printer

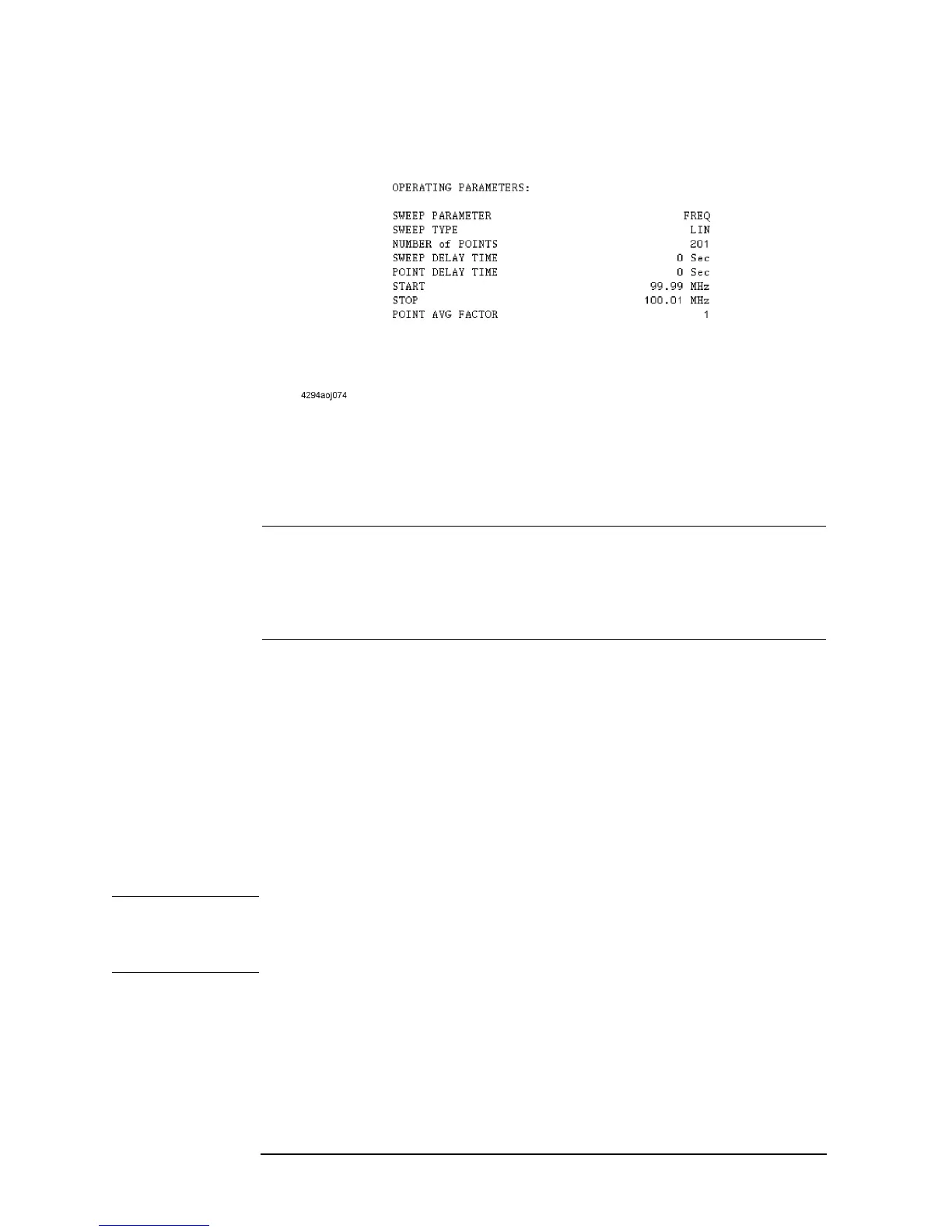

Figure 8-34 List of measurement conditions
Step 4. While checking the print contents displayed on the screen, select the time stamp and
display/print form.
Step 5. Press the
START key to start printing.
NOTE To suspend printing, press the ABORT key.
Press the
RESTORE DISPLAY key to restore the measurement/setting list back to the
normal screen.
Scroll the screen to check print contents. Key operation
Display the next page.
NEXT PAGE
Display the previous page. PREV PAGE
Set the display/print format Softkey label
Time stamp function during printing (printing
of time and date at the start of printing)
TIME ON off (ON)
TIME on OFF (OFF)
Display/print mode in the sweep range of list
sweep table segment
1
1. Only during printing of list sweep table
DISP MODE [STRT-STP] (Start/stop)
DISP MODE [CTR-SPAN] (Center/span)
Display/print mode in the limit range of limit
line table
2
2. Only during printing of limit line table
DISP MODE [UPR-LWR] (Upper/lower values)
DISP MODE [VAL-DLT] (Middle and
differential values)
To Next Page
