Chapter 10 341
Specifications and Supplemental Performance Characteristics
Basic Characteristics
10. Specifications and
Supplemental Performance
Characteristics
Examples of Calculated Impedance Measurement Accuracy

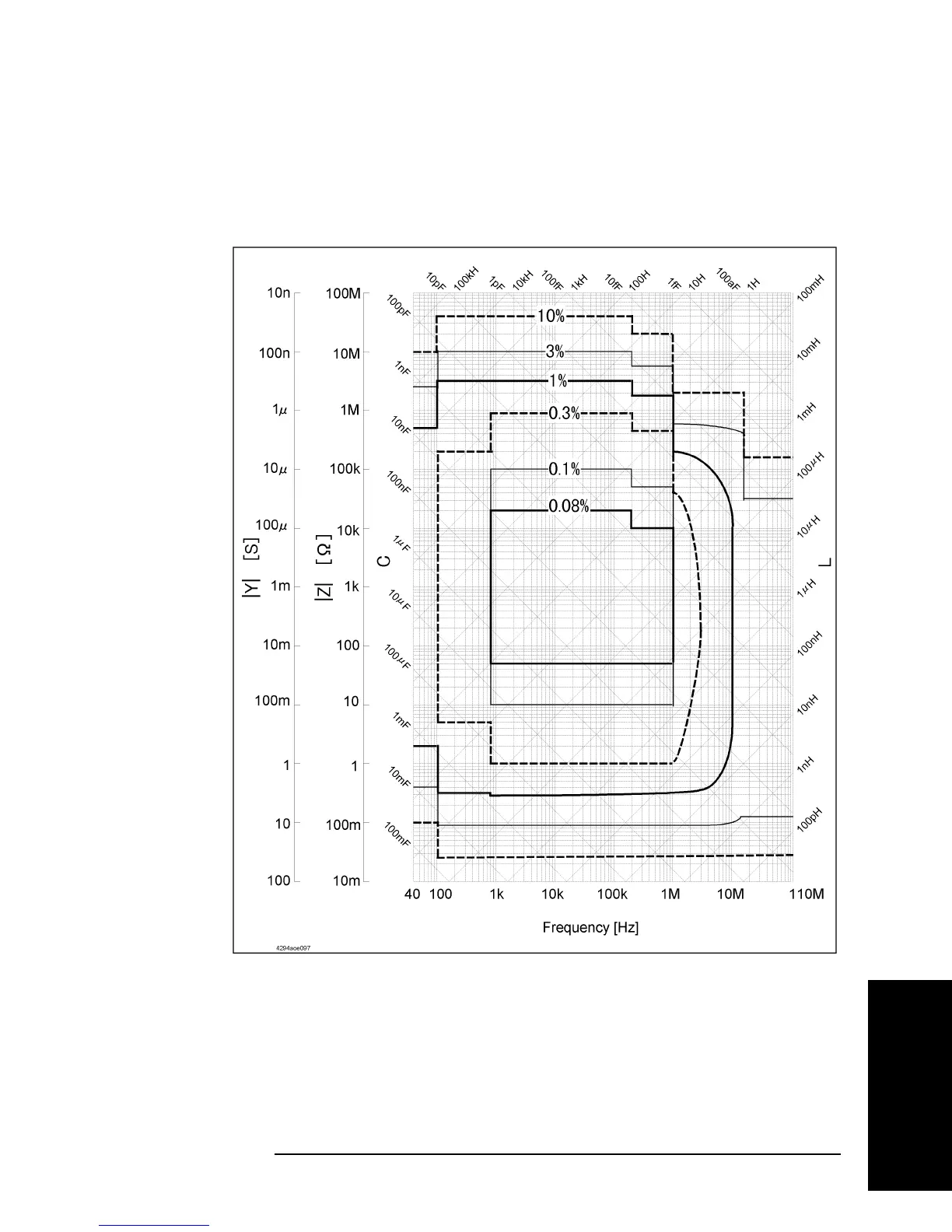

Figure 10-4 Impedance Measurement Accuracy at Four-terminal Pair Port of Agilent 4294A’s
Front Panel (Oscillator Level = 0.5 Vrms)
