ALCATEL REFLEXES 3G TERMINALSTERMINALS
Ed. 04 3/8Réf. 3EH 21000 BSAA
4097 CBL ADAPTER
Alcatel Advanced sets can be equipped with a 4097 CBL UA/DECT adapter and can therefore com-
municate with the system over a DECT radio link. This device means you no longer have to worry about
cabling constraints. An RS232 link is also advisable for CTI applications.
The Advanced set and its adapter are jointly called Advanced DECT/4036.
The 4097 CBL adapter is powered by a 220V AC/42V DC mains adapter. This mains adapter is also
a power splitter. The base of the power socket must be positioned as close to the adapter as possible,
and must also be easily accessible.
Notas : This adapter can also be used with an Alcatel Premium set (internal installation) or First or
Easy sets (external installation).

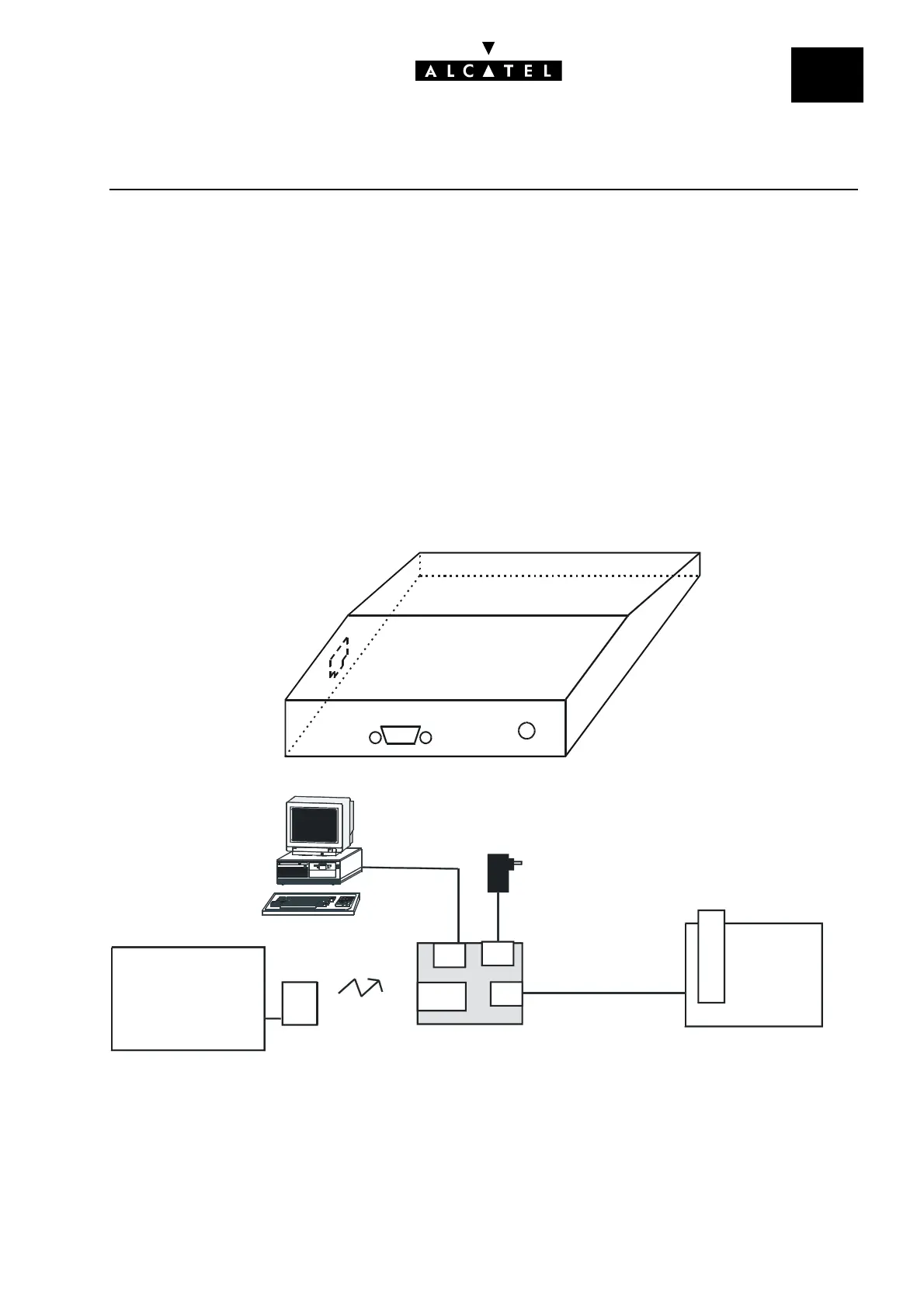

Connection
UA Exit
CTI
P
o
rt
External
power supply
Ada
p
tor
UA link
CTI
Radio
UA
(15m max)
(3m max)
Alcatel
OmniPCX
DECT link
BS
DC
4020 or 4035 statio
n

Alcatel OmniPCX Office Specifications

General

VoIP Support	Yes
SIP Support	Yes
ISDN Support	Yes
Analog Support	Yes
Integrated Voice Mail	Yes
Auto Attendant	Yes
Conferencing	Yes
VoIP Protocols	SIP, H.323
Power Supply	100-240 VAC, 50/60 Hz
Network Interfaces	10/100 Mbps Ethernet
Humidity	10% to 90% non-condensing
