Alcatel OmniPCX Office Technical Documentation

ALCATEL REFLEXES 3G TERMINALS TERMINALS
Ed. 046/8 Réf. 3EH 21000 BSAA

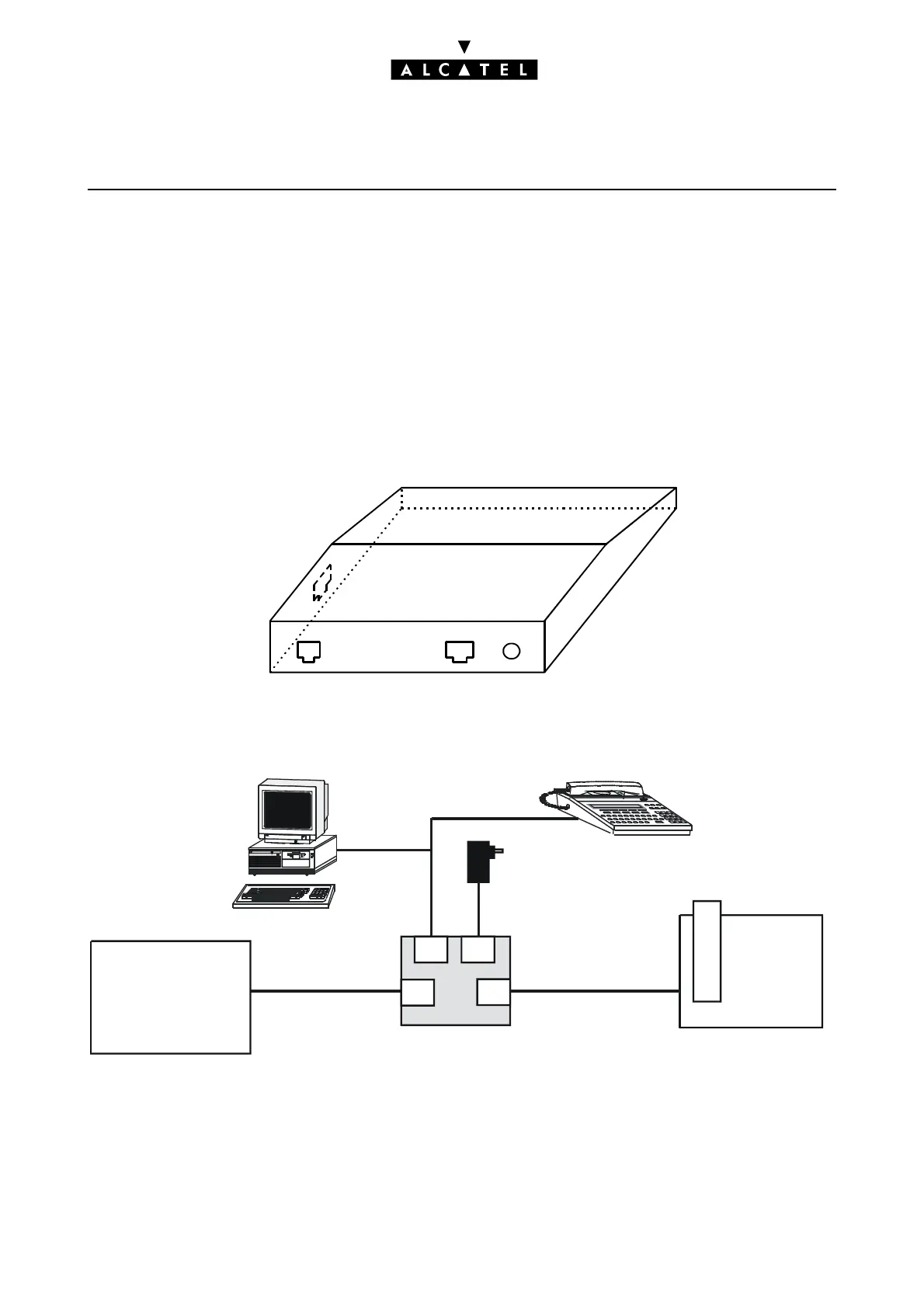

4094 ISW module
This module connects an S0 terminal to the system via a UA link.
This optional module provides an S0 power bus which requires an external power supply (230V AC/
42V DC adapter), allowing terminals without their own power supply (ISDN terminals, etc.) to be con-
nected to the bus.
The mains supply transformer serves as a sectioning mechanism for the S0 interface. It must therefore
remain easily accessible.
The S0 bus can be a point to point or short passive bus covering 150 m (up to 5 terminals, of which a
maximum of 2 may be powered remotely). Operation is not guaranteed in the event of a power outa-
ge.
Connection
UA Entry
UA Exit
S0
Port
External
power
supply
S0 Module
40XX station
UA Link UA Link
S0 DC
UA
UA
(3m max)
S0 station
ISDN Terminal
S0 Bus
Alcatel
OmniPCX
150 m

Alcatel OmniPCX Office Specifications

General

VoIP Support	Yes
SIP Support	Yes
ISDN Support	Yes
Analog Support	Yes
Integrated Voice Mail	Yes
Auto Attendant	Yes
Conferencing	Yes
VoIP Protocols	SIP, H.323
Power Supply	100-240 VAC, 50/60 Hz
Network Interfaces	10/100 Mbps Ethernet
Humidity	10% to 90% non-condensing
