ALCATEL REFLEXES 3G TERMINALSTERMINALS
Ed. 04 5/8Réf. 3EH 21000 BSAA

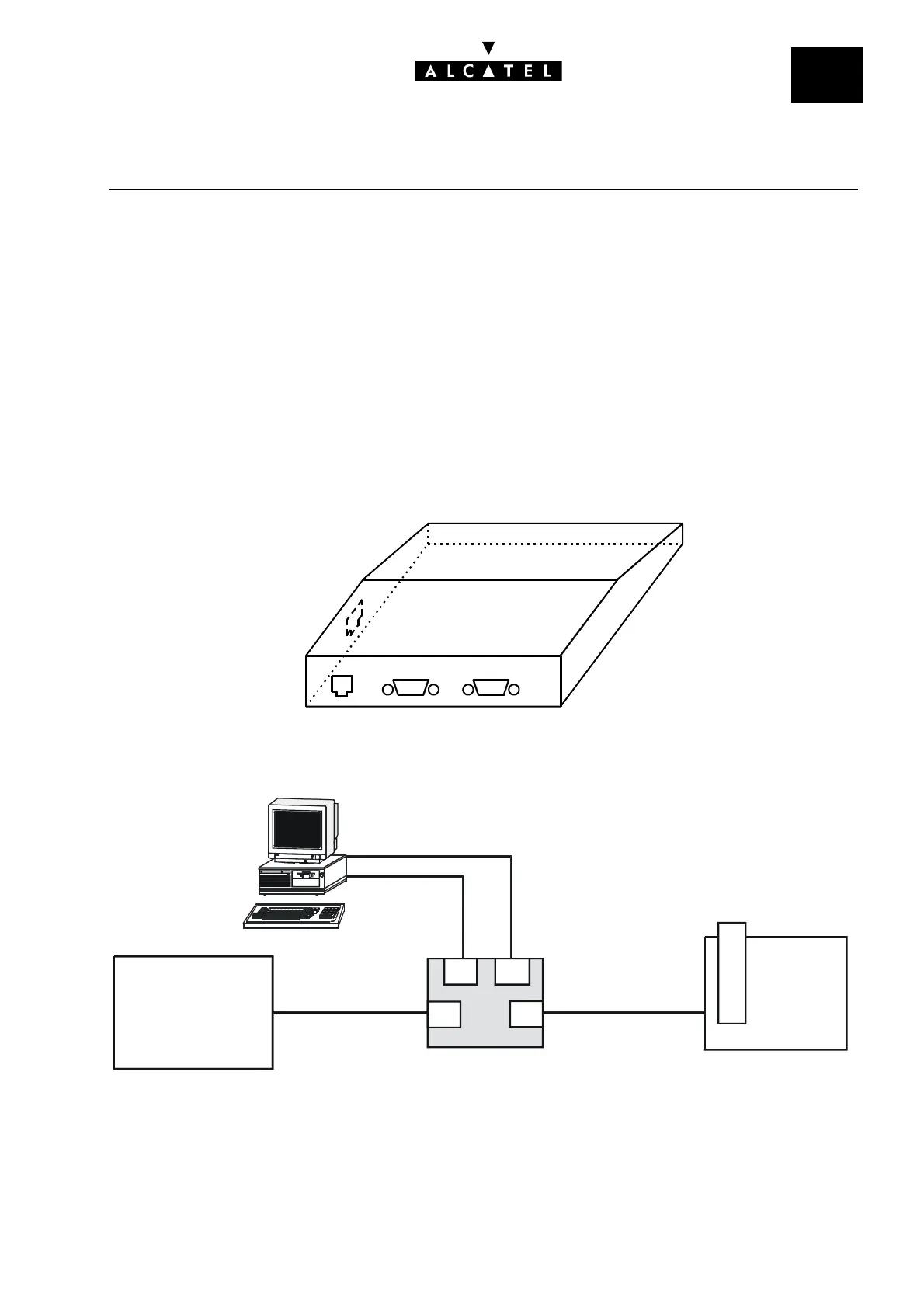

4093 ASY-CTI module
This module allows the device to be connected to the system via a UA link, a PC-type peripheral device
by means of an RS232 link (CTI port) and an DTE data terminal (V24 port).
CTI Port
The RS232 link carries the signaling (up to 9600 bit/s) and allows telephony functions such as call ma-
nagement and call supervision.
The audio function is performed by the associated dedicated set.
V24 Port
The V24 port is regarded as a DCE and supports asynchronous V24 transmission up to 19200 bps
(ECMA 102) and 57600 bps (V14e). The electrical interface conforms to ITTCC recommendation V28.
This port is used to connect up the metering data management system (connection cable provided).
Connection
UA
Entry
UA Exit
CTI
Port
V24 Port
V24-CTI Module
40XX station
UA Link UA Link
CTI
UA
UA
(15m max)
(3m max)
V24
up to 19,2 kbit/s (15m max)
and 57,6 kbit/s (2m max)
DCE
DTE
Alcatel
OmniPCX
