Alcatel OmniPCX Office Technical Documentation

SERVICES AND TOPOLOGIES CALL SERVER : VOICE ON IP
Ed. 044/12 Réf. 3EH 21000 BSAA
Gateway in a H.323 zone

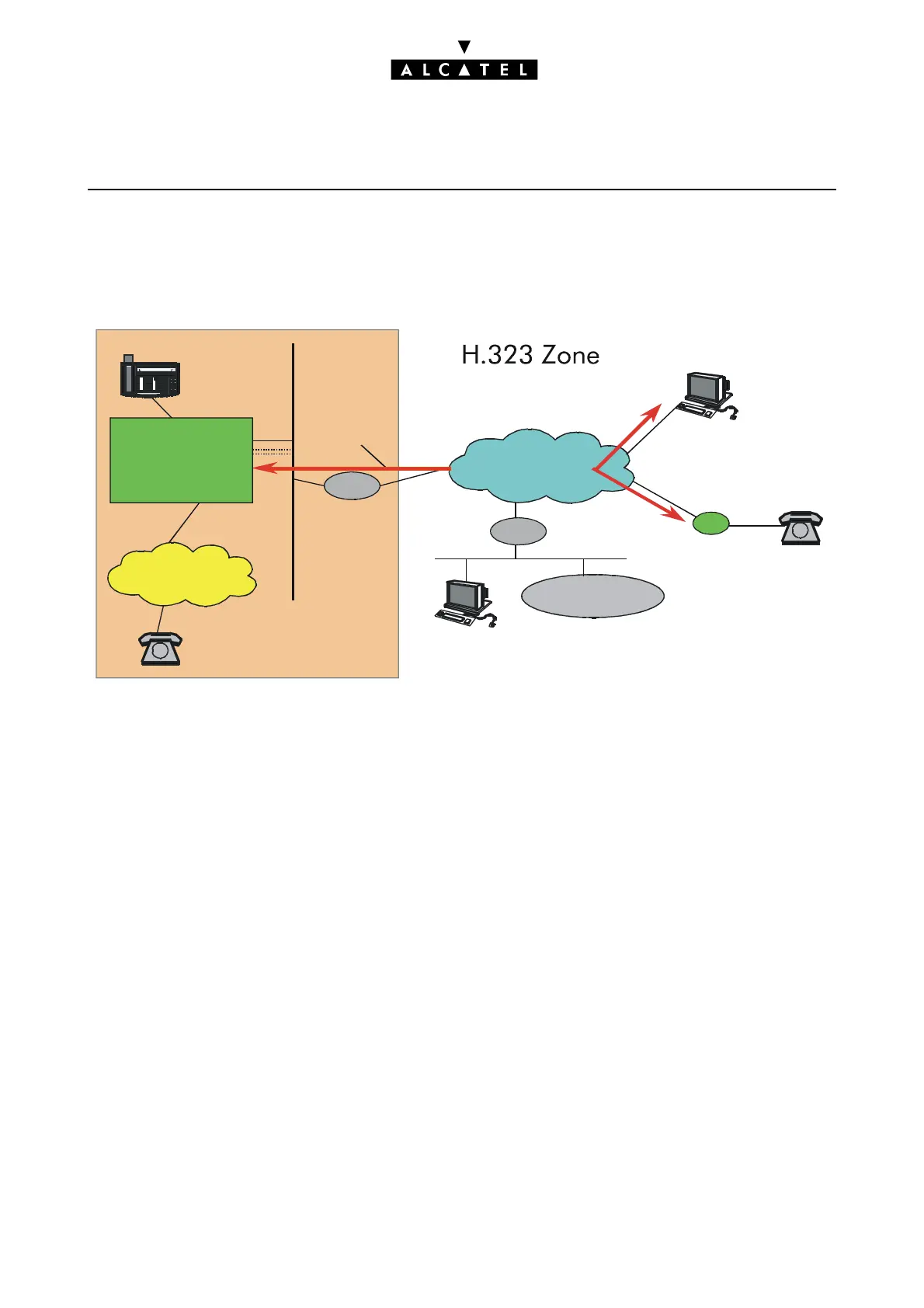

In a network topology like the one below, the H.323 gateway of Alcatel OmniPCX Office can be inte-
grated into an H.323 zone managed by an external gatekeeper.
In this configuration, the gatekeeper integrated into Alcatel OmniPCX Office must be deactivated and
the network administrator must supply the IP address of the external gatekeeper.
WAN IP network
H.323
G
@IP
@IP
R
@IP1
@IPn
@IP@IP
LAN
R
R
Gatekeeper H.323
@IP
@IP
@IP
@IP
Alcatel OmniPCX
(Gatekeeper
deactivated)
ISDN / PSTN
Company
Permanent connection
or Callback
Netmeeting
without
secure plug-in
@IP : IP Address
G : H.323- compatible gateway
R : IP/Proxy/Firewall router
secure plug-in
Netmeeting
without

Alcatel OmniPCX Office Specifications

General

VoIP Support	Yes
SIP Support	Yes
ISDN Support	Yes
Analog Support	Yes
Integrated Voice Mail	Yes
Auto Attendant	Yes
Conferencing	Yes
VoIP Protocols	SIP, H.323
Power Supply	100-240 VAC, 50/60 Hz
Network Interfaces	10/100 Mbps Ethernet
Humidity	10% to 90% non-condensing
