1

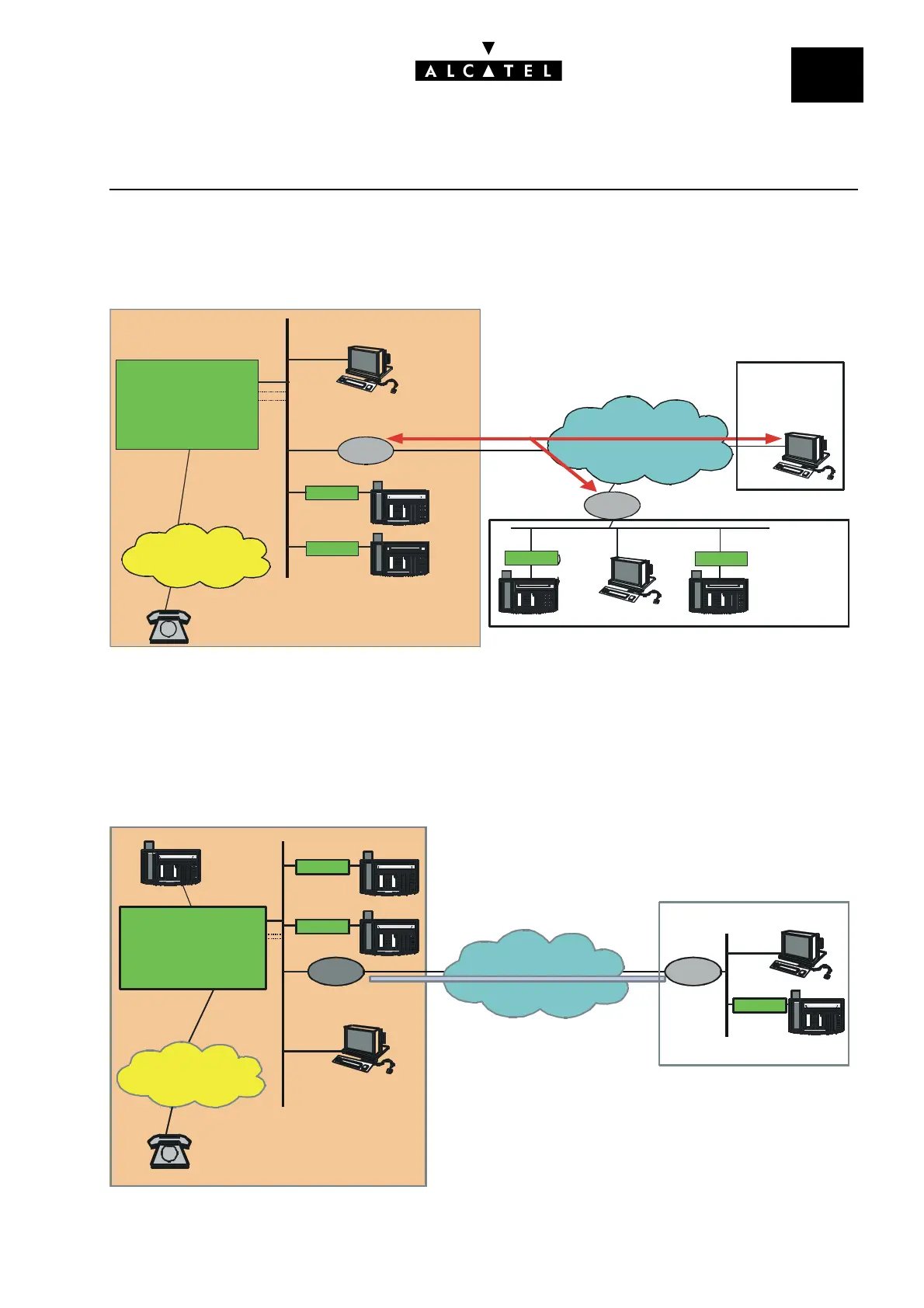

SERVICES AND TOPOLOGIESCALL SERVER : VOICE ON IP
Ed. 04 5/12Réf. 3EH 21000 BSAA
IP TELEPHONY
This service does not require any specific external equipment (IP and/or Proxy/Firewall Router), unless
it is provided for Remote/Home Workers.
The IP router (R) connected to the Intranet can be a simple IP router. The reservation of bandwidth is
"guaranteed" if this router supports IP ToS (DiffServ).
The number of remote IP Enablers or PIMphony IP subscribers depends on the line bandwidth (not
more than 2 simultaneous communications for 64 Kbps, not more than 5 for 128 Kbps).
HOME WORKER (remote IP Telephony via a VPN)
Remote worker
Home worker
WAN IP network
@IP1
@IP
@IP
: IP Address
R
: IP/Proxy/Firewall router
V
PN
S
erver
VPN
Pimphony
MultiMedia
R
R
@
IPn
Public @IP
@IP
LAN
Company
IP ENABLER
@IP
@IP
Pimphony
MultiMedia
@IP
Alcatel OmniPCX
(DHCP Server)
IP ENABLER
IP ENABLER
IP ENABLER
@IP @IP
@IP
Permanent connection
ISDN / PSTN
Pimphony
MultiMedia
ISDN / PSTN
R/F:
IP/Firewall router with permanent
connection (leased line, ADSL,
modem cable) +VPN Server
LAN
Company
Pimphony IP
R/F
Permanent
connection
Internet
VPN
Home Network
Alcatel OmniPCX
IP ENABLER
IP ENABLER
IP ENABLER
R/F
Permanent
connection
