INSTALLATION - CONFIGURATION CALL SERVER : VOICE ON IP
Ed. 046/20 Réf. 3EH 21000 BSAA
REMOTE H.323 GATEWAY
Configuring outgoing communication (ARS table)
The choice of routing a telephone communication between a public network access or a VoIP access
and the busy trunk overflow feature are defined in the ARS table.
Like conventional outgoing telephone calls, a VoIP call is subject to the ARS mechanisms: link catego-
ries, ARS time slot management, overflow on busy, etc.

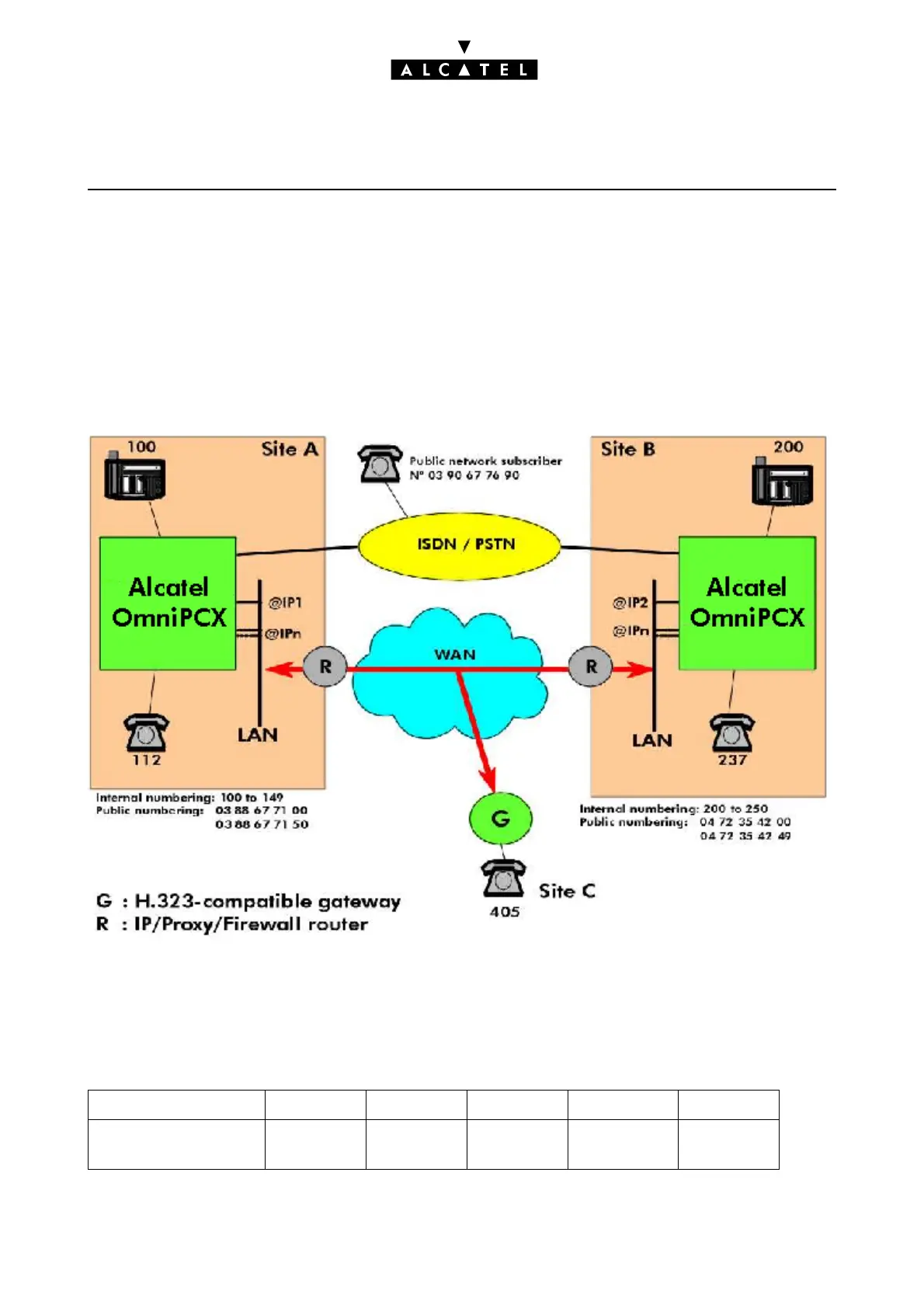

In the diagram below sites A and B are Alcatel OmniPCX Offices. Site C is a remote system integrating
an H.323 ga-
teway.
- @IP1: IP address of the master VoIP CoCPU board at site A - @IPn: IP address of slave board(s)
- @IP2: IP address of the master VoIP CoCPU board at site B, e.g. 192.189.50.120
Base call
The site A stations call the site B stations by dialing their internal numbers:
Internal numbering plan (site A):
Function Start End Base NMT Priv
Secondary trunk
group
2 2 ARS Keep Yes
