INSTALLATION - CONFIGURATION CALL SERVER : VOICE ON IP
Ed. 0414/20 Réf. 3EH 21000 BSAA

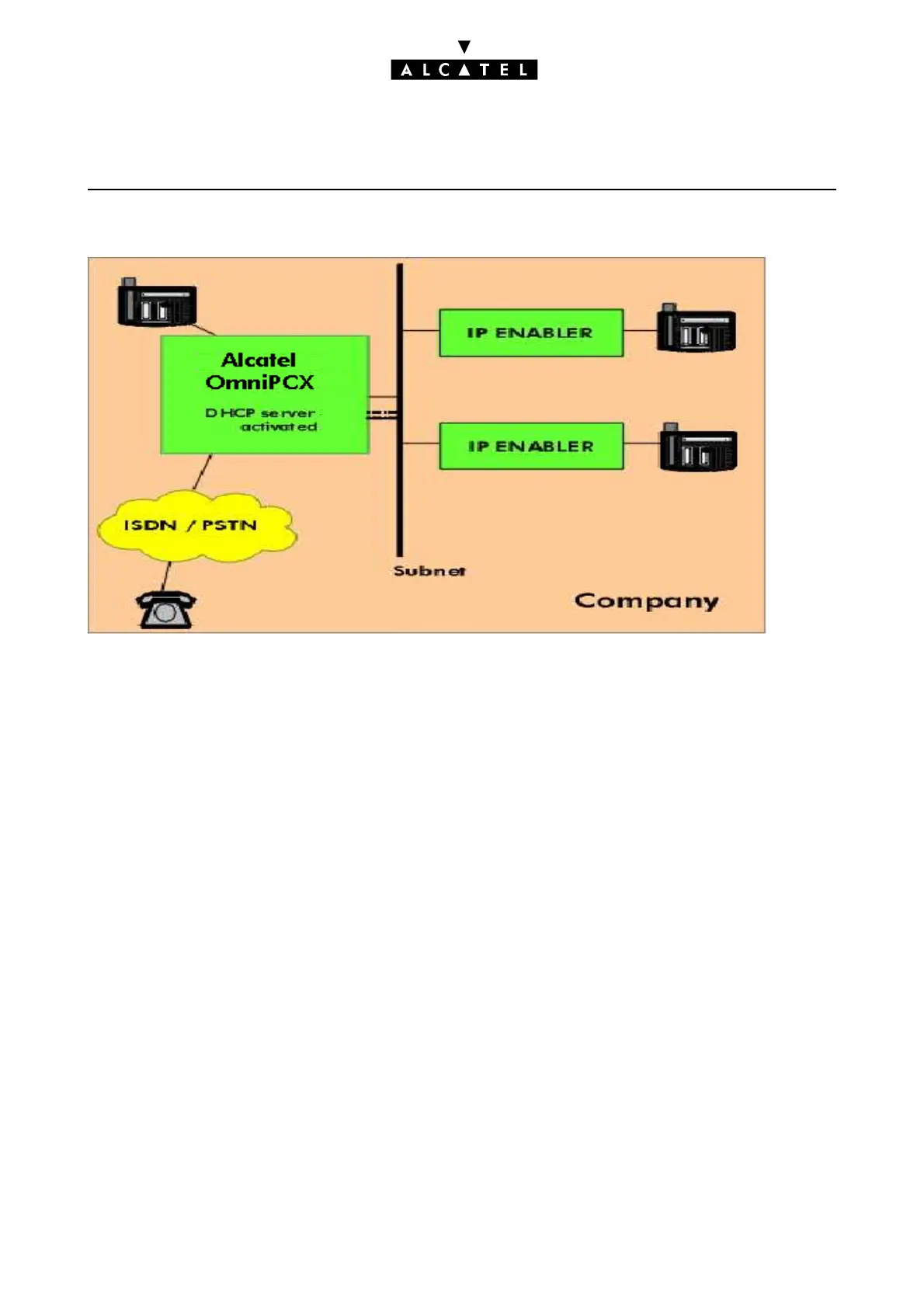

IP Enabler connected to the same Subnet as the PBX
The IP Enabler is connected to the same LAN as the PBX and the integrated DHCP server is activated:
the recording sequence is automatic. This sequence is displayed on the station display and runs in 6
phases. Each phase is represented by a flashing block on the display:
- Phase 1: IP initialization
- Phase 2: downloading of the configuration file (TFTP)
- Phase 3: downloading of the binary file (TFTP)
- Phase 4: binary flashing (not systematic). Remark: the binary is only flashed when there is a change
of version in the TFTP server (VoIP CoCPU board).
- Phase 5: downloading of the starting file
- Phase 6: establishing of UA signaling
At the end of phase 6, the station is initialized and appears on the list of terminals of the MMC-PM5.
Nota : Creation of the station is automatic, the system automatically assigns the first free directory
number (it is not necessary to create an IP terminal beforehand).
If an error occurs during the initialization sequence, a specific error message "Error x.yy" is displayed:
see "Maintenance" File.
