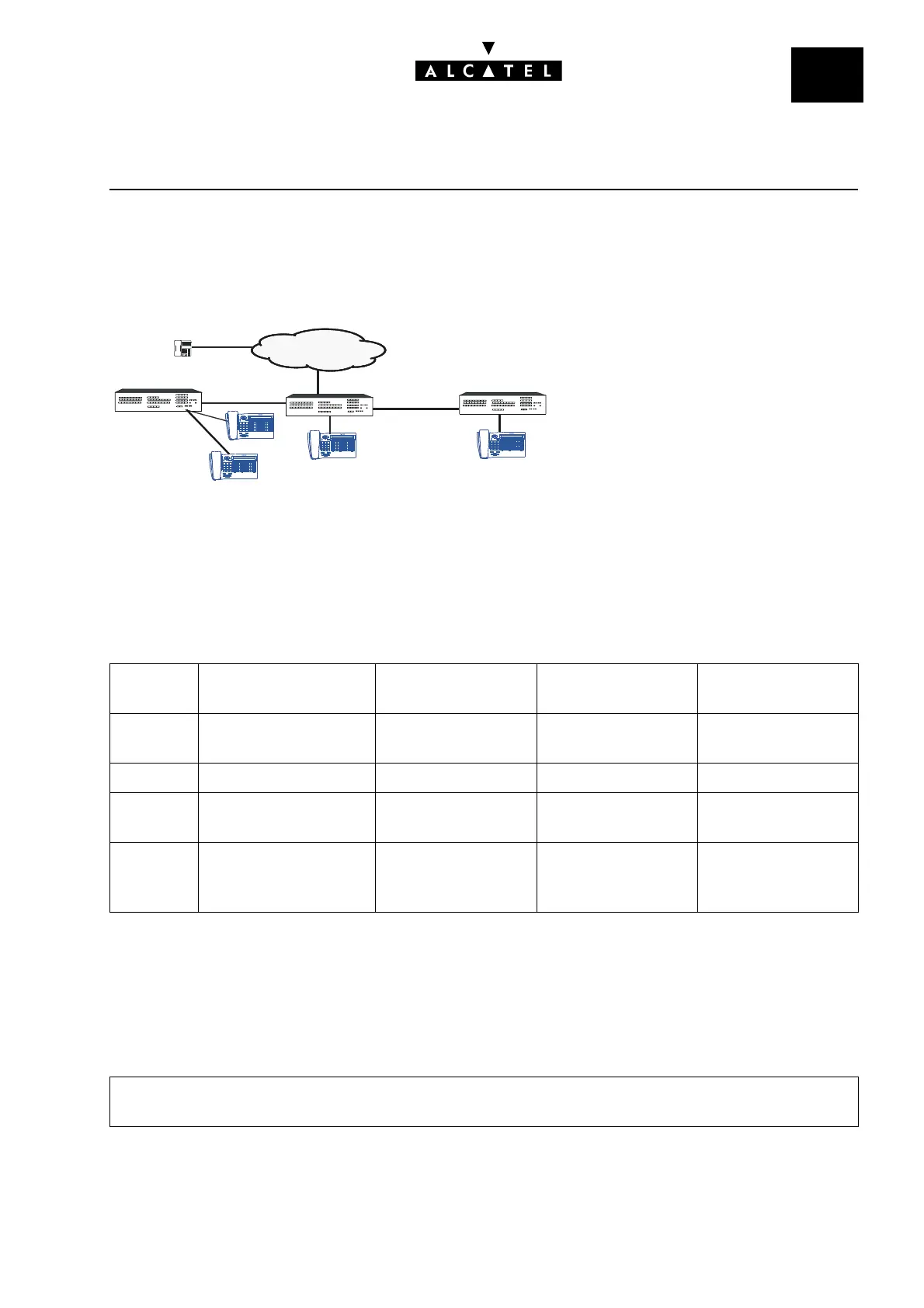

THE NETWORK OFFERINGCALL SERVER : PRIVATE NETWORKS
Ed. 04 19/20Réf. 3EH 21000 BSAA
INFORMATION DISPLAYED
ISVPN on leased lines
Example:
Forwarding
For a call on digital lines (ISDN or QSIG) and if the called party is forwarded, it is possible to define,
using MMC-PM5 (Expert View), the identity which is transmitted to the rung set:
- either that of the caller (set B in the example)
- or that of the called set (forwarded set A)
Call Number dialed Number transmit-
ted
Caller's display Called party's dis-
play
A -> C 5135 (private network
call)
5135 on leased line Name of C Name of A
B -> C 5135 (local call) 5135 Name of C Name of B
B ->
OPER.
9 (private network
call)
9 on leased line Name of operator Name of B
B ->D 00388677700 (public
network call)
0388677700 by
break-out
0388677700 or
name of D (if mana-
ged locally)
0388675101
- by MMC-PM5 (Expert View), select: System Miscellaneous -> Feature Design ->check one of
the 2 boxes o CLI Transmission or o CLI is Diverted Party.
T0
T0
Station D (0388677700)
Node 51
03886751XX
ISDN
ISVPN
Node 52
Station B (5101)
Station C (5135)
CENTRALIZED
OPERATOR
ISVPN
Node 50
Station A
(500)
