EXAMPLES USING ARSCALL SERVER : PRIVATE NETWORKS
Ed. 04 7/16Réf. 3EH 21000 BSAA

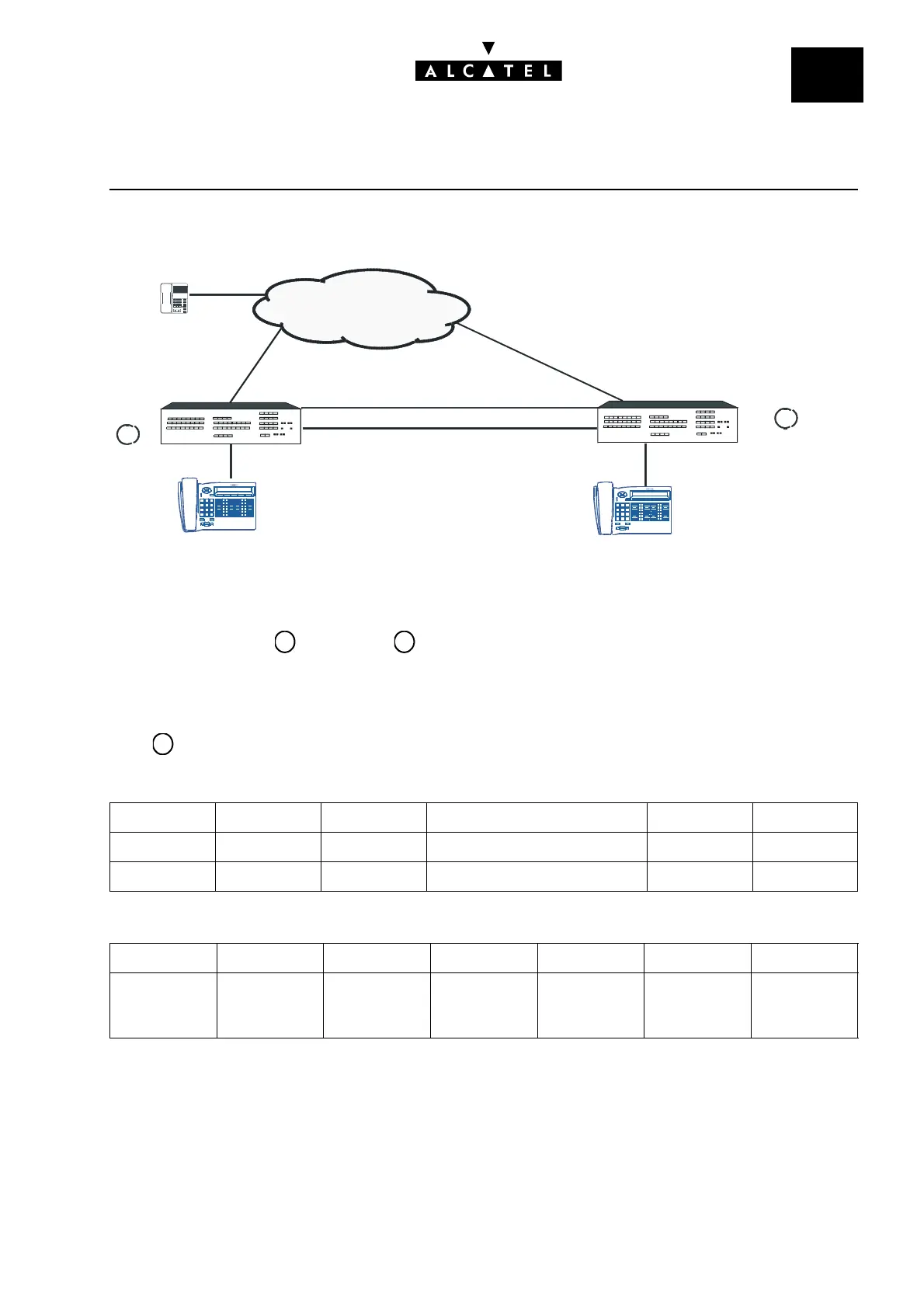

TYPICAL NETWORK CONFIGURATION
OVERFLOW
Purpose:
The call from a user of from a set in must, in order of priority, use the QSIG link, then the analog
ATL and finally the T0 public accesses.
Settings:
PABX
- Main numbering plan
-ARS table
Start End Base Function NMT Private
120 199 120 Set - No
835 839 ARS Secondary trunk group Keep Yes (1)
Network Prefix Ranges Substitute TrGp list Called/HH User com.
Private 8 35-39 8
01478588
1
2
Heterogen.
Heterogen.
(2)
(4)
A
ATL
QSIG
PARIS
STRASBOUR
G
RNIS
B
Subscriber in
Paris
0155665555
Trun k group
300
T0 : 0147858835-39
TrGr p 301
TrGrp 302
TrGrp 301
TrGrp 302
Stations 835 to 899
T0 : 0388408120-24
Trunk g ro up
300
Stations 120 to199
A B
B

Alcatel OmniPCX Office Specifications

General

VoIP Support	Yes
SIP Support	Yes
ISDN Support	Yes
Analog Support	Yes
Integrated Voice Mail	Yes
Auto Attendant	Yes
Conferencing	Yes
VoIP Protocols	SIP, H.323
Power Supply	100-240 VAC, 50/60 Hz
Network Interfaces	10/100 Mbps Ethernet
Humidity	10% to 90% non-condensing
