CPU - CPUE BOARDSHARDWARE
Ed. 04 5/12Réf. 3EH 21000 BSAA

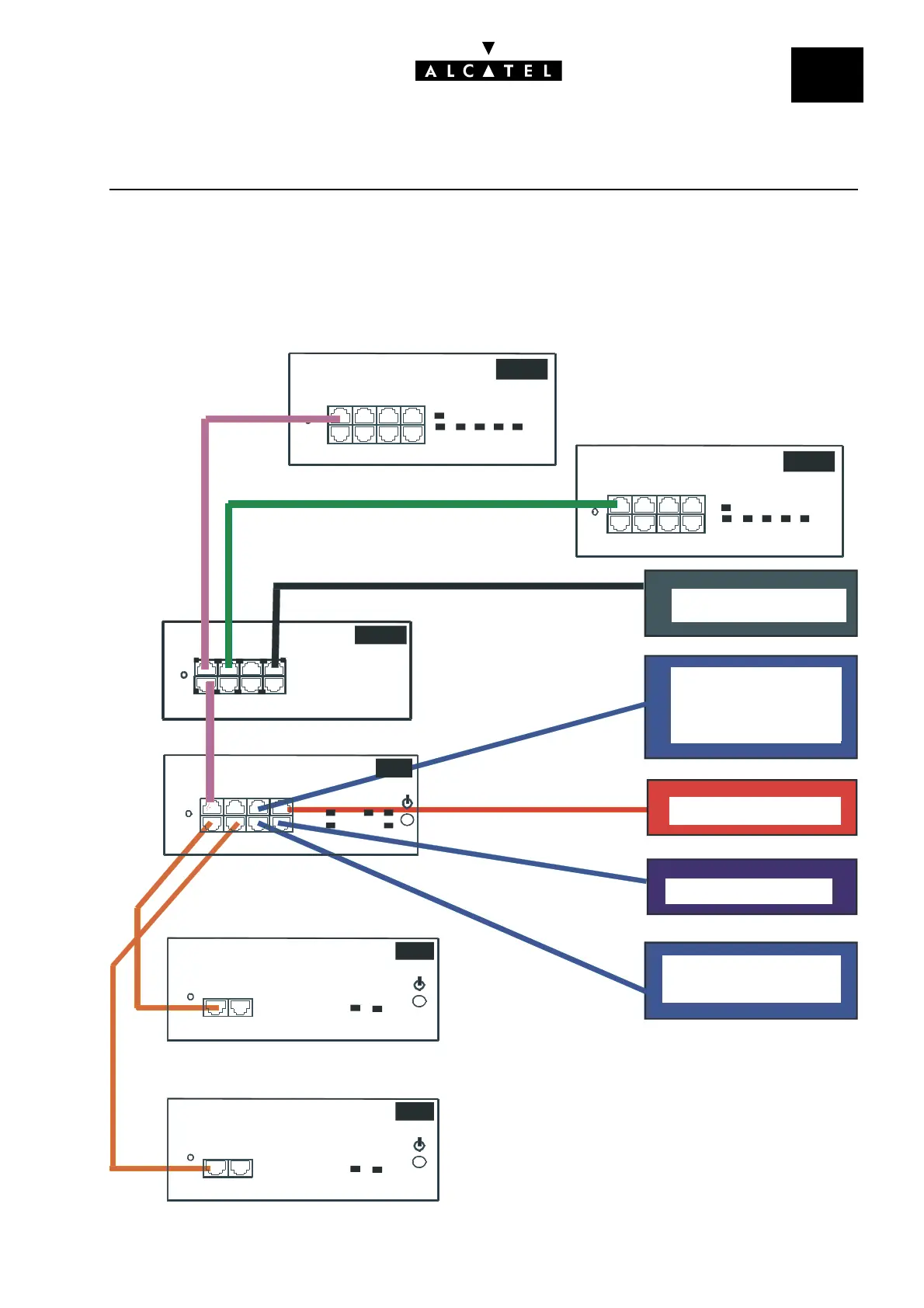

GENERAL CONNECTION DIAGRAM
Configuration without SLANX4 (recommended configuration)
PRO CESSI N G U N I T
CPU
MEX
MEX
CO PRO CESSI N G U N I T
CoCPU
CO PRO CESSI N G U N I T
Co CPU
ETH ERN ET LAN SWI TCH
LAN X 8
"Please wait" message
Background music
Loudspeaker
Alarm
External LAN Switch
PC (PM5, NMC)
Doorphone
12V serviceable voltage
CoCPU board + SLanX4 board
CPU board
MEX board (extension unit) 1
MEX board (extension unit 2)
CPU board
LANX board
ADD- ON MODULE
ADD- ON MODULE
General bell
