CPU - CPUE BOARDS HARDWARE

Ed. 048/12 Réf. 3EH 21000 BSAA

Contact characteristics (same characteristics for the alarm and doorphone control contacts):

- Max. power: 10 W

- Max. voltage: 100 V

- Max. current: 500 mA

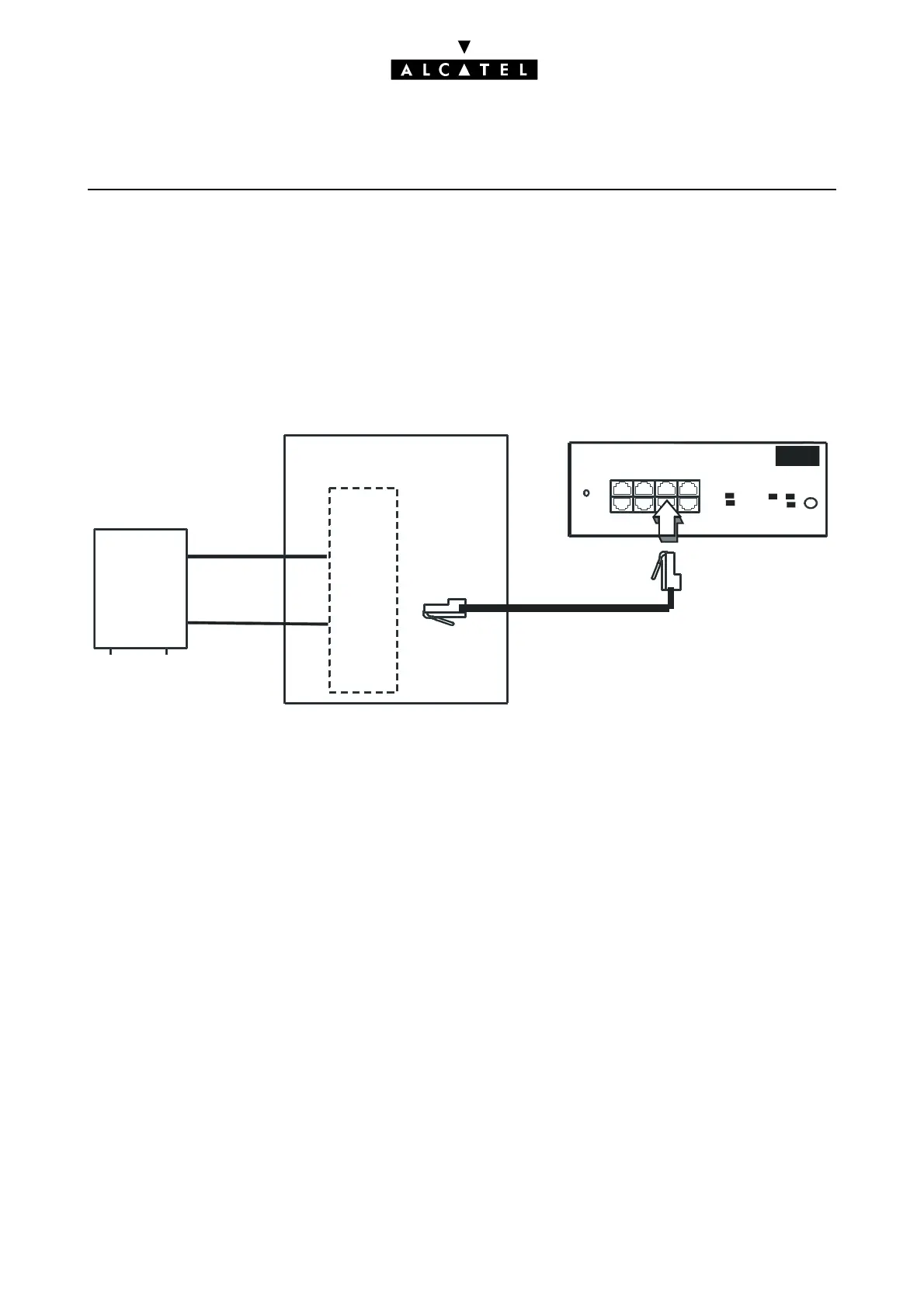

CONNECTING A BACKGROUND MUSIC TUNER

This is connected via the AUDIN input of the AUDIO-IN connector.

Audio input characteristics:

- Input impedance: 600 Ohms

- Input level: access +10 dBr

CONNECTING AN ALARM

The alarm is activated under the same conditions as TL forwarding (power outage or software com-

mand).

It is connected via the ALARM output (control contact closed when idle) of the AUDIO-OUT connector.

Distribution panel

Audio In B

Audio In A

Power supply

TUNER

PRO CESSI N G U N I T

CPU
