ALCATEL OFFICE CALL CENTER

(AOCC)

APPLICATIONS

Ed. 042/4 Réf. 3EH 21000 BSAA

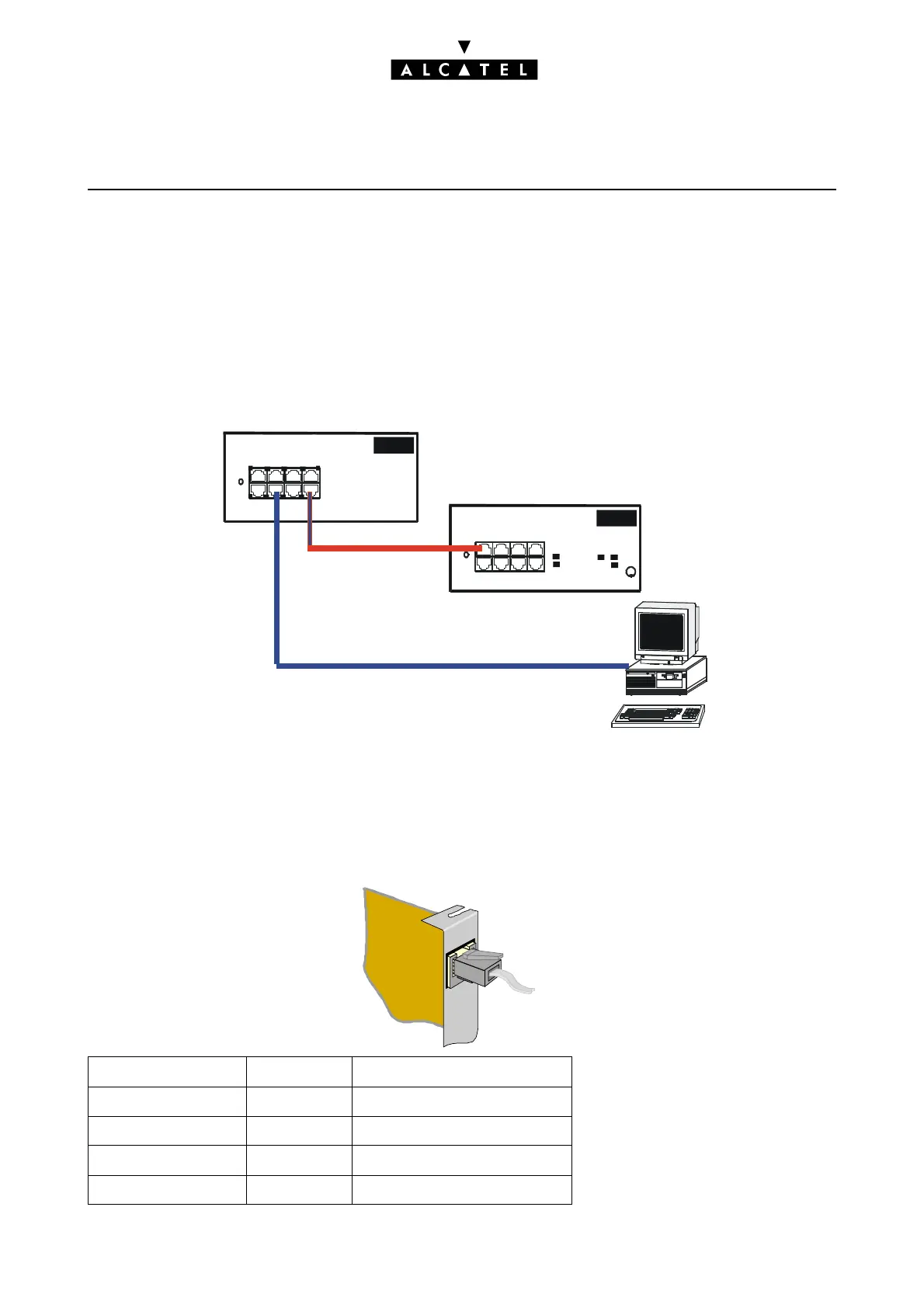

CSTA connection

LanX8/X16 board

The AOCC application is connected to the system using a LanX8/X16 board via an 10 base T Ethernet

link (straight cable).

AOCC network board

The PC network board is equipped with an RJ45 connector for connection to a 10 base T Ethernet link;

the pins are numbered 1 to 8 from left to right (front view, clips on top).

Pin n° Signal Function

1 TX+ Transmission +

2 TX- Transmission -

3RX+Reception +

6RX-Reception -

PROCESSING UNIT

ETHERNET LANSWITCH

Ethernet 10 Mbits

AOCC

LANX8

CPU
