LANX BOARD HARDWARE
Ed. 042/4 Réf. 3EH 21000 BSAA

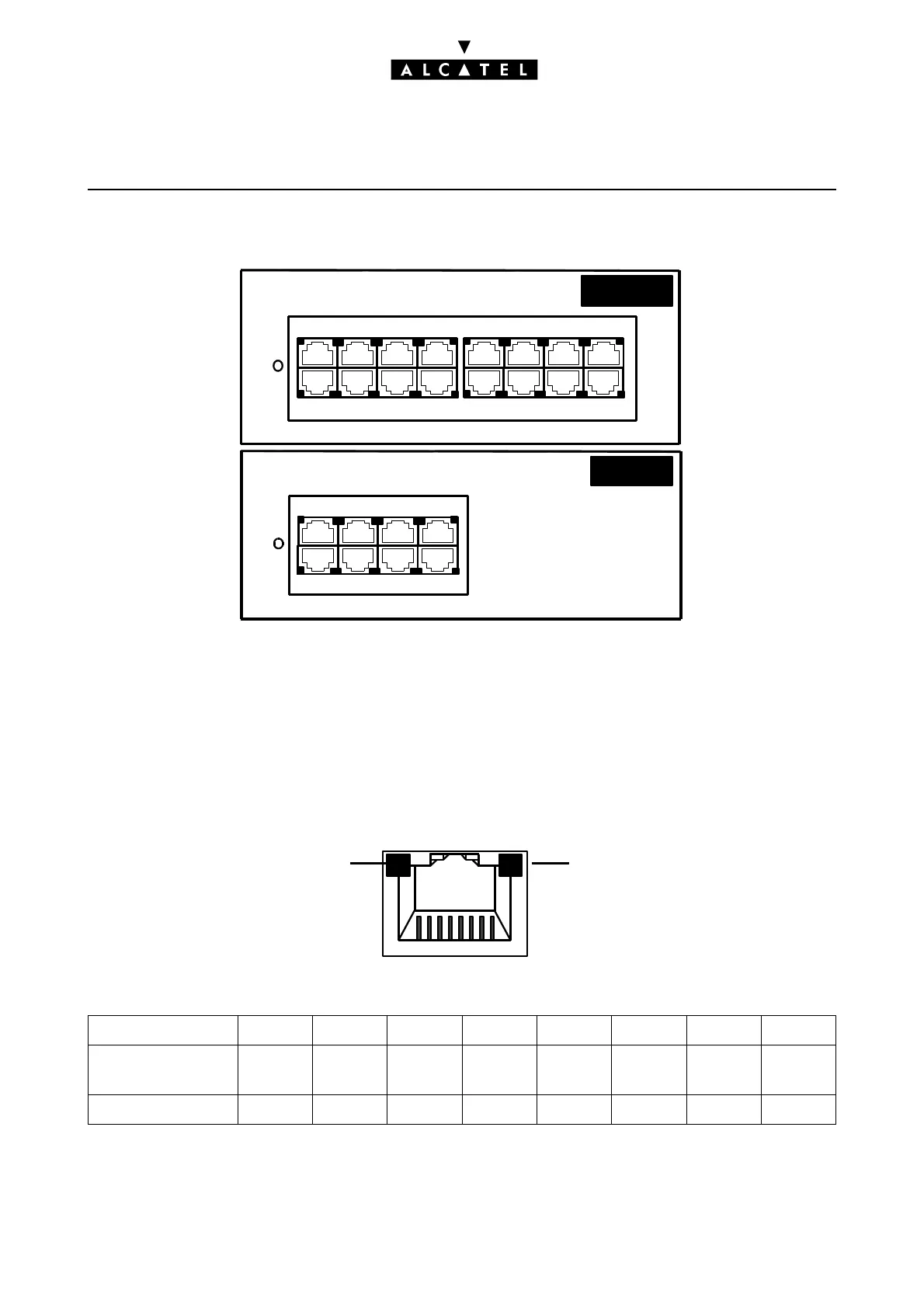

OUTPUT PORTS (BOARD STIFFENER)
Each category-5 RJ45 connector has 2 green LEDs:
- LED A = link status and activity:
• off: link disconnected
• on: link connected
- blinking: link active
- LED B = full duplex/collision:
• off: Half Duplex
• on: Full Duplex
- blinking: collision
RJ45 pin 12345678
Port outputs (ports
1 to 15)
RX+ RX- TX+ TX-
Up-Link output TX+ TX- RX+ RX-
910
11
12 13 14 15
UP-LINK
ETHERNET LANSWITCH
12 3 4 5 6 78
LANX16
56 7
UP-LINK
ETHERNET LANSWITCH
12 3 4
LANX8
12345678
Female RJ45, front
Led A Led
