MAIN POWER SUPPLIES HARDWARE
Ed. 042/6 Réf. 3EH 21000 BSAA
POWER SUPPLY PS2
Power supply PS2, which provides the different voltages required to operate a Rack 2 module, compri-
ses 2 boards:
- PCH2 :charger board
- PCO2 :converter board

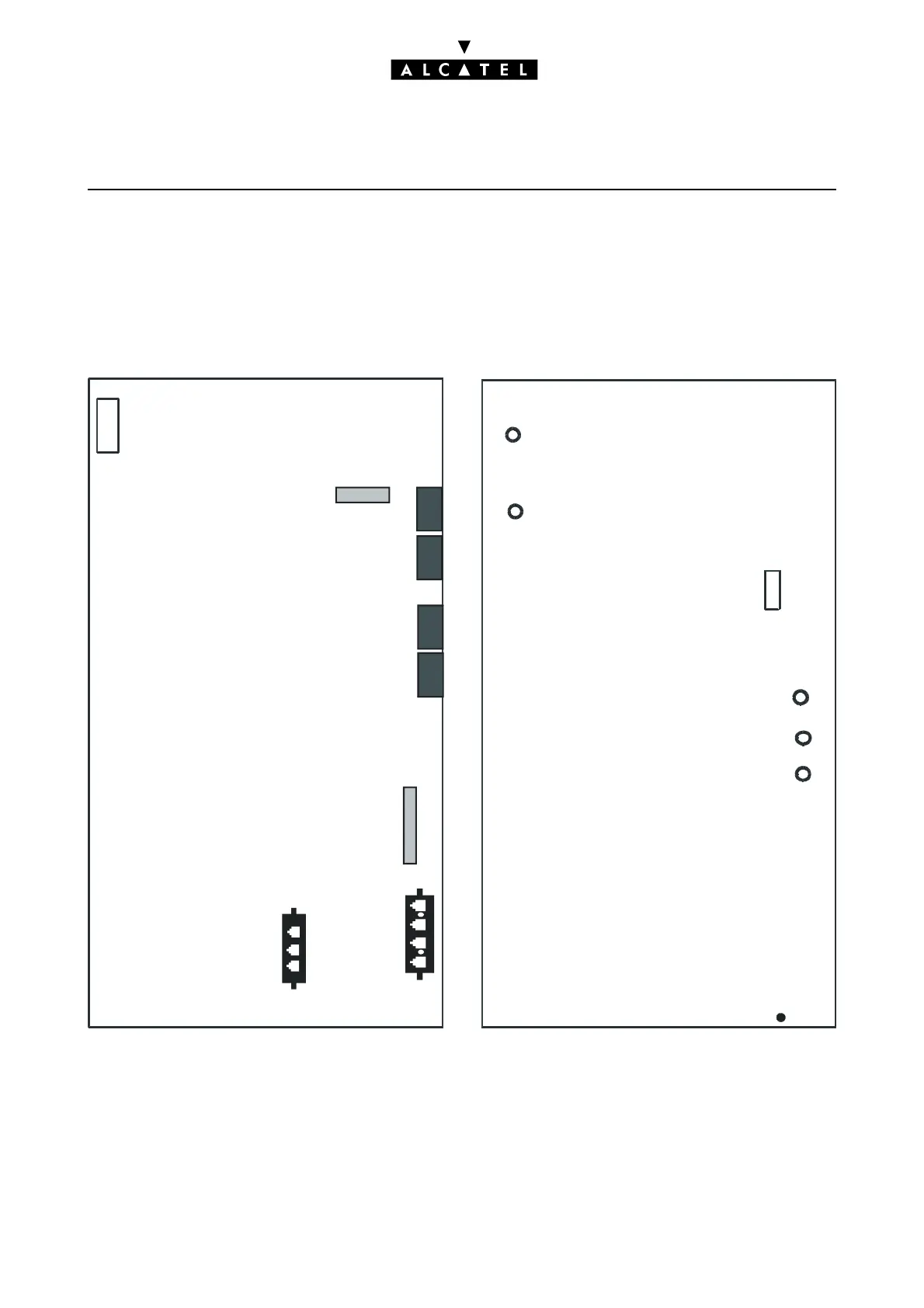

PCH2 Boa r d
PCO2 Boa rd
SWT
GND
POWER-V12DC
LIVE
NEUTRAL
POWER-V12DC
GND
SW T
1
3
-BAT (black)
+BAT (red)
Battery
connexion
Connection with
PCH2 board
Battery fuse F10AL/250V
(10 A fast-acting,
low breaking capacity)
Connection with
PCO2 board
Plug-in connectors
on BACK2*
12V fuse for CPU
(1A fast-acting)
Fan power supply connectors
Mains power connexion
110V/230V selection:
-jumpers in 1-2: 110 V
-jumpers in 2-3: 230 V
