MAIN POWER SUPPLIESHARDWARE
Ed. 04 3/6Réf. 3EH 21000 BSAA
POWER SUPPLY PS3

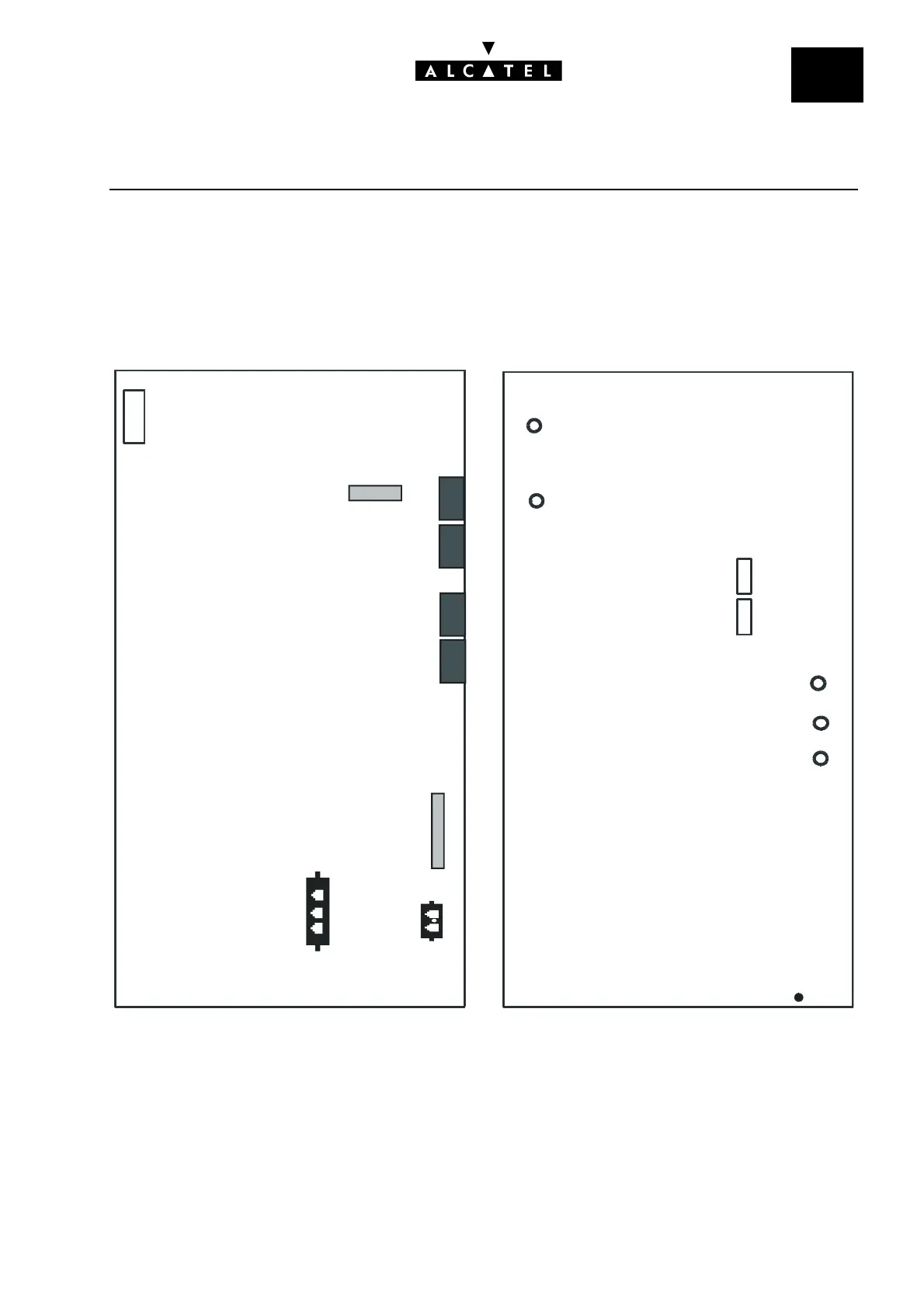

Power supply PS3, which provides the different voltages required to operate a Rack 3 module, compri-
ses 2 boards:
- PCH3 :charger board
- PCO3 :Converter board
PCH 3 boa rd
PCO3 boa rd
SWT
GND
POWER-V40DCN
Battery fuse F6.3AL/250V
(6.3 A fast-acting,
low breaking capacity)
Plug-in connectors
on BACK3
Fan power supply connectors
Mains power connexion
LIVE
NEUTRAL
PO WER-V40DCN GN D SWT
Connection with
PCH3 board
Battery
connexion
Connection with
PCO3 board
1
3
1
3
110V/230V selection:
-2 jumpers in 1-2: 230 V
-2 jumpers in 2-3: 110 V
-BAT (black)
+BAT (red)
12V fuse for CPU
(1A fast-acting)
