116 Rockwell Automation Publication 2198-UM001I-EN-P - May 2019
Chapter 6 Configure and Start the Kinetix 5500 Drive System
In this example, the typical dialog boxes for 1756-ENxT EtherNet/IP modules
and CompactLogix 5370 controllers with embedded Ethernet are shown.
Follow these steps to configure your Logix 5000 controller.
1. Expand the Logix 5000 controller family and select your controller.
2. Type the file Name.
3. Click Next.

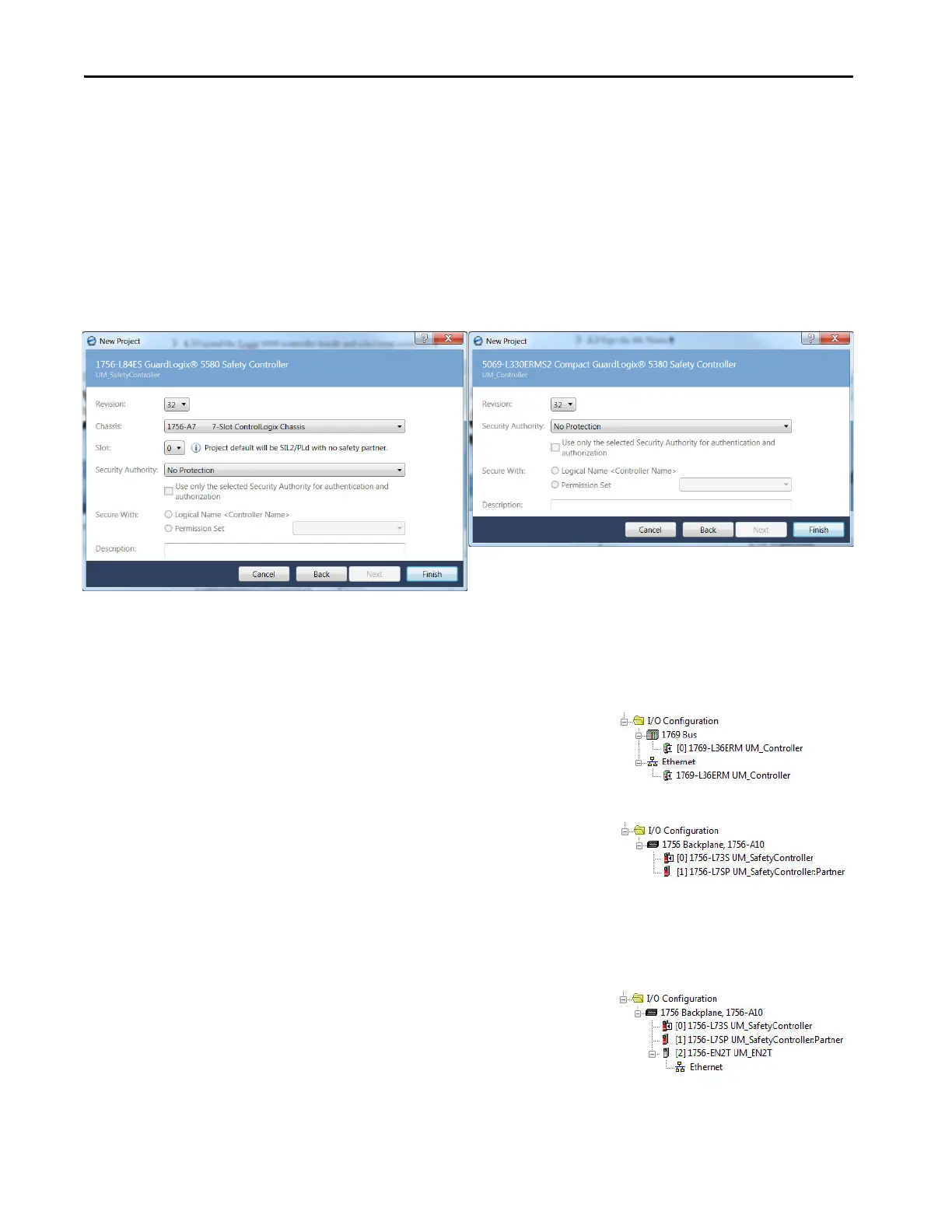

The New Project dialog box appears.
4. From the Revision pull-down menu, choose your software revision.
5. Click Finish.
The new controller appears in the Controller Organizer under the
I/O Configuration folder.
Controller Organizer with
CompactLogix 5380 controller.
Controller Organizer with
GuardLogix 5580 controller.
6. Configure the Logix 5000 controller.
Your new Logix 5000 controller appears under the I/O Configuration
folder in the Controller Organizer.
In this example, a GuardLogix
5580 controller with 1756-EN2T
communication module is used.
