Rockwell Automation Publication 2198-UM001I-EN-P - May 2019 125
Configure and Start the Kinetix 5500 Drive System Chapter 6

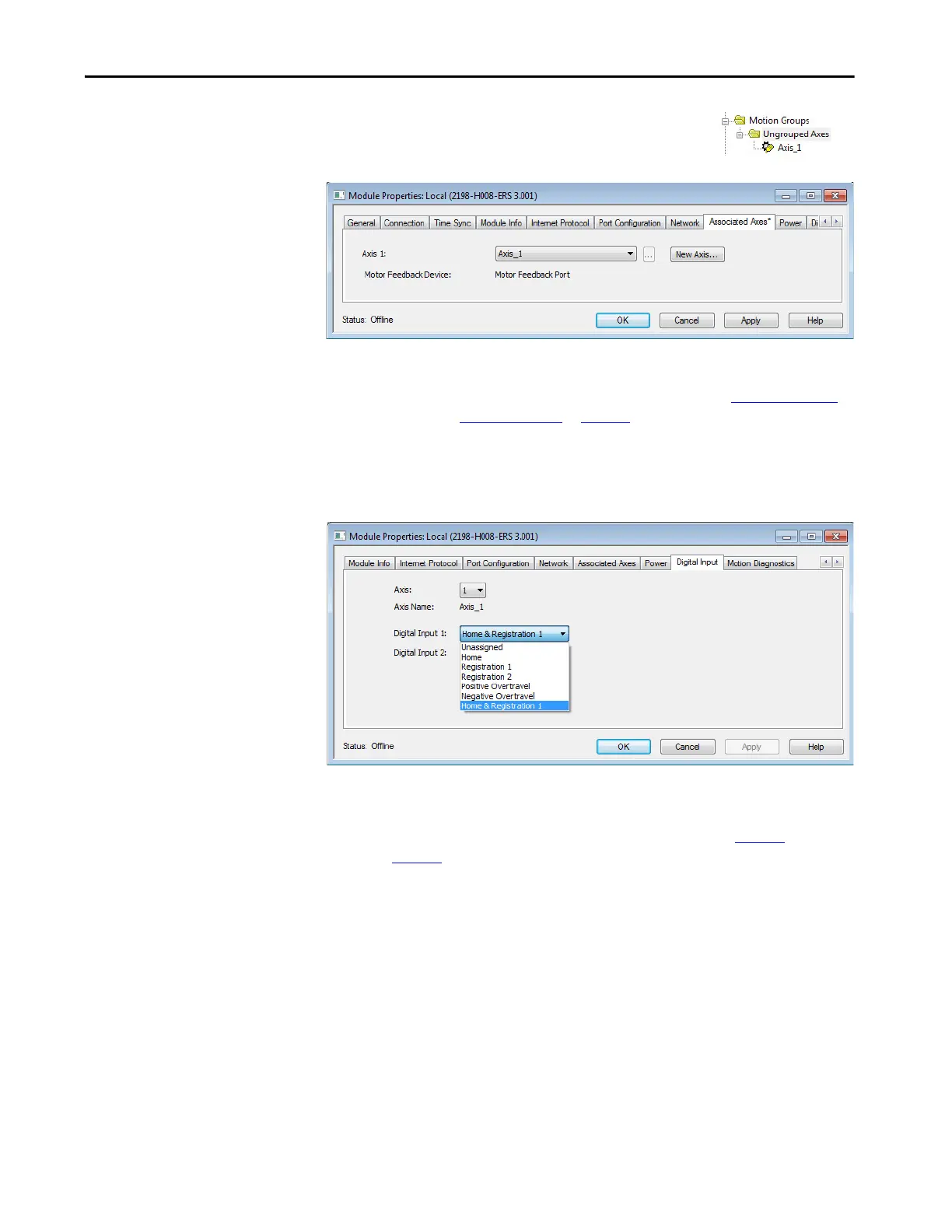

The axis (Axis_1 in this example) appears in the
Controller Organizer under Motion Groups>
Ungrouped Axes and is assigned as Axis 1.
6. Click Apply.
7. Click the Digital Input tab.
8. From the Axis pull-down menu, choose an axis to configure.
9. From the Digital Input pull-down menus, choose a digital input
assignment appropriate for your application. Refer to page 65
and
page 67
for more information.
10. Click Apply.
TIP You can configure an axis as Feedback Only. Refer to Configure Feedback-
only Axis Properties on page 129 for more information.
