Configure and Start the Kinetix 5500 Drive System Chapter 6
4. From the Associated Module>Module pull-down menu, choose your
Kinetix 5500 drive.
The drive catalog number populates the Module Type and Power
Structure fields.
5. Click Apply.
6. Select the Motor category.

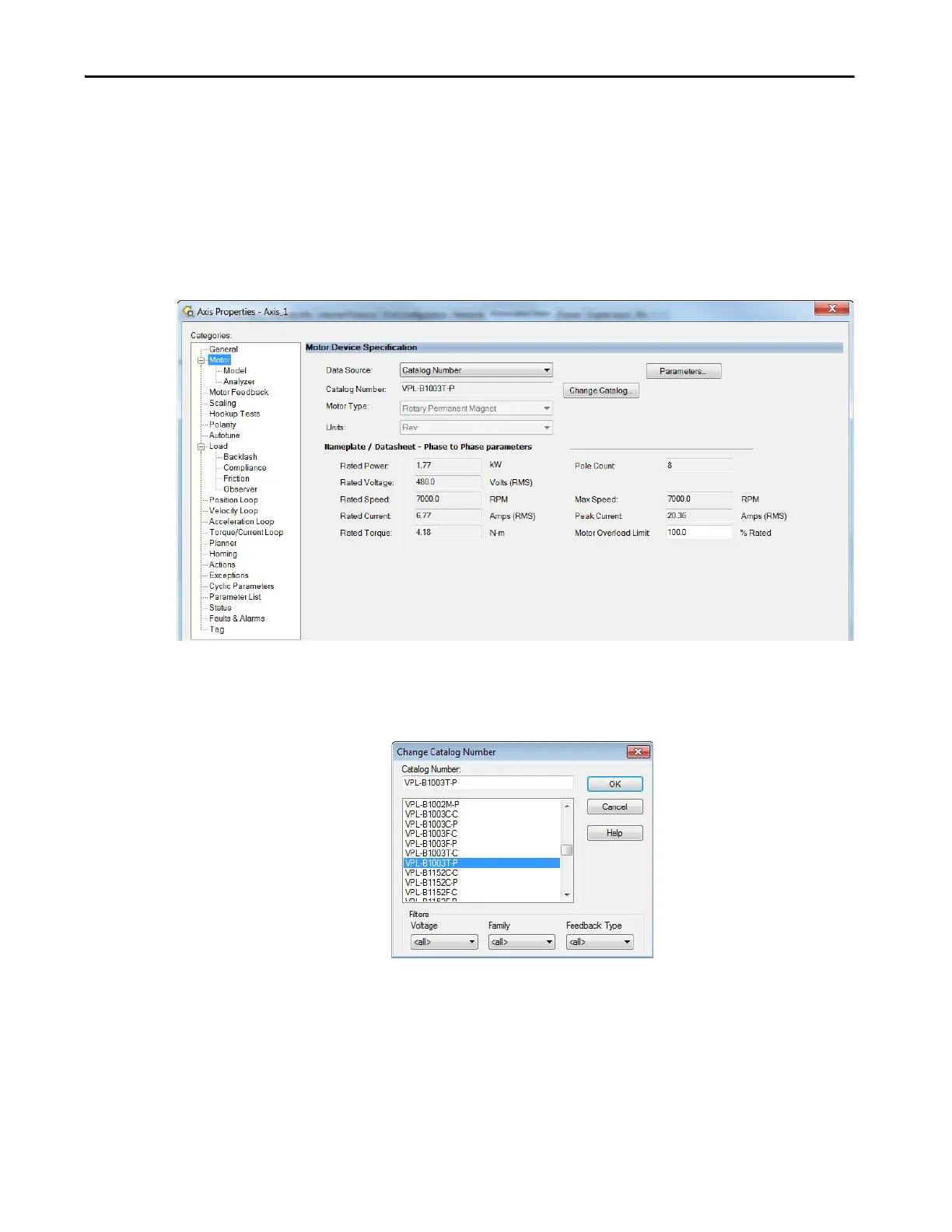

The Motor Device Specification dialog box appears.
7. From the Data Source pull-down menu, choose Catalog Number.
8. Click Change Catalog.
The Change Catalog Number dialog box appears.
9. Select the motor catalog number appropriate for your application.
To verify the motor catalog number, refer to the motor name plate.
10. Click OK to close the Change Catalog Number dialog box.
11. Click Apply.
Motor data specific to your motor appears in the Nameplate / Datasheet
- Phase to Phase parameters field.
To Next Page
