140 Rockwell Automation Publication 2198-UM001I-EN-P - May 2019

Chapter 6 Configure and Start the Kinetix 5500 Drive System

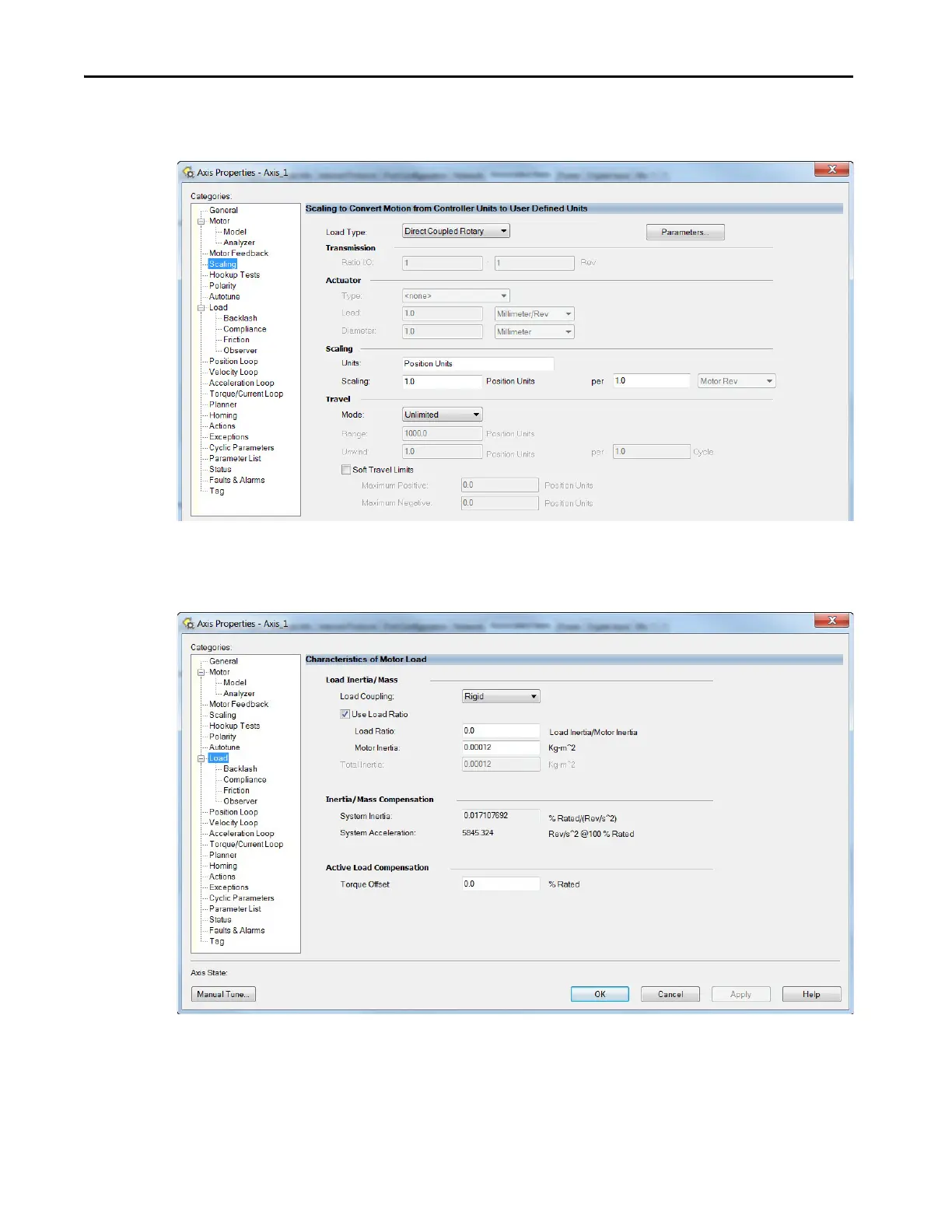

12. Select the Scaling category and edit the default values as appropriate for

your application.

13. Click Apply, if you make changes.

14. Select the Load category and edit the default values as appropriate for

your application.

15. Click Apply, if you make changes.

16. Select the Actions category.

Default Chapter3
