Chapter 6 How to Operate Sampling Scope
6-4
MP2110A-021 Dual Electrical Scope does not display Amplitude O/E but
Amplitude.
When MP2110A-054 Clock Recovery (Electrical/Optical) and
MP2110A-055 26G/53Gbaud Clock Recovery (SM Optical) are not
installed, not Time/CRU but Time is displayed.
When Channel Math in Amplitude O/E dialog box is On, Scale/Offset
cannot be operated.
Trace switch buttons
Set the trace(s) to display on the graph and the channel to control
(hereinafter, active channel).
When the color of the trace button is gray, the trace is not displayed on
the graph.

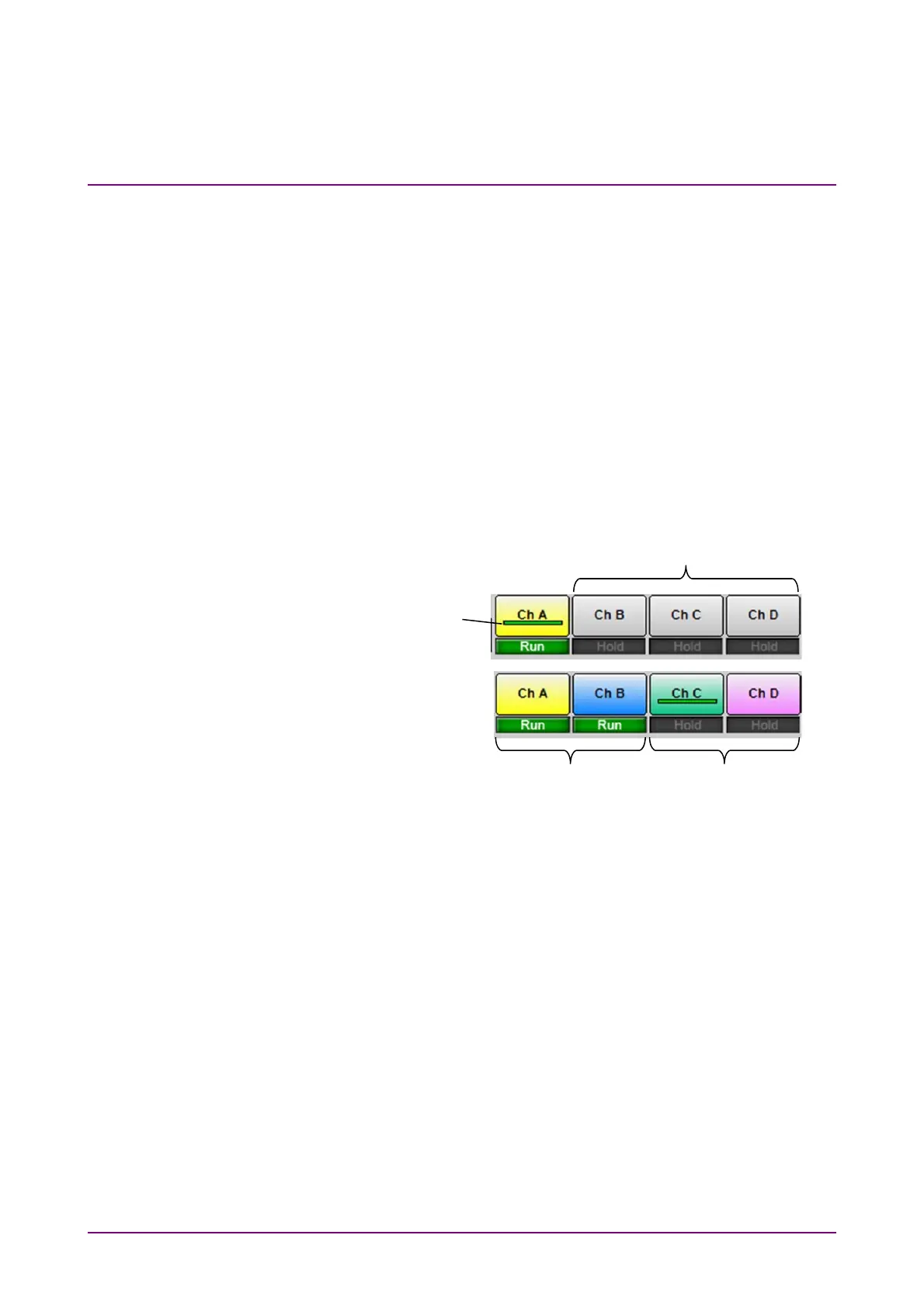

Figure 6.2.1-2 Trace Switch Buttons
Active channel
indicator
Trace graphs are not displayed.
Sampling in progress Sampling stopped
