6.2 Explanation of Windows
6-41
6
How to Operate Sampling Scope
When Sampling Mode of the Setup dialog box is Advanced Jitter, the
Advanced tab is displayed in the Jitter Measure dialog box.
When Sampling Mode of the Setup dialog box is Eye, the settings on the
Advanced tab can be configured for each channel.

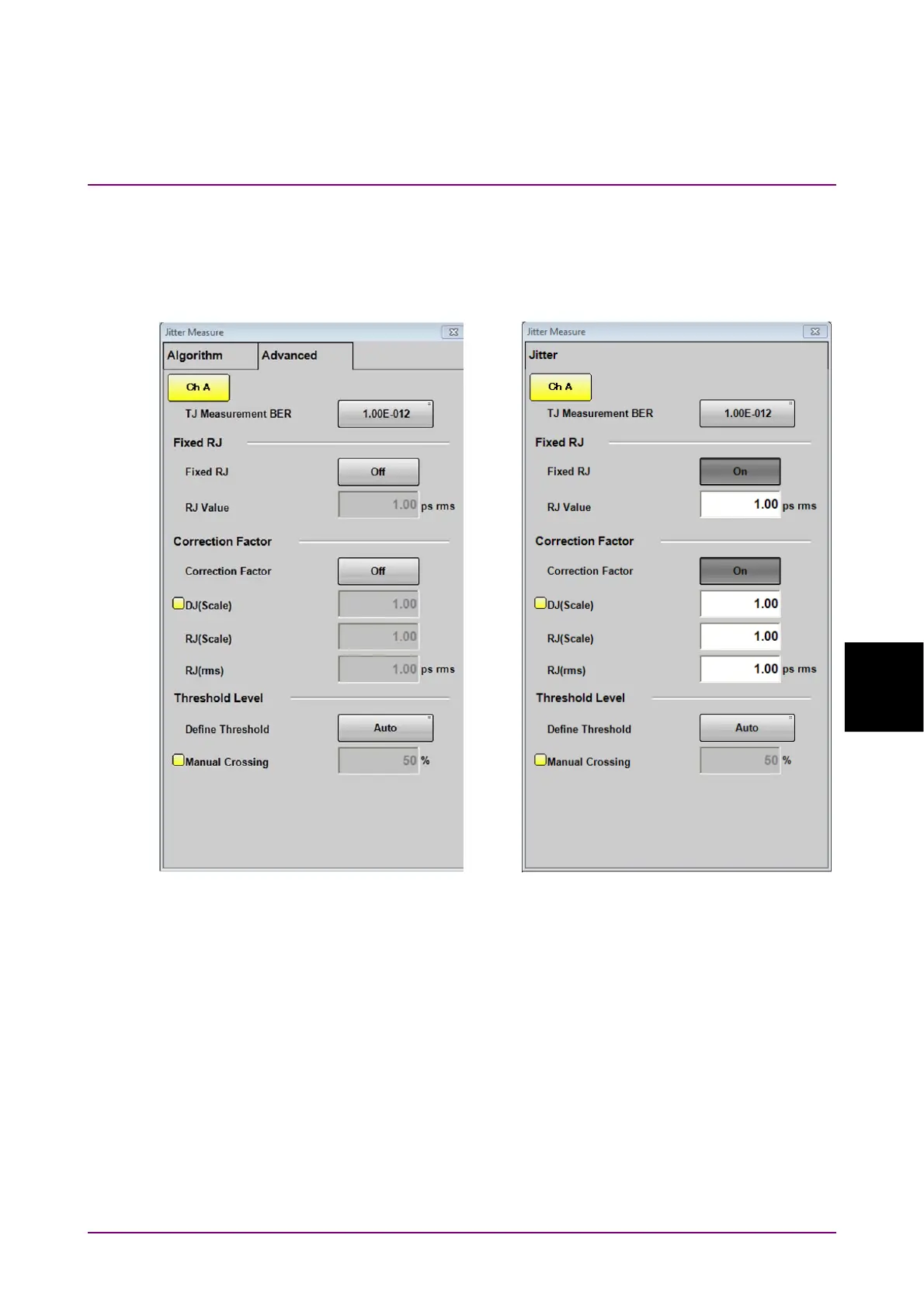

Figure 6.2.4-8 Jitter Measure Dialog Box - Advanced Tab
Advanced Jitter
Eye
