Chapter 6 How to Operate Sampling Scope
6-100

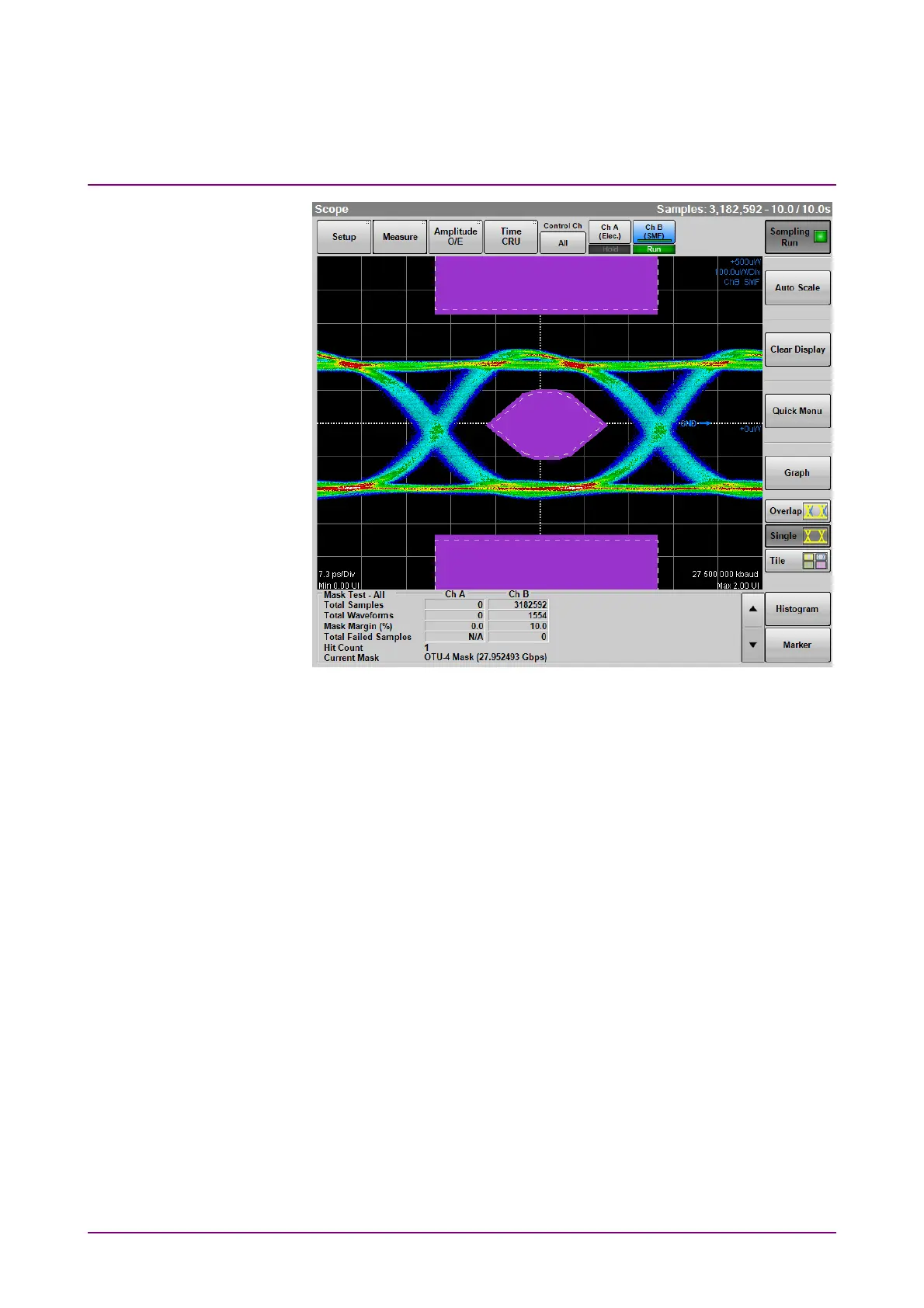

Figure 6.9.2-2 Mask Test Example
The following values are displayed in the measurement result:
Total Samples: Total data count displayed on the screen
Total Waveforms: Total waveform count displayed on the
screen
Mask Margin: Mask Margin measurement results or
settings
Hit Count or Hit Ratio: Threshold set for Mask Margin
measurement
Total Failed Samples: Total data count within three mask areas
Top Mask Failed Samples: Data count in top mask area
Center Mask Failed Samples: Data count in center mask area
Bottom Mask Failed Samples: Data count in bottom mask area
Current Mask: Present mask name
