Chapter 6 How to Operate Sampling Scope
6-122
To save measurement condition or measurement result
1. Click Save at the system menu.
2. Click Scope.
3. When saving the measurement condition, click Setting.
When saving the measurement result, click Result.
4. Input the file name.
5. Click OK or press the rotary knob.
The measurement condition file is saved in the following folder.
The extension for saved files is WFS.
C:\Users\Public\Documents\Anritsu\MX210000A\UserData\Setting
The measurement result file is saved in the following folder.
The extension of the measurement data file is CSV and TXT.
C:\Users\Public\Documents\Anritsu\MX210000A\UserData\Result\CSV
C:\Users\Public\Documents\Anritsu\MX210000A\UserData\Result\TXT
The measurement results file saves the number of samples per screen
pixel.

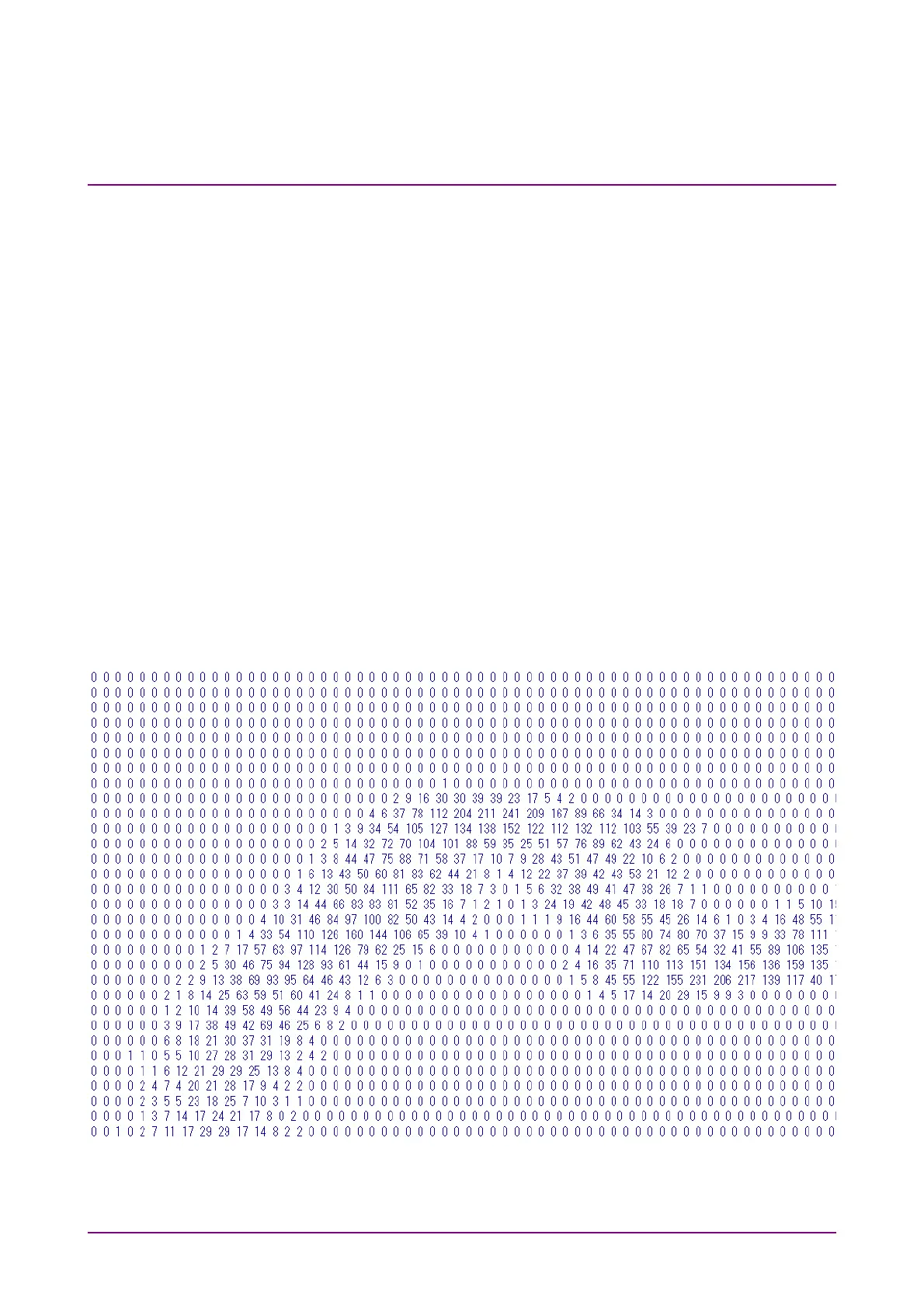

Figure 6.9.9-1 File Example of Screen Data
