AUBO i5 - Network Tab

TEACH PENDANT USER INTERFACE V4.3
Page 110
©2015-2018 AUBO.All rights reserved.
Network Tab

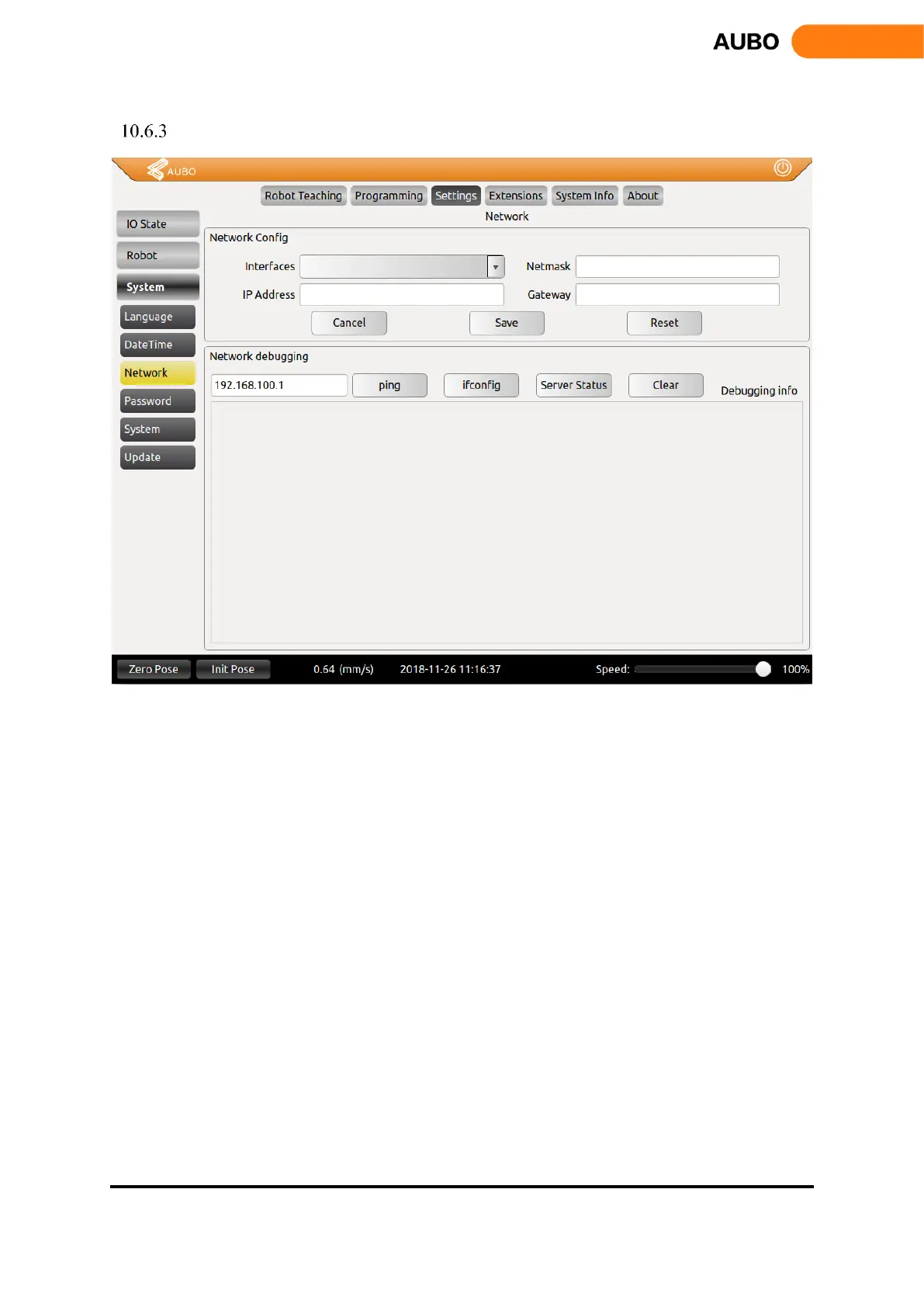

Figure 10.40 Network Tab
 Network Tab is used for network settings and is controlled by third party interface.
 Specified name of the NIC and its IP Address, Netmask and Gateway can be configured in this
interface. The network IP address of the external device should in the same network segment with the
IP address of the robot.
 Restart the AUBOPE system after saving the configuration
