Page 53

THE I SERIES STANDARD CONTROL BOX V4.3

External Emergency Stop Input

In the case that there is required to use one or more external emergency stop buttons, users can connect those

devices as below.

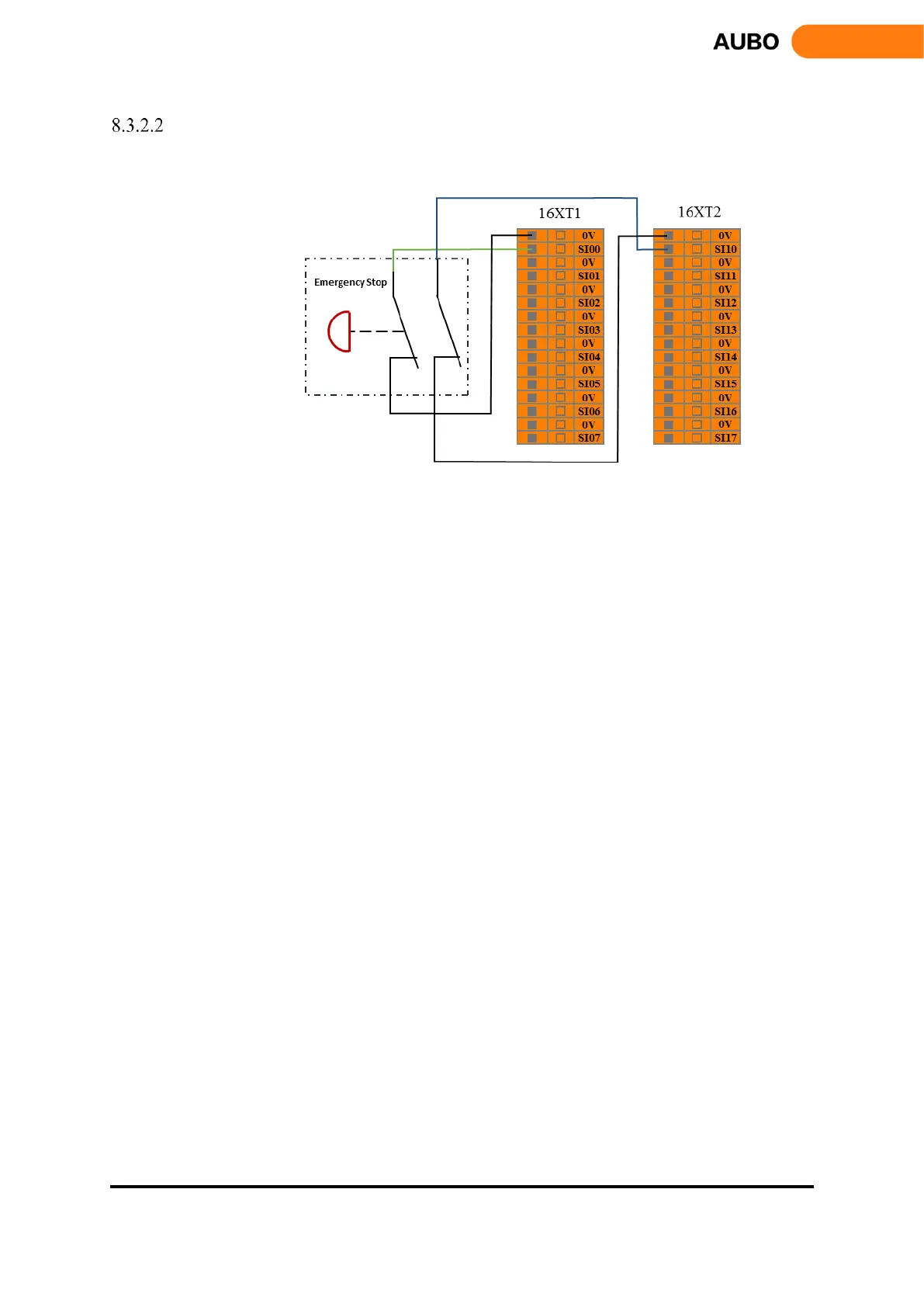

Figure 8.6 External emergency stop input
