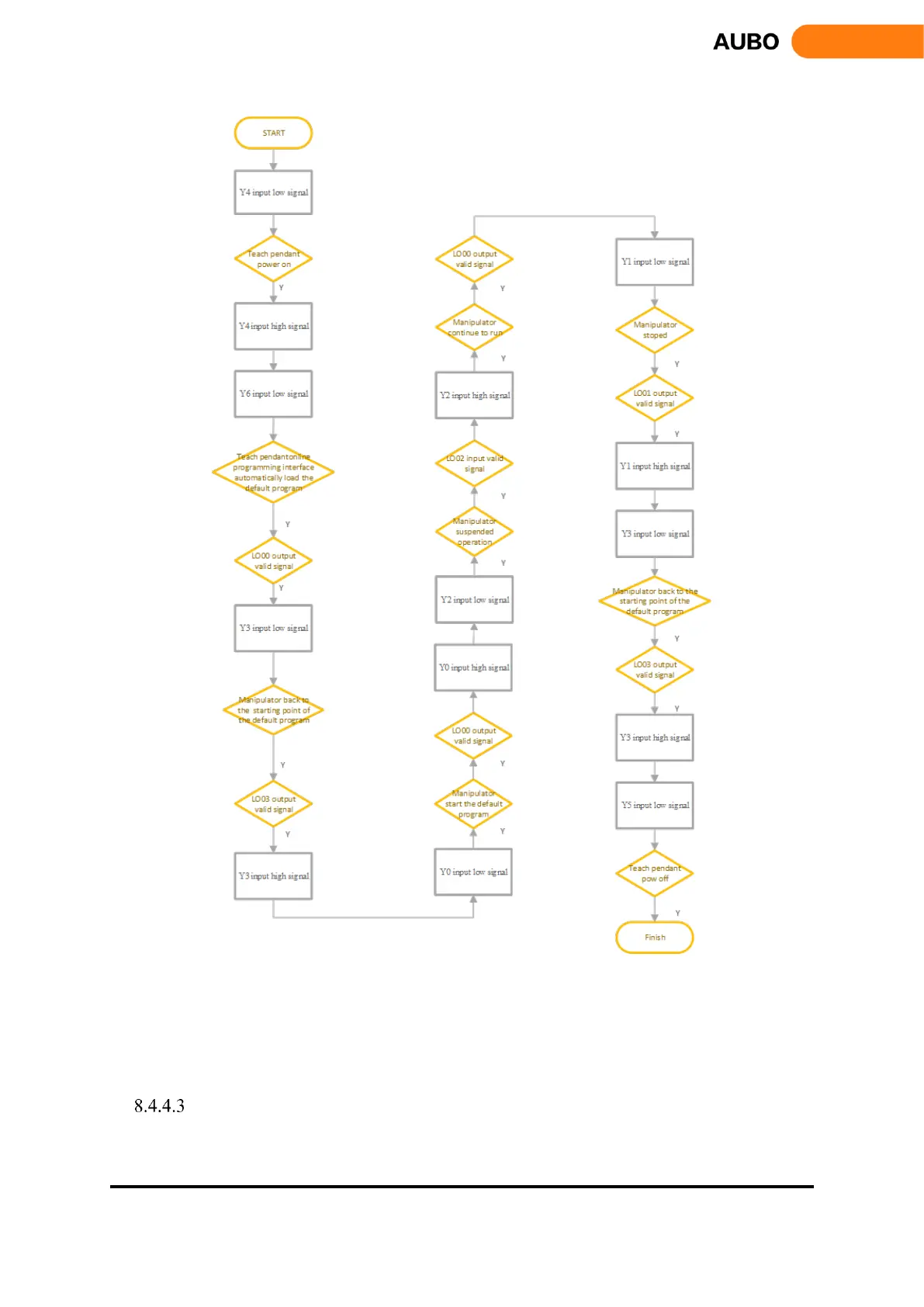

Figure 8.36 linkage mode use showcase
Under linkage mode, if the teach pendant is not needed, after setup the default program successfully, the user
can switch off the teach pendant enable in the control box. After “TEACH PENDANT ENABLE” is out, it
is ok to remove the wire from the teach pendant.
Teach Pendant Enable Switch
This works only in Linkage mode. Push the switch on to enter the teach pendant enable mode (default setting).
If user wants to remove the teach pendant, user can push the switch down to enter the teach pendant disable
To Next Page
