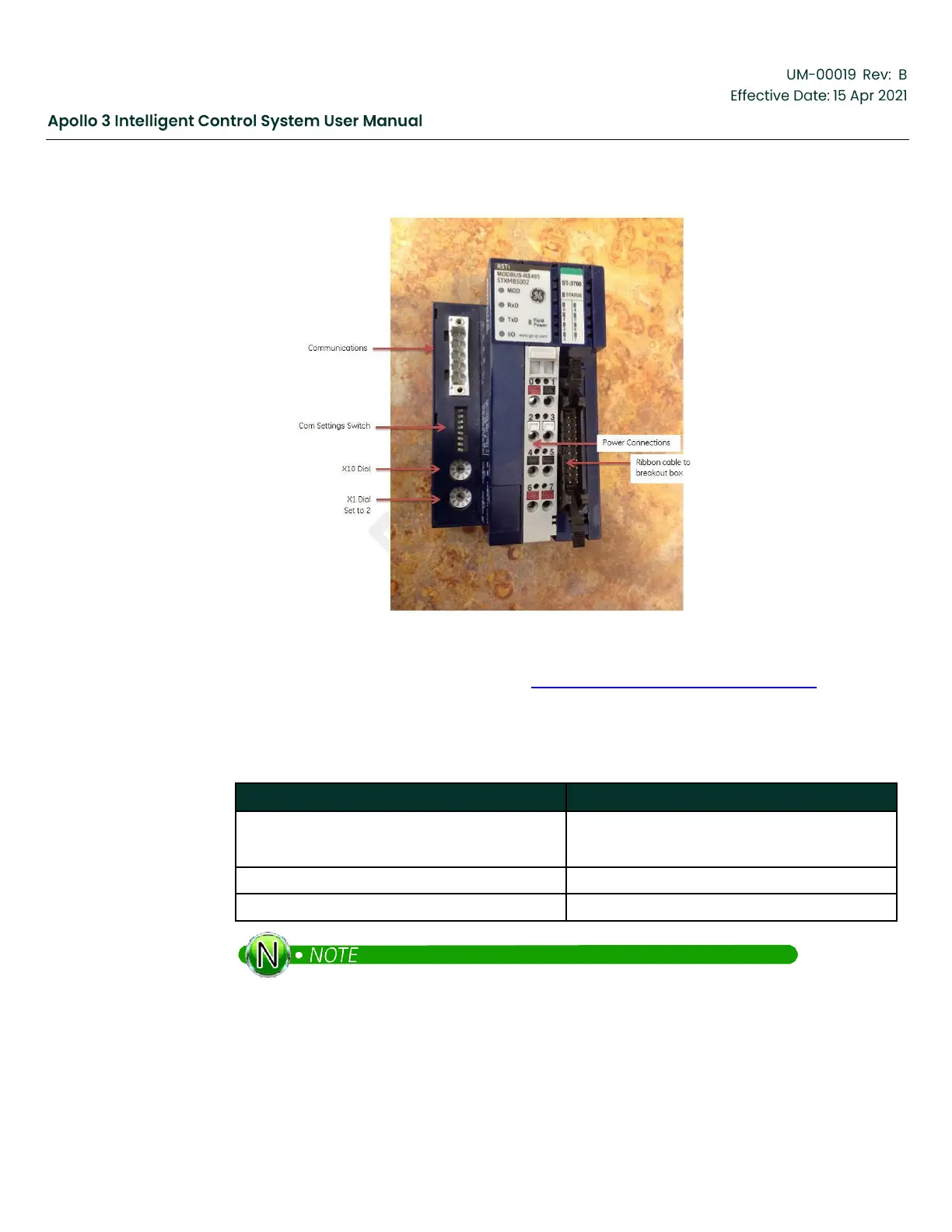

Figure 8: 8 Channel RTD Setup
A typical 8 channel RTD setup is shown in Figure 8: 8 Channel RTD Setup, page 37. The
breakout box is not shown.
Settings:
Table 11: DIP Switch Settings
Description
Setting
Comm Settings Switch
Switch 1-4 ON
Switch 5-8 OFF
X10 Dial
0
X1 Dial
2
The DIP switch settings above define the following configuration:
• 115,200 baud, Watchdog On, N81, Modbus RTU mode.
• Modbus address is 2.
