1. Safety
be installed nearby the p rojector and be easily accessible, or a re adily accessible general disconnect device shall be incorporated
in the fixed wiring.
Laser light shows can be requested via the F DA online eSubmitter portal or via FDA Form F DA Form 3147 referencing to Barco’s
variance approval 2016 -V-0144.
RA
TH
PR
RZ
HD
SW
1m
SW
SW
SW
HD
SH
RA TH
RZ
SH

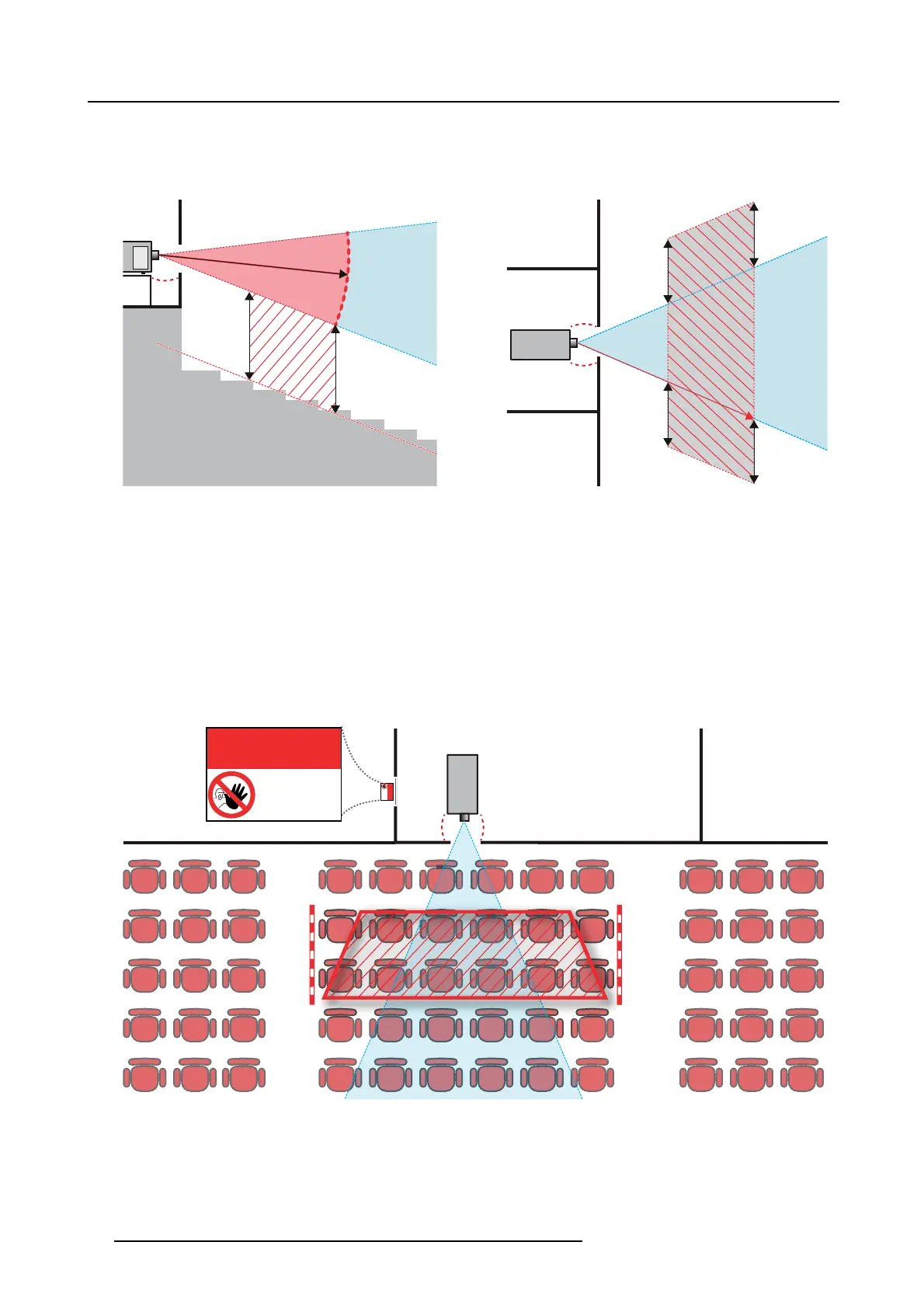

(B) TOP VIEW(A) SIDE VIEW
Image 1-1
ASideview.
B Top view.
RA Restricted Access location (boot area of projector).
PR Projector.
TH Theater.
RZ Restriction Zone in the theater.
SH Separation Height.
SW Separation W idth.
Based on national requirem ents, no per son is allowed to enter the projected beam within the zone between the projection lens and
the related h azard dis tance (HD). This s hall b e physically impossible by creating sufficient separation height or by placing barriers.
The minimum separation height takes into account the surface upon which per sons other than operator, performers or employees
are permitted to stand.
On image 1-2 a typical setup is displayed. It must b e verified if these m inimum requirements are met. If required a restricted zone
(RZ) in the theater mus t b e established. This ca n be done by using physical barrier, like a red rope as illustrated in image 1-2.
The restricted area sticker can be replaced by a sticker w ith only the symbol.
PR
RESTRICTED
AREA
RESTRICTED
AREA
Image 1-2
12 R5906753 DPXK BLP SERIES 20/11/2017
