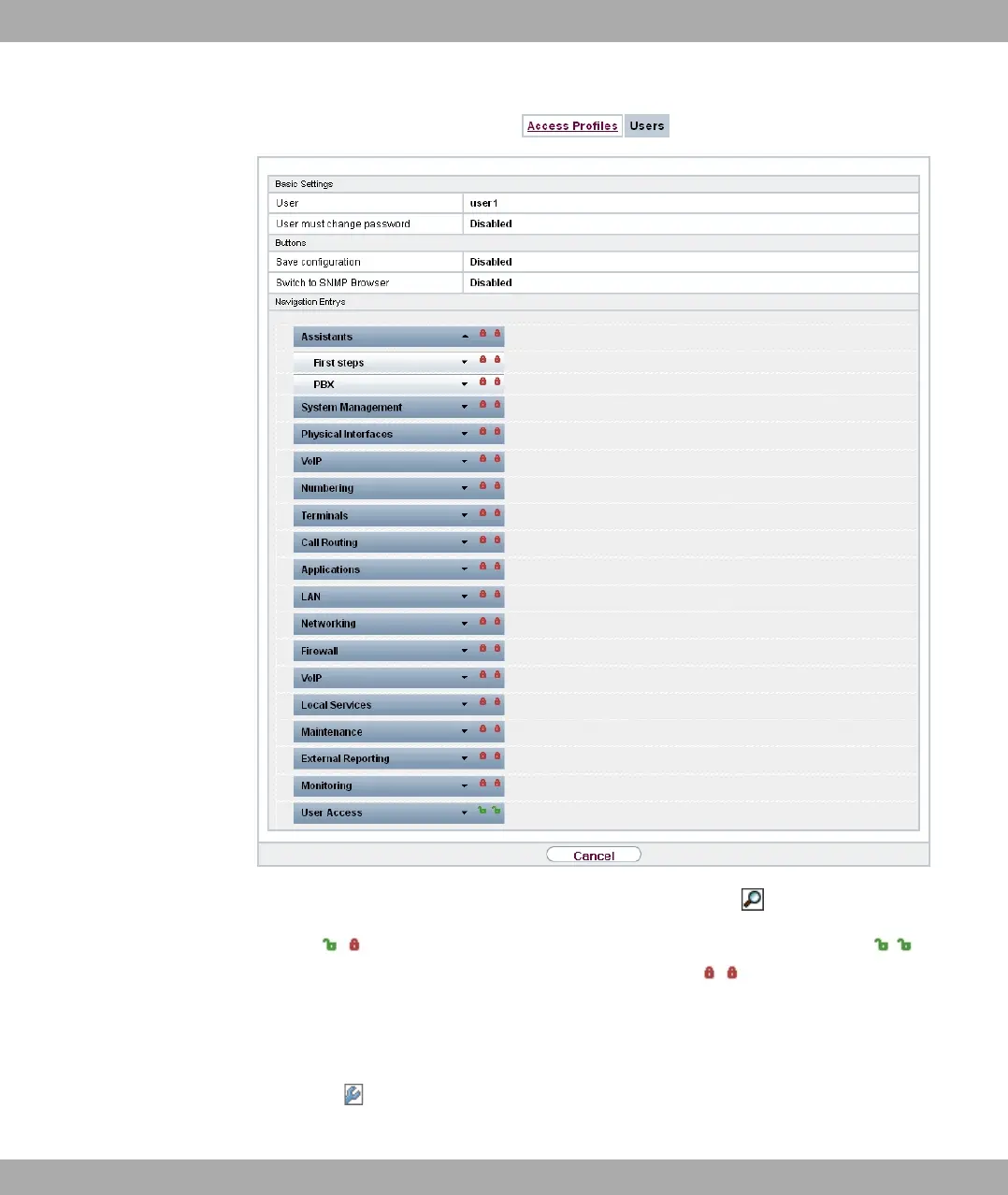

Fig. 42: System Management->Configuration Access->Users->

The icon means that Read-only is permitted. If a row is flagged with the icon

the information is released for reading and writing. The icon indicates blocked

entries.

5.6.2.1 Edit or New

Choose the icon to edit existing entries. Choose the New button to enter additional

users.
